Transfer Case Shield Replacement

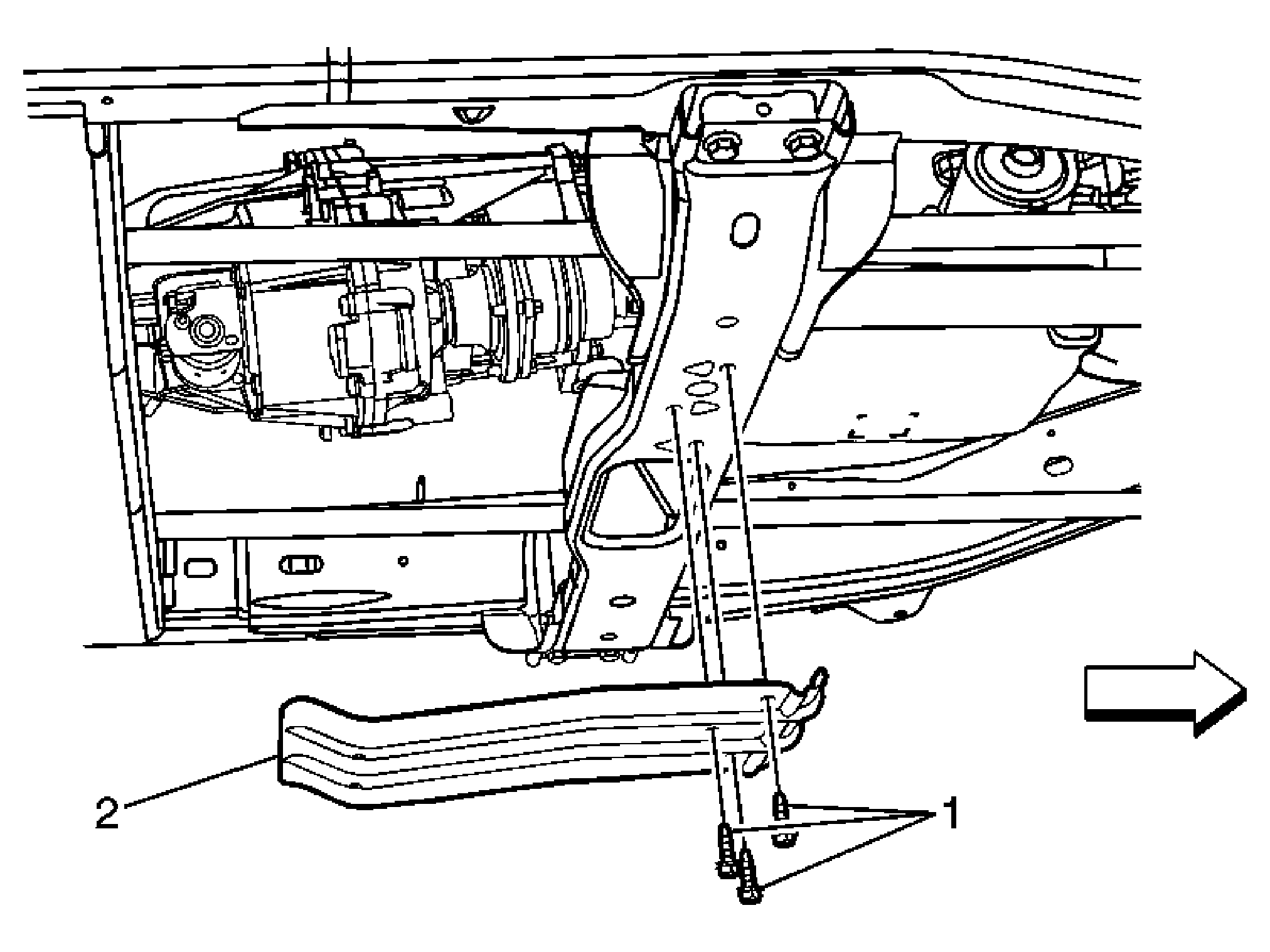

Fig 1: Transfer Case Shield Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Bolt, Transfer Case Shield (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 30 N.m (23 lb ft)
2	Shield, Transfer Case
