Transfer Case Speed Sensor Replacement

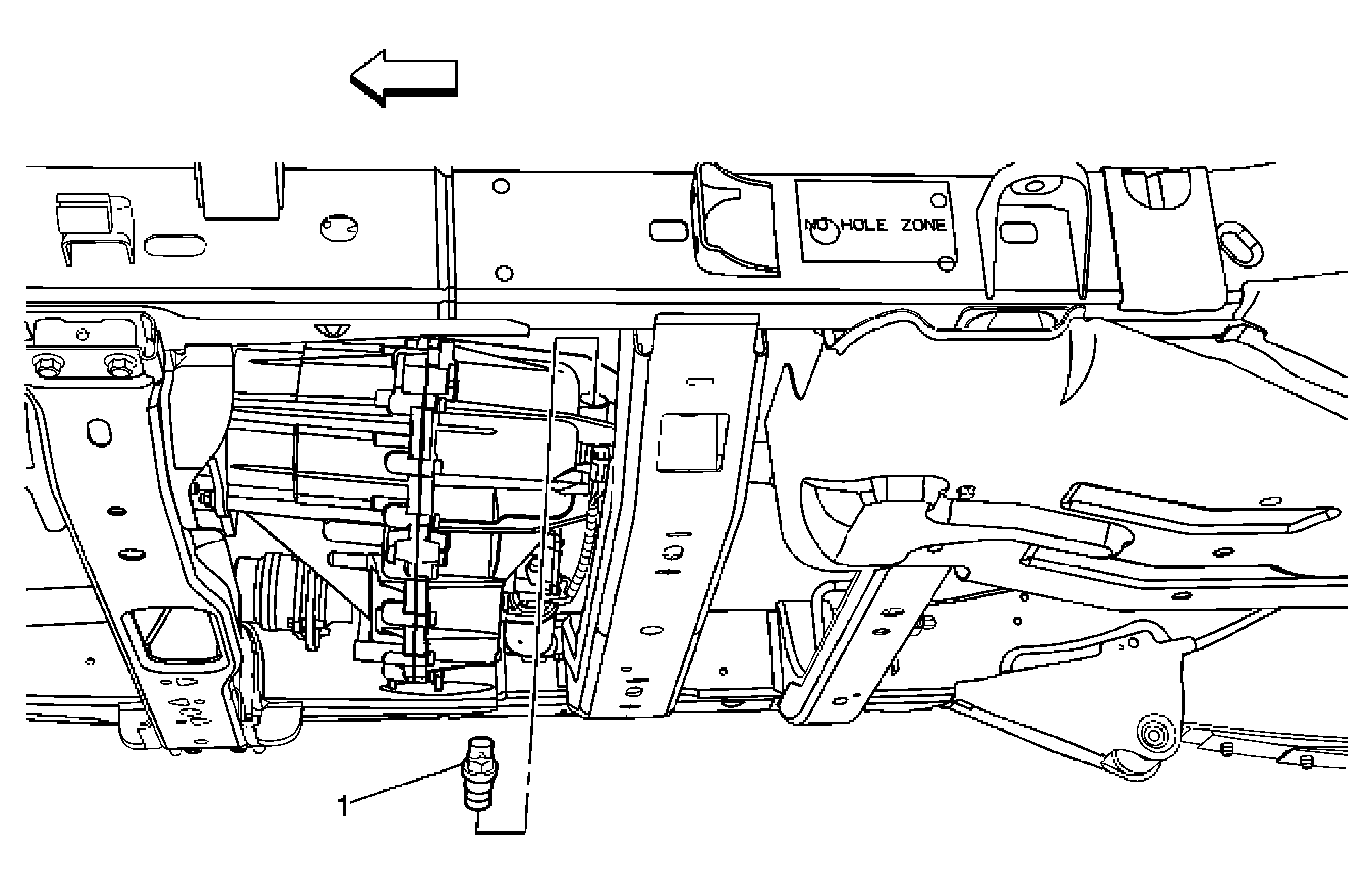

Fig 1: Transfer Case Speed Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
1	Sensor, Speed CAUTION: Refer to Fastener Caution . Tip: Disconnect the electrical connector. Tighten: 17 N.m (13 lb ft)
