Cruise Control Switch: Service and Repair

Cruise Control Release Switch Replacement

Removal Procedure

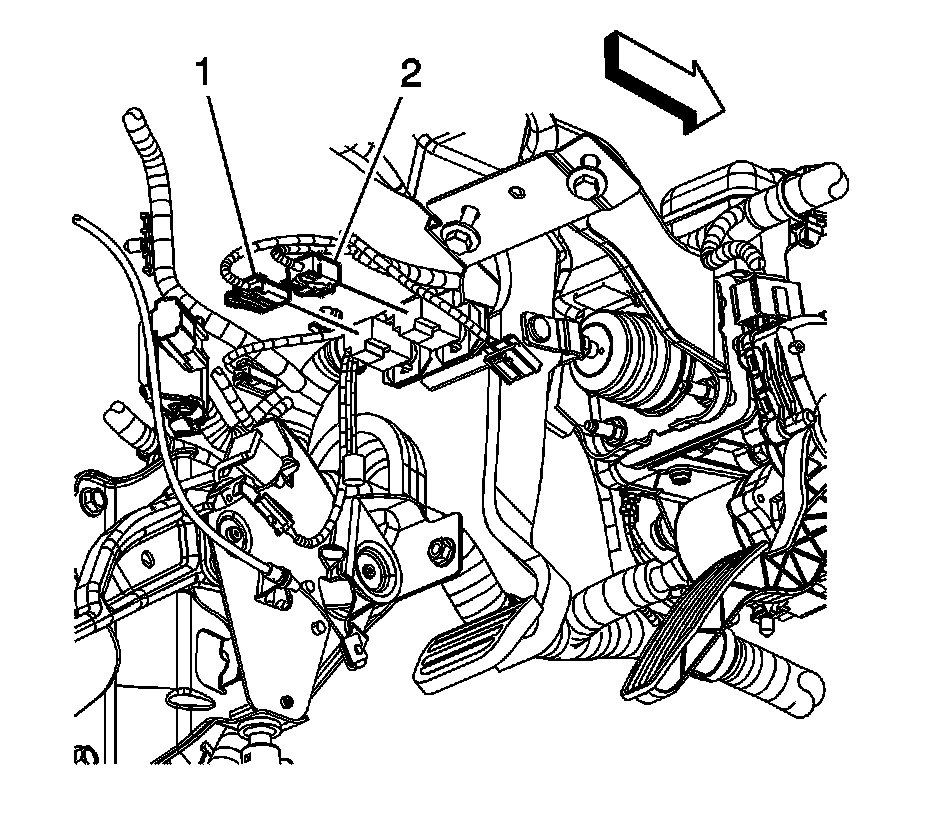

1. Disconnect the cruise control release switch electrical connector (1).

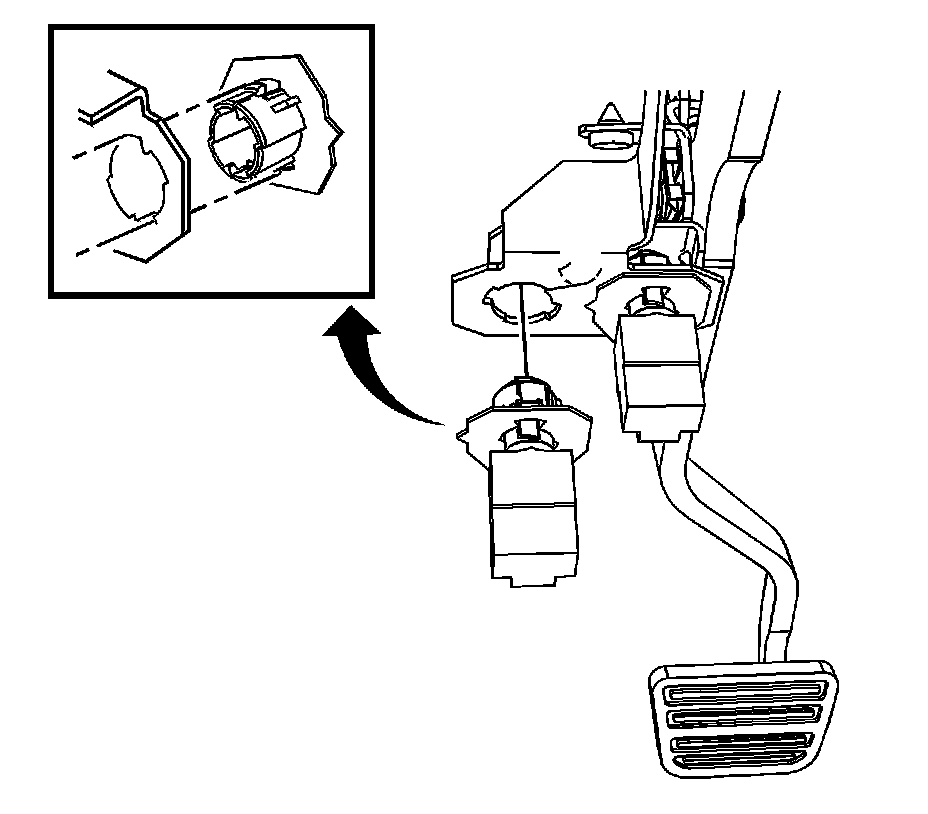

2. Complete the following in order to remove the cruise release switch from the brake pedal bracket:

1. Rotate the switch counterclockwise.
2. Pull the switch from the retainer.
3. Push the locking tabs inward to release the retainer.

Installation Procedure





Adjust the cruise control release switch. Refer to Cruise Release Switch Adjustment (Adjustments).
