Courtesy Lamp




Component Connector End Views

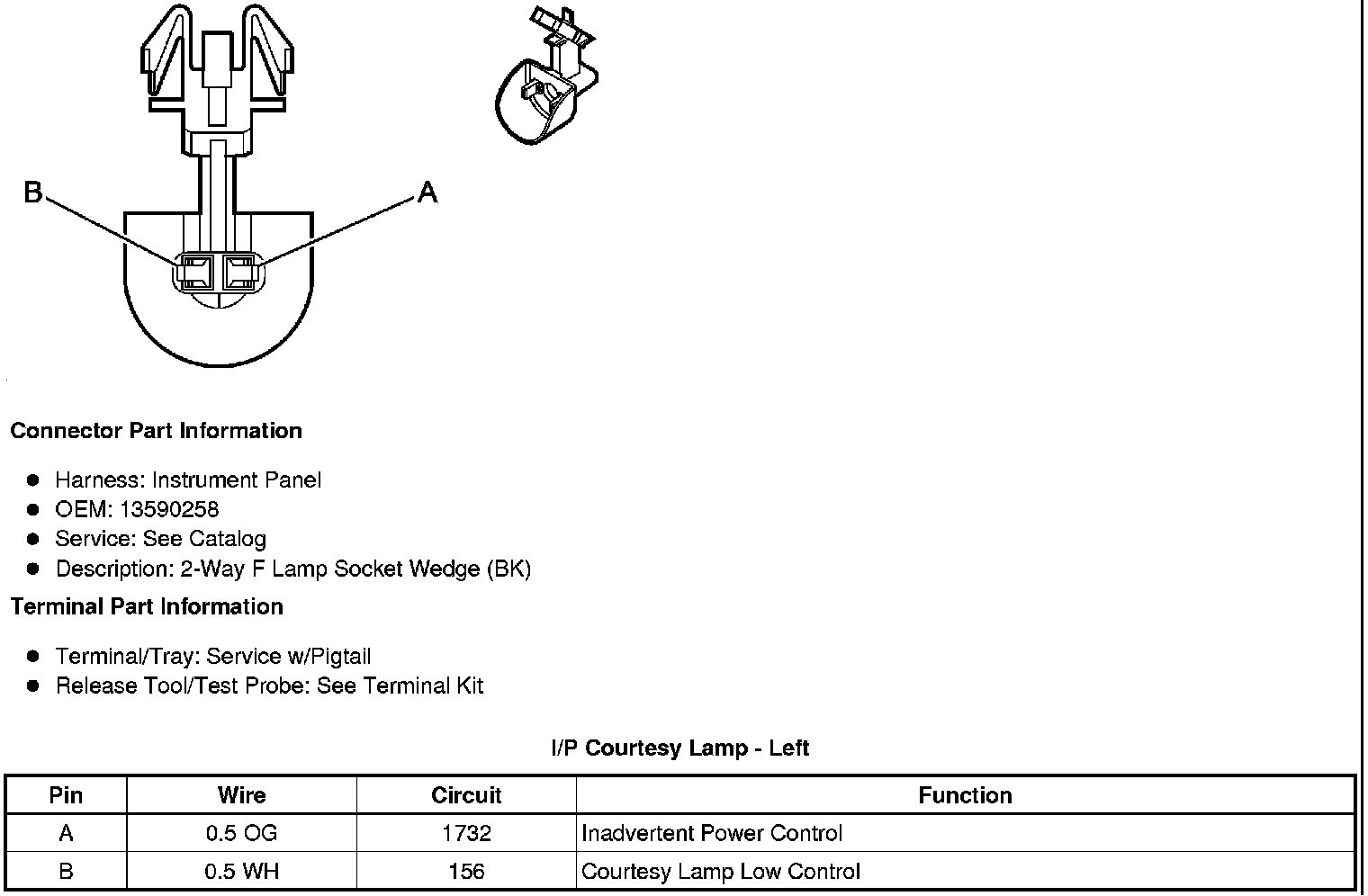

I/P Courtesy Lamp - Left






I/P Courtesy Lamp - Right
