Fuel Injector




Component Connector End Views

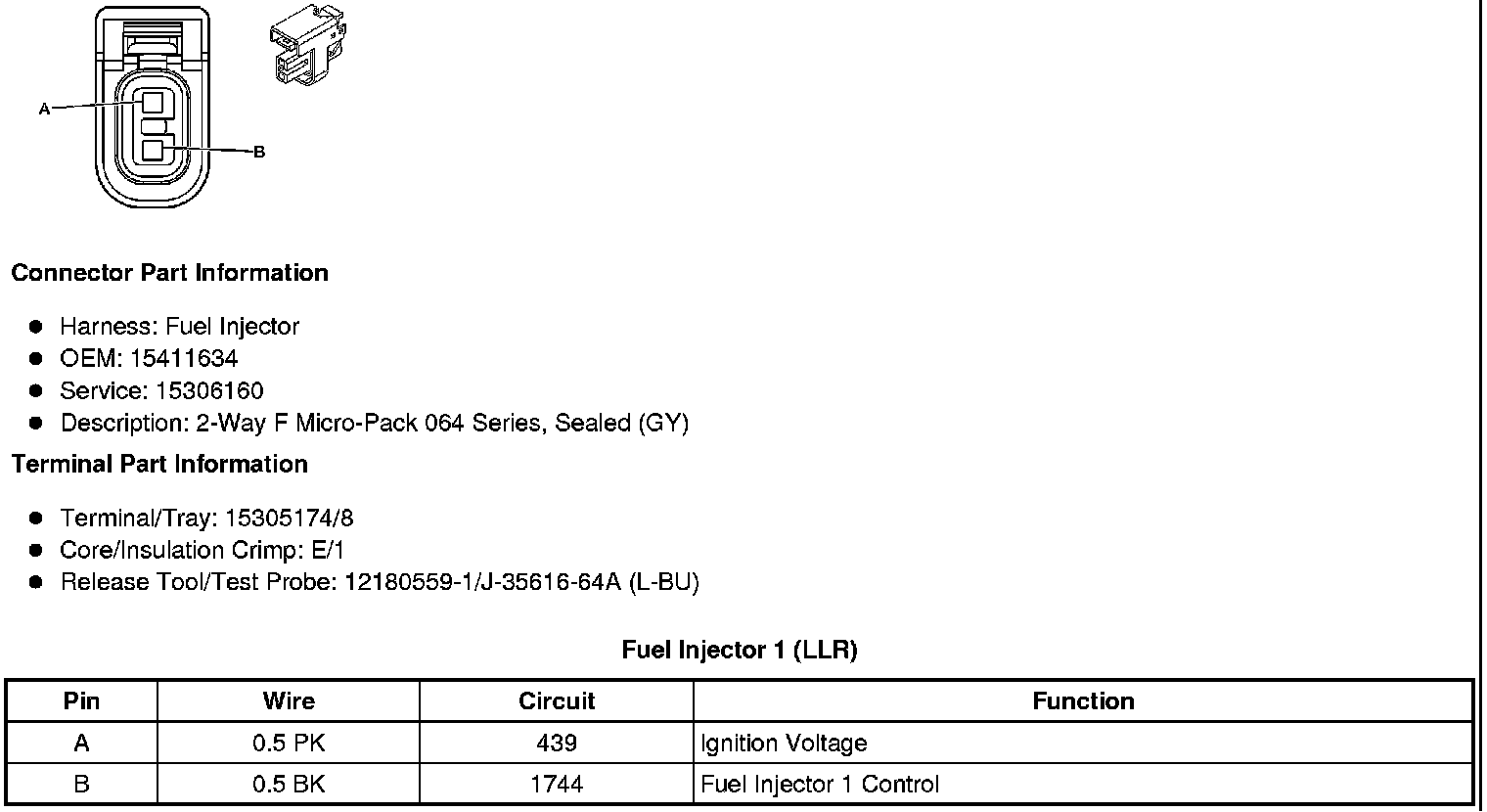

Fuel Injector 1 (LLR)






Fuel Injector 2 (LLR)

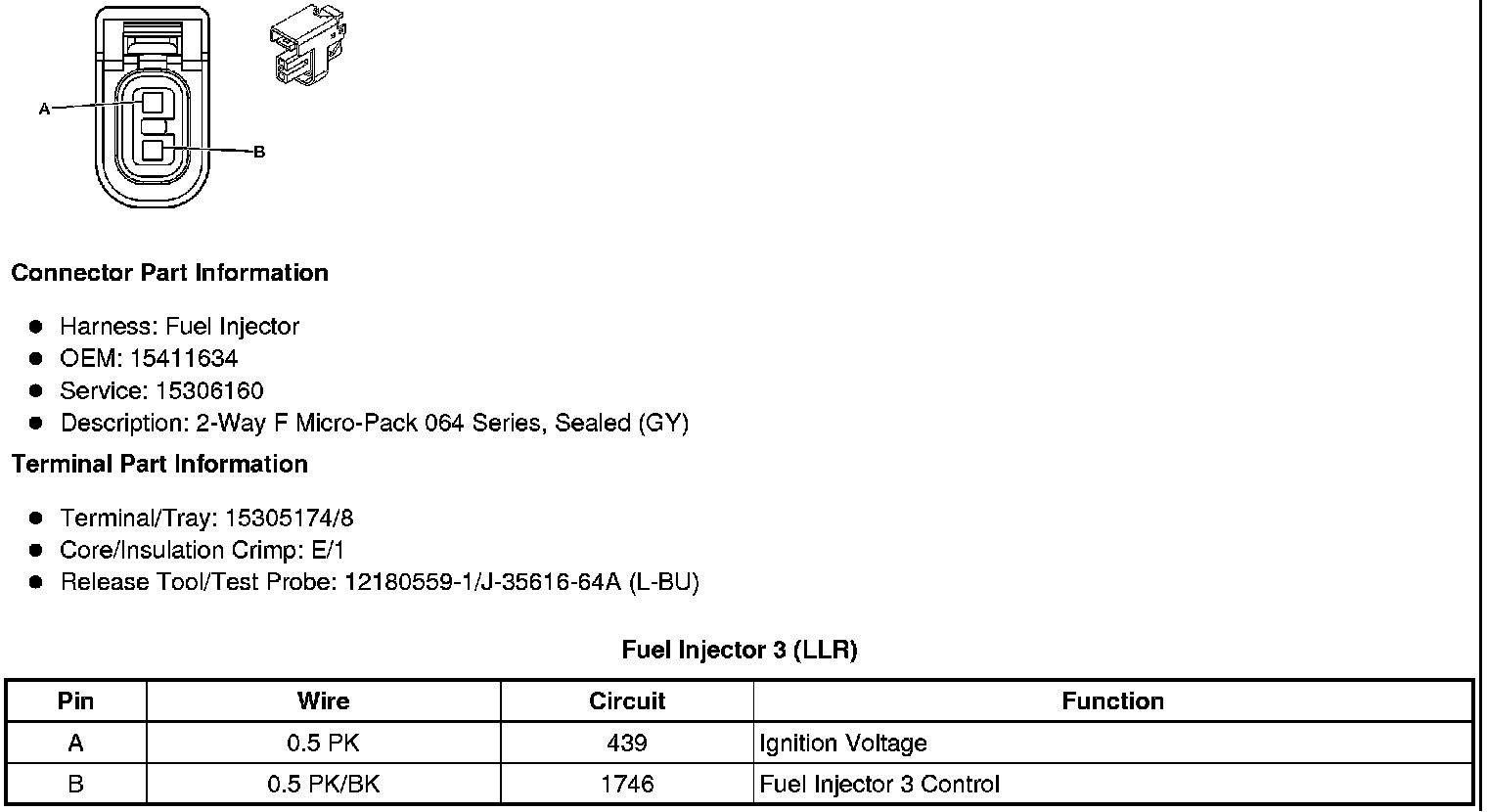

Fuel Injector 3 (LLR)

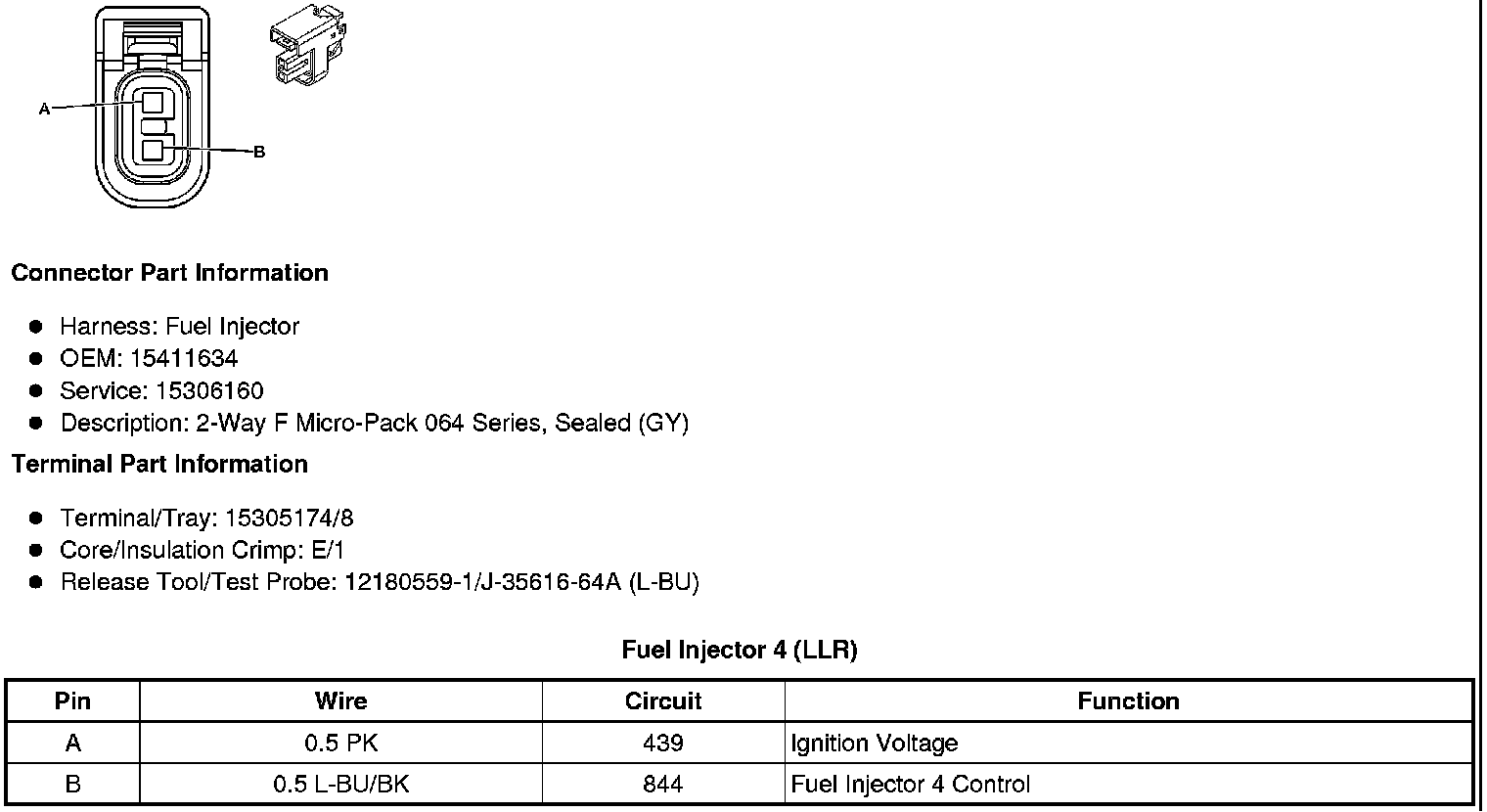

Fuel Injector 4 (LLR)

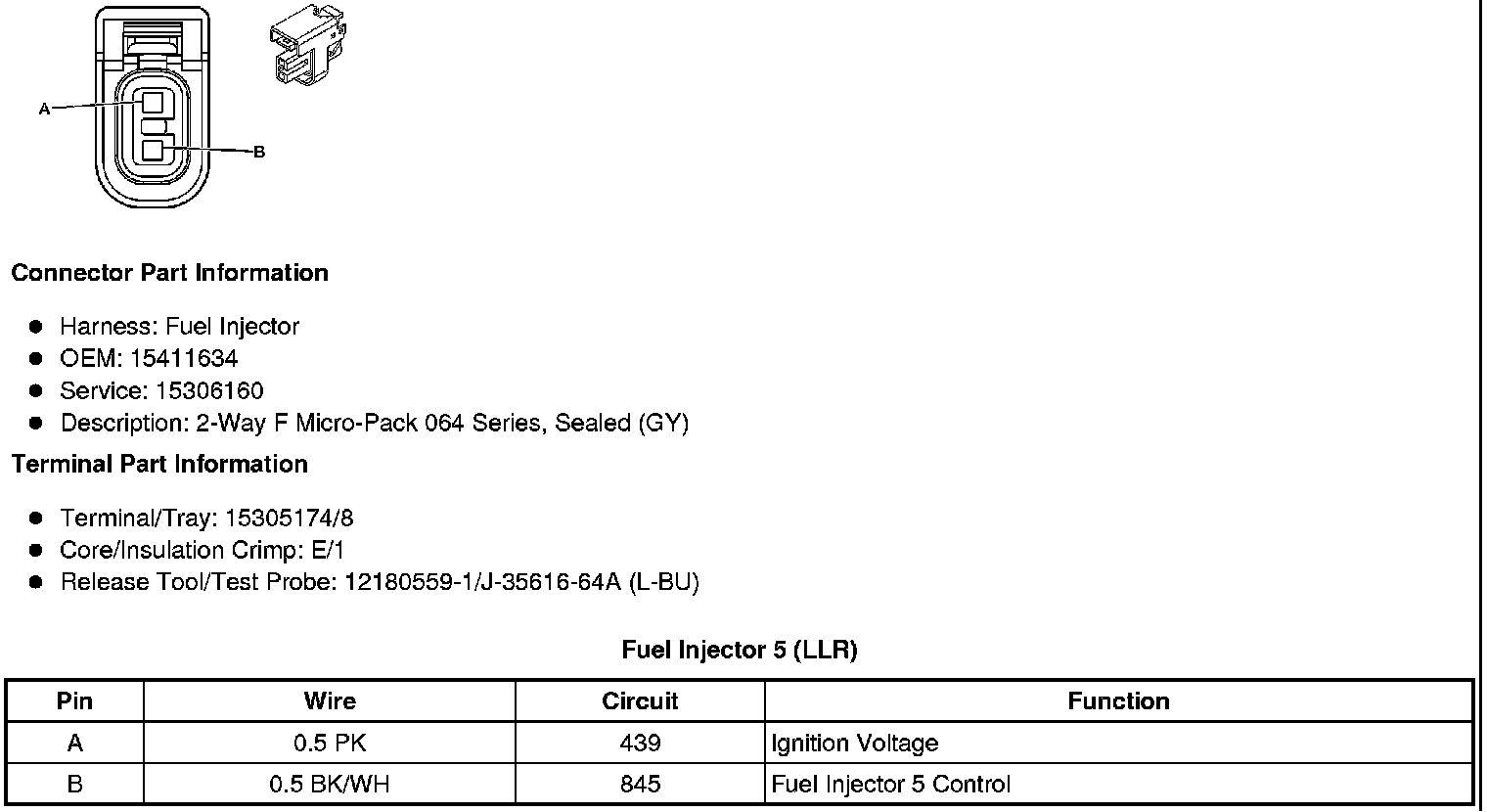

Fuel Injector 5 (LLR)
