Map Light
Component Connector End Views

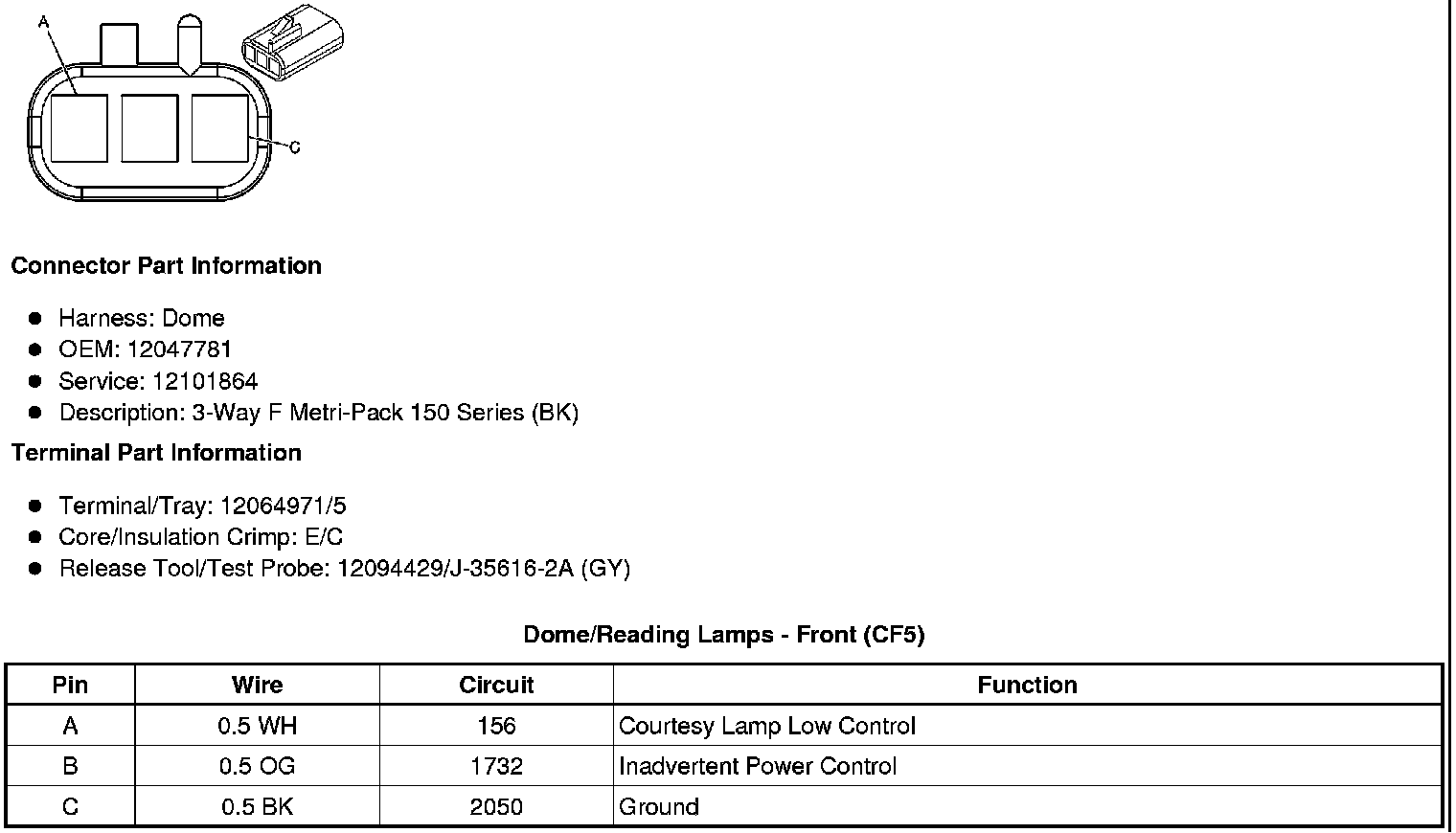

Dome/Reading Lamps - Front (CF5)

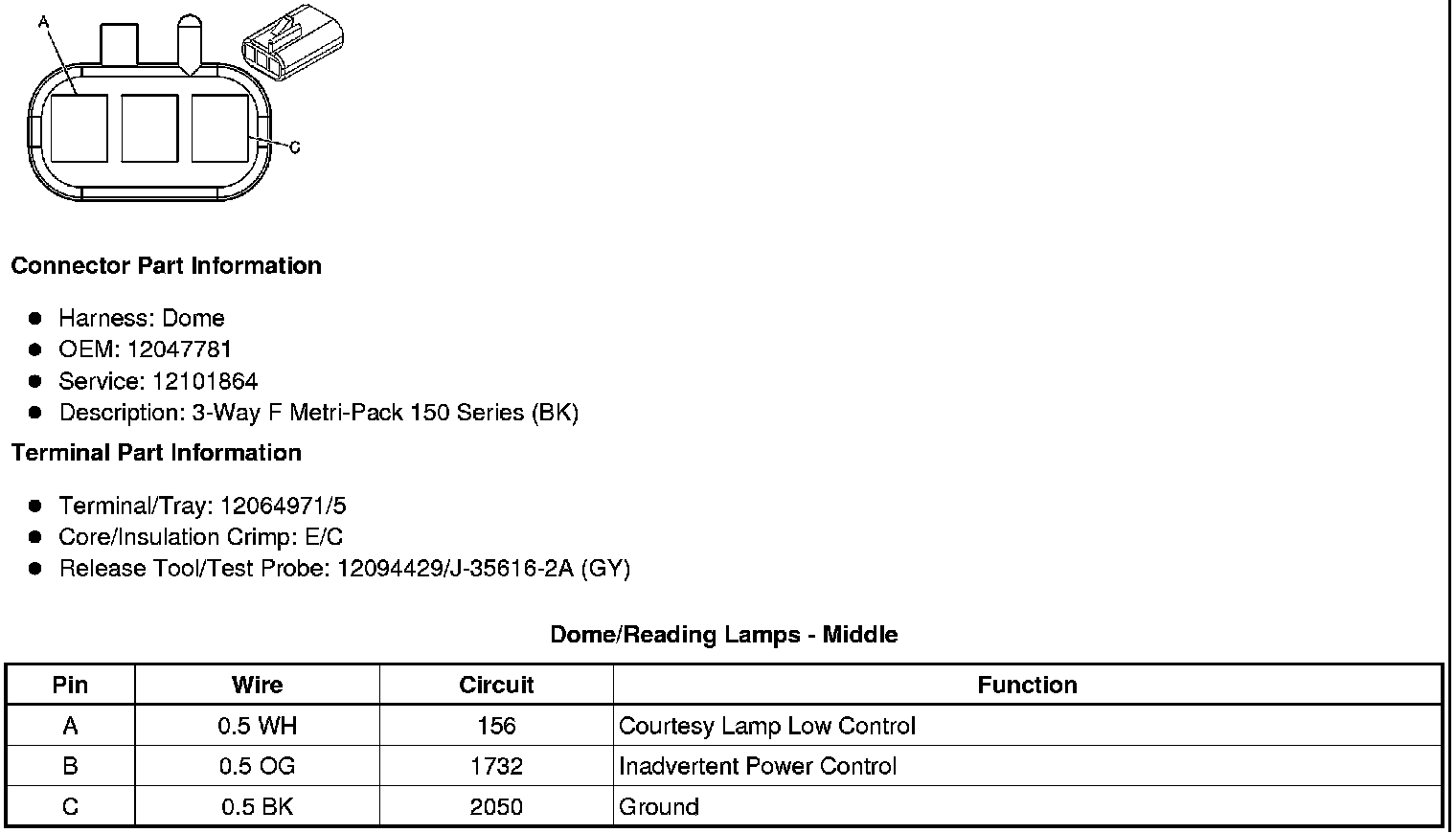

Dome/Reading Lamps - Middle
