Power Seat Switch




Component Connector End Views

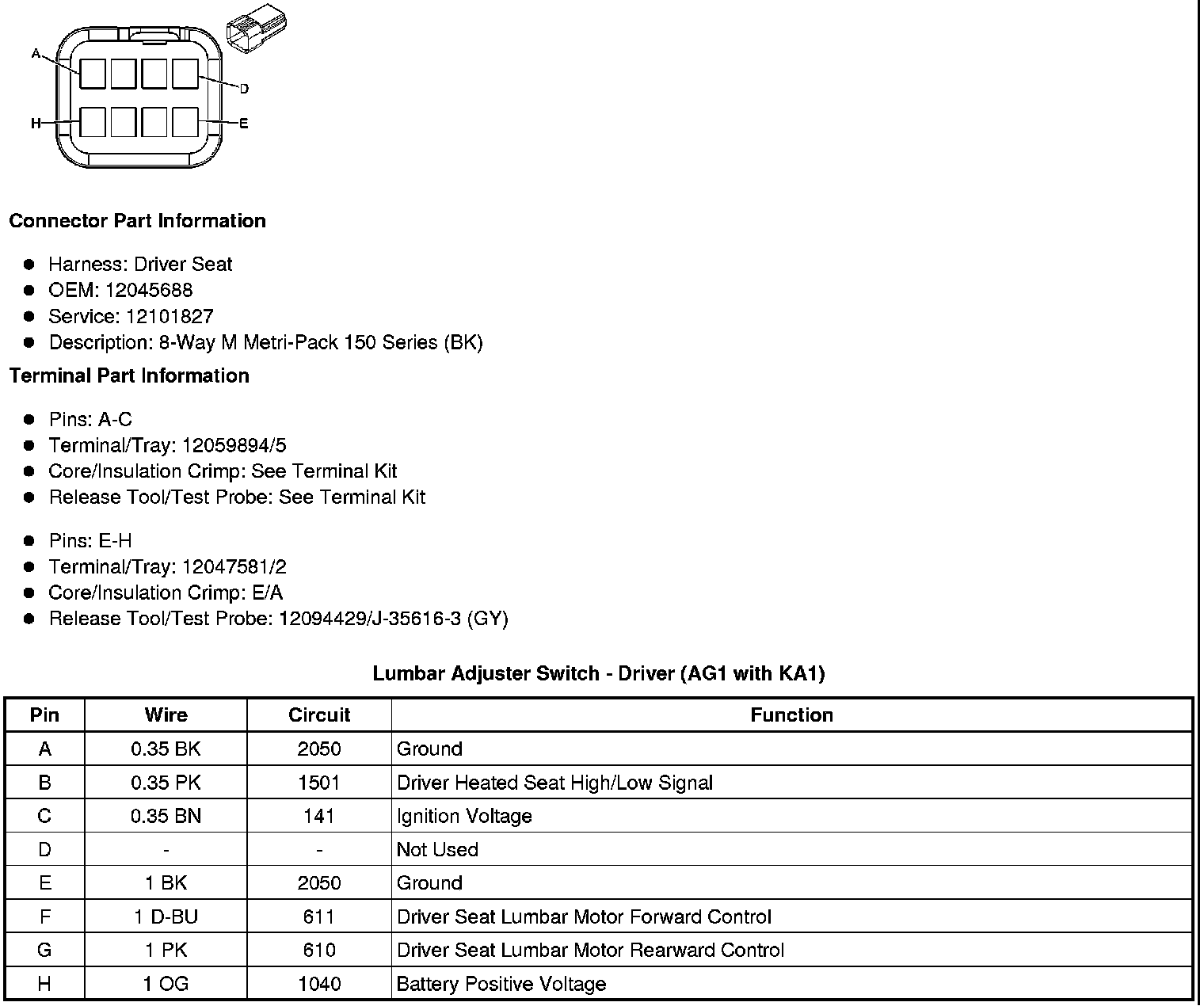

Lumbar Adjuster Switch- Driver (AG1 with KA1)

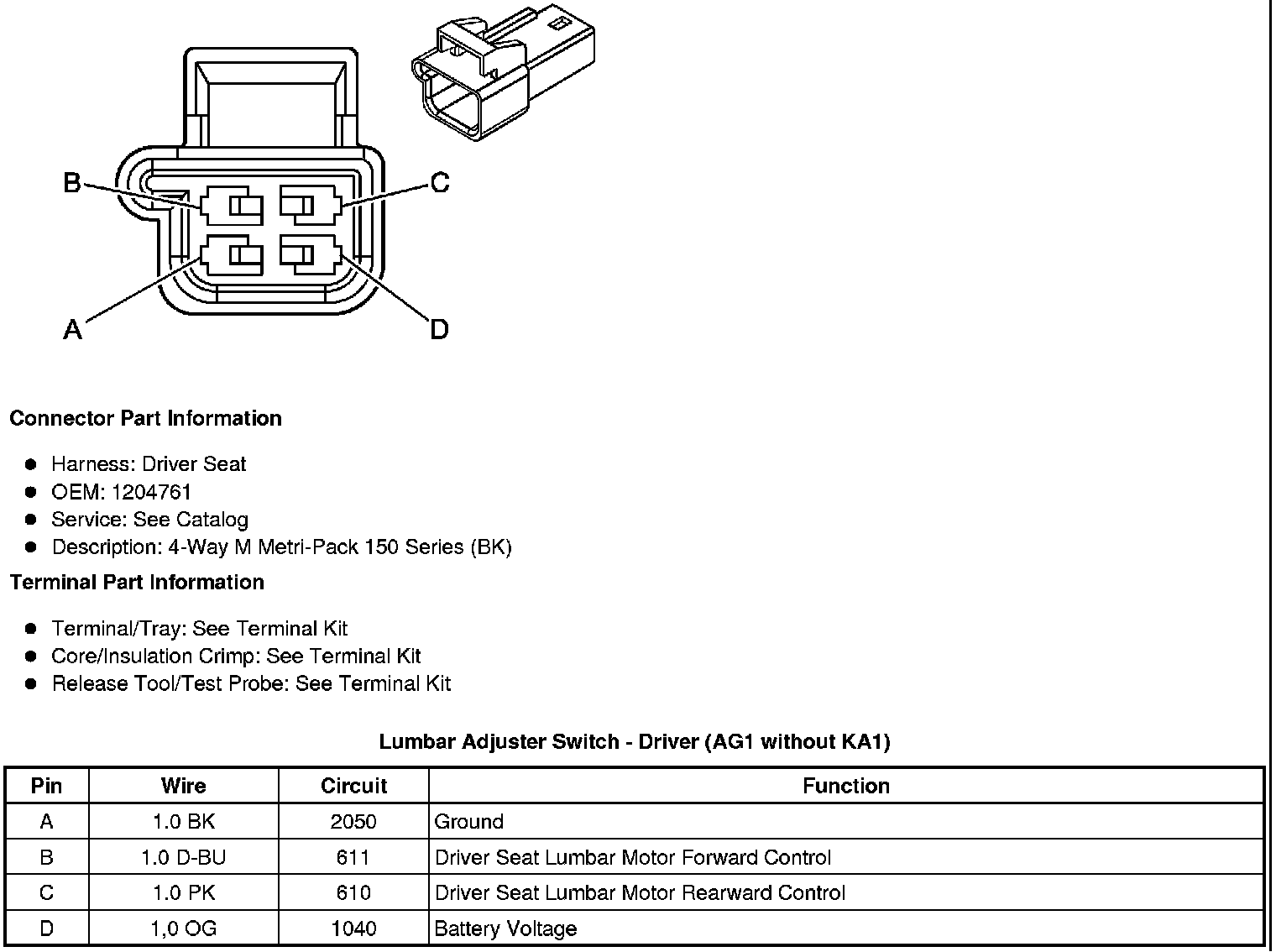

Lumbar Adjuster Switch - Driver (AG1 without KA1)

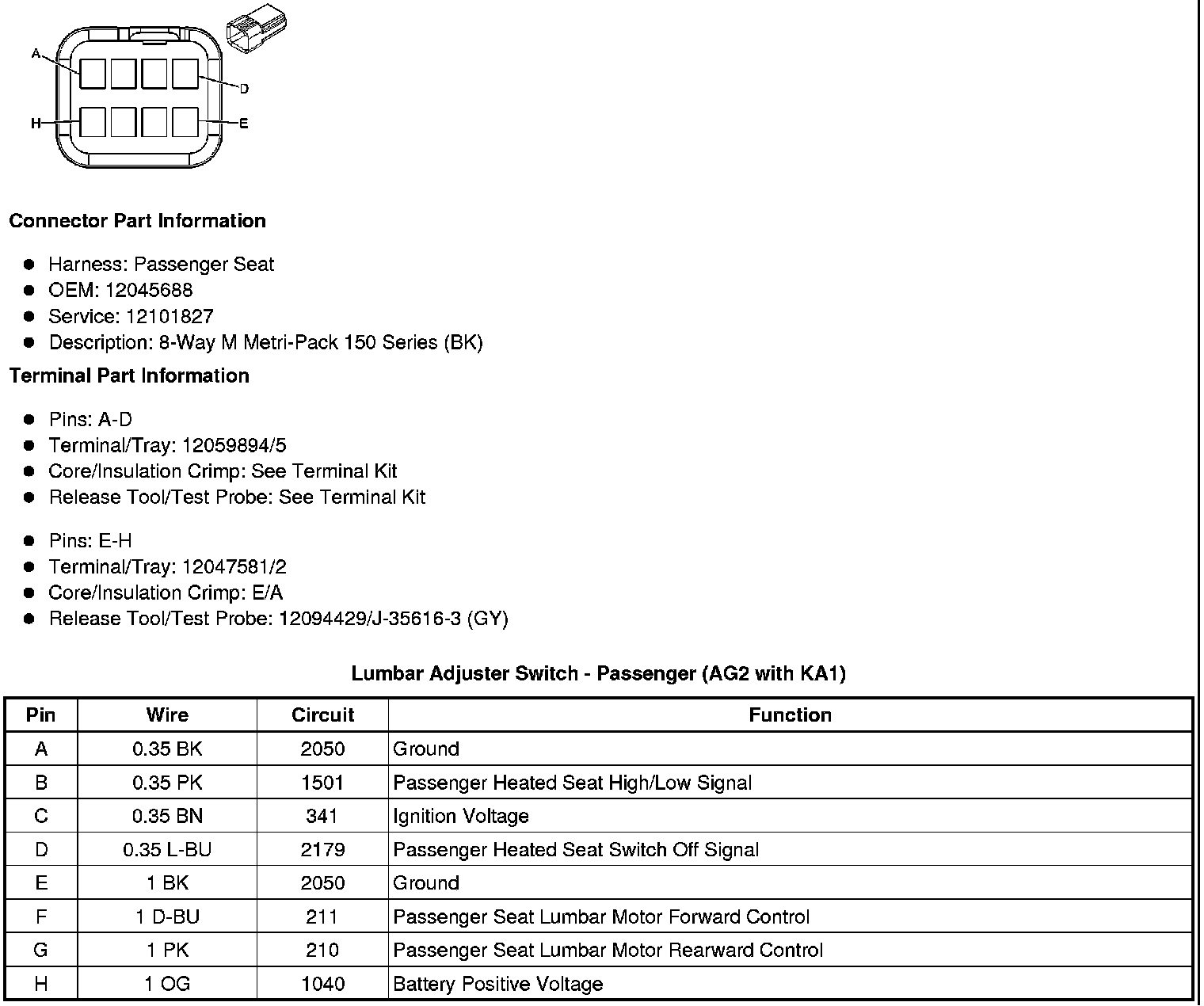

Lumbar Adjuster Switch - Passenger (AG2 with KA1)

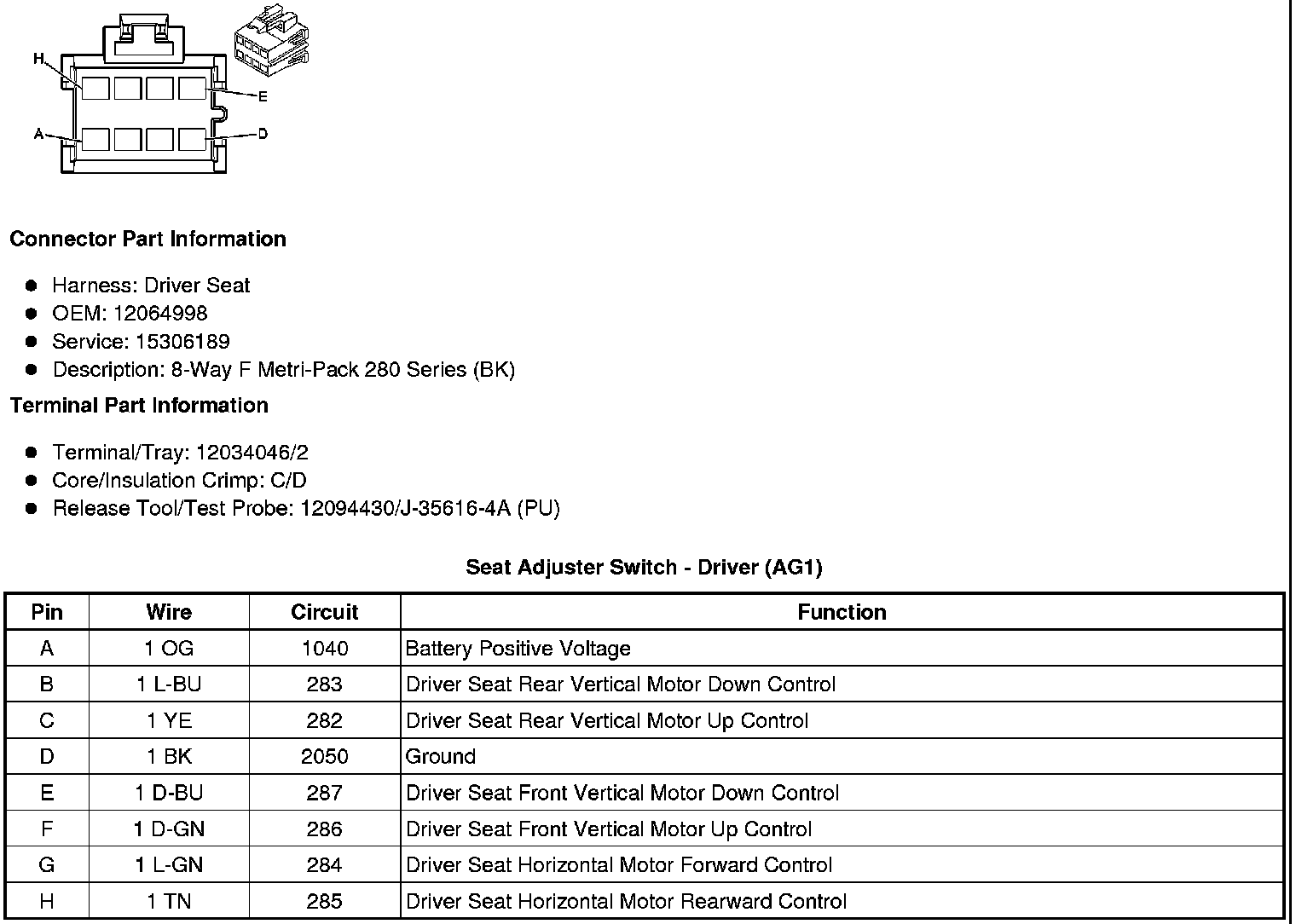

Seat Adjuster Switch - Driver (AG1)

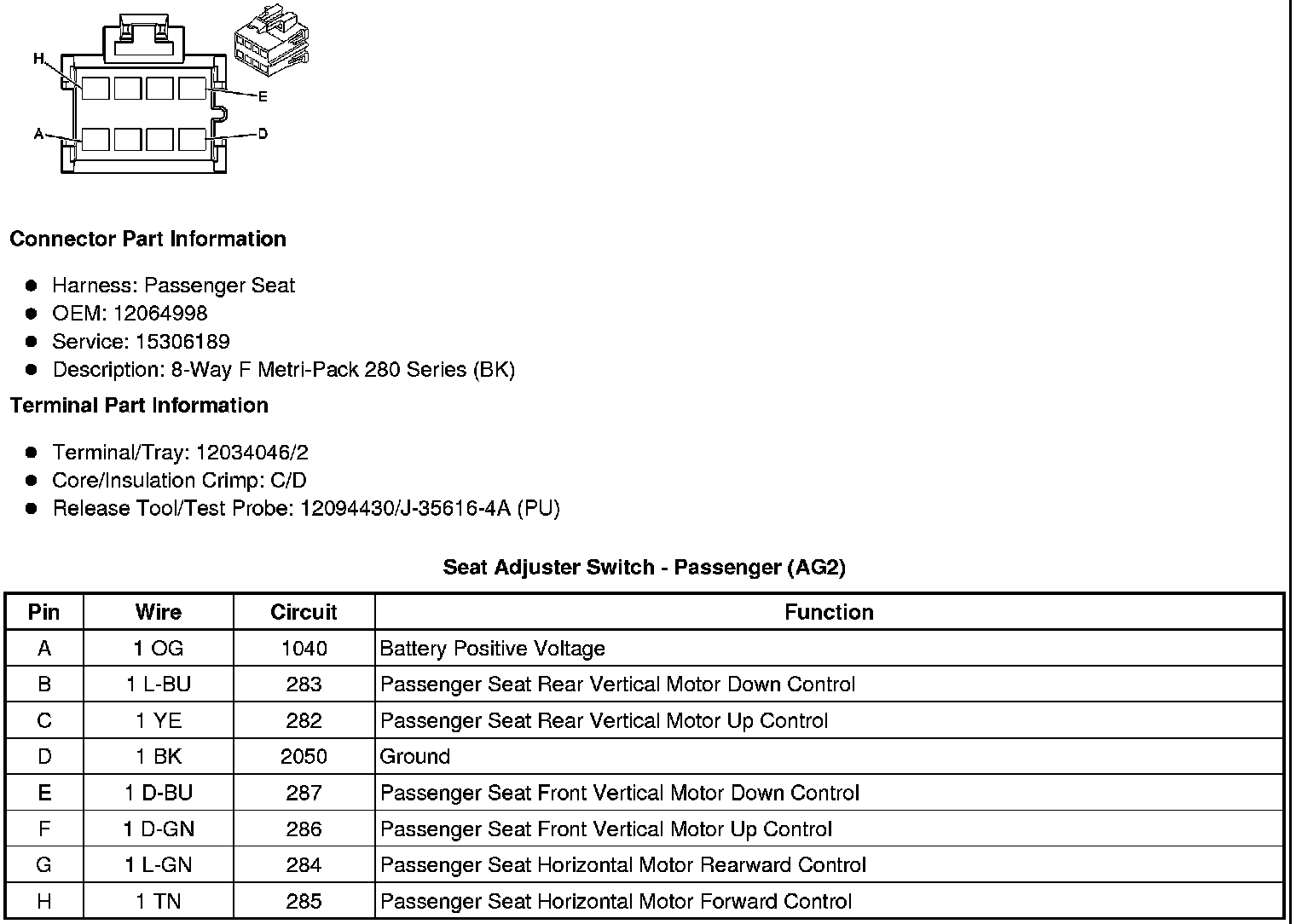

Seat Adjuster Switch - Passenger (AG2)
