Seat Temperature Element




Component Connector End Views

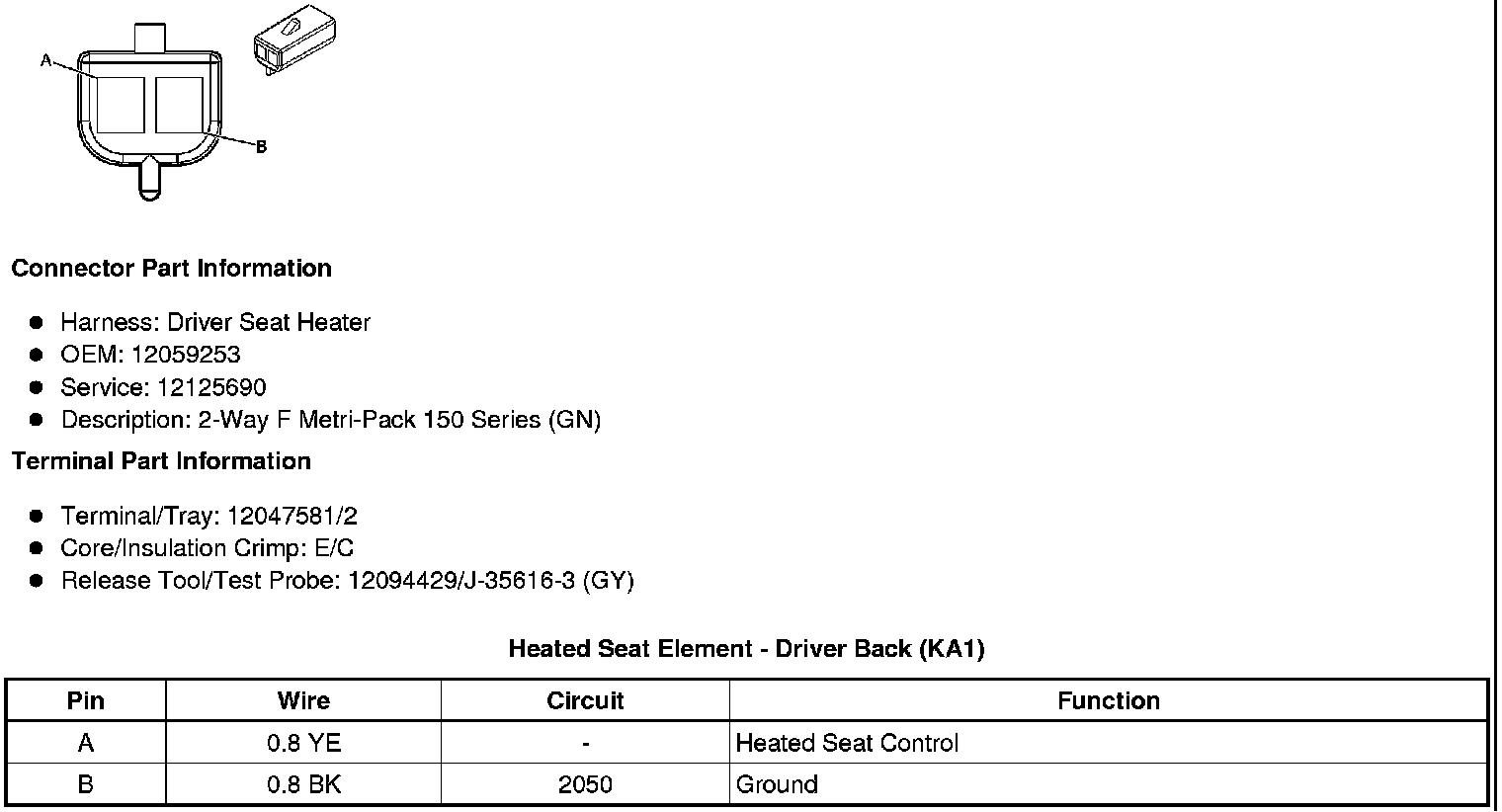

Heated Seat Element - Driver Back (KA1)

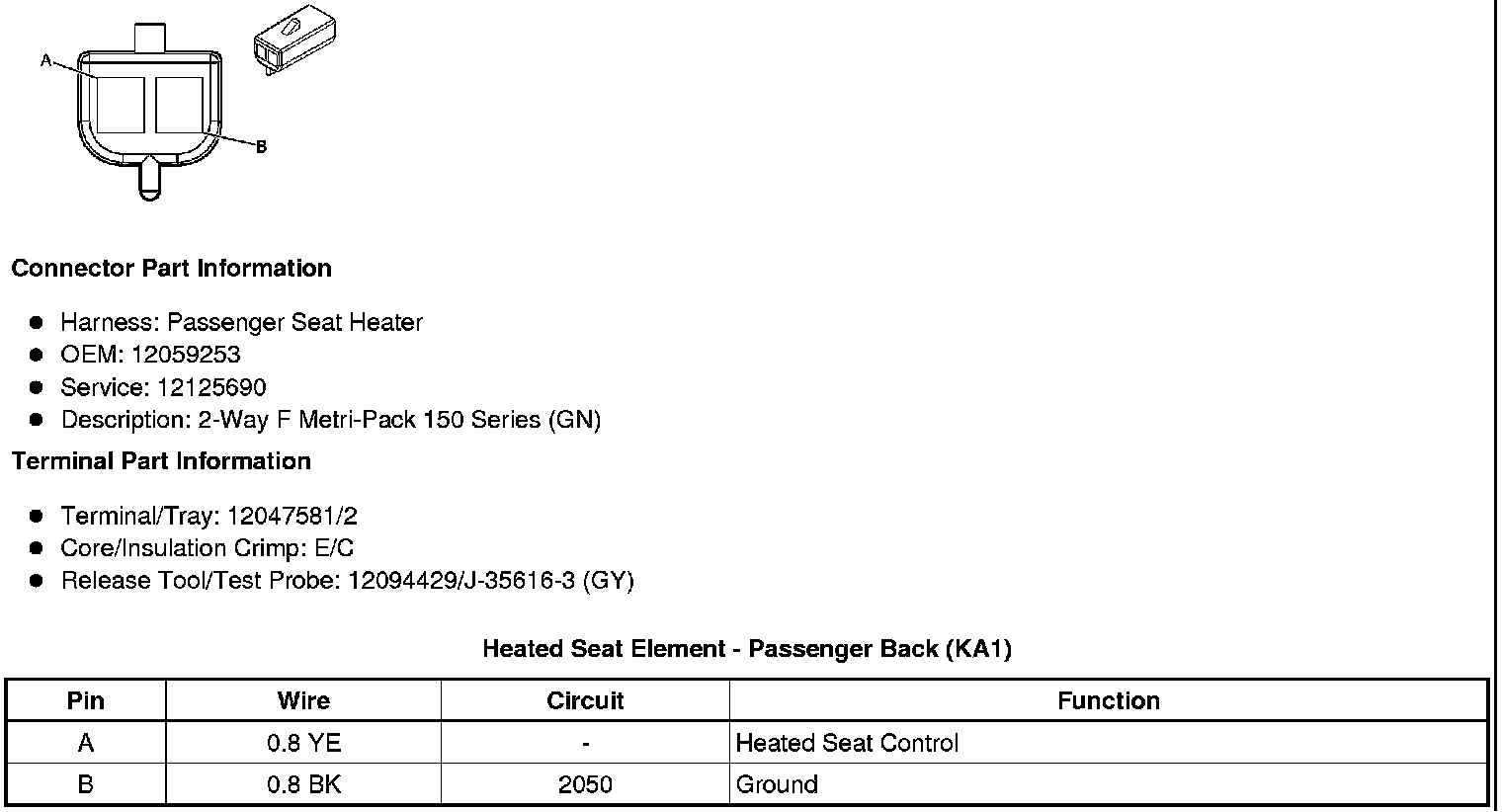

Heated Seat Element - Passenger Back (KA1)
