Tail Lamp Control Module




Component Connector End Views

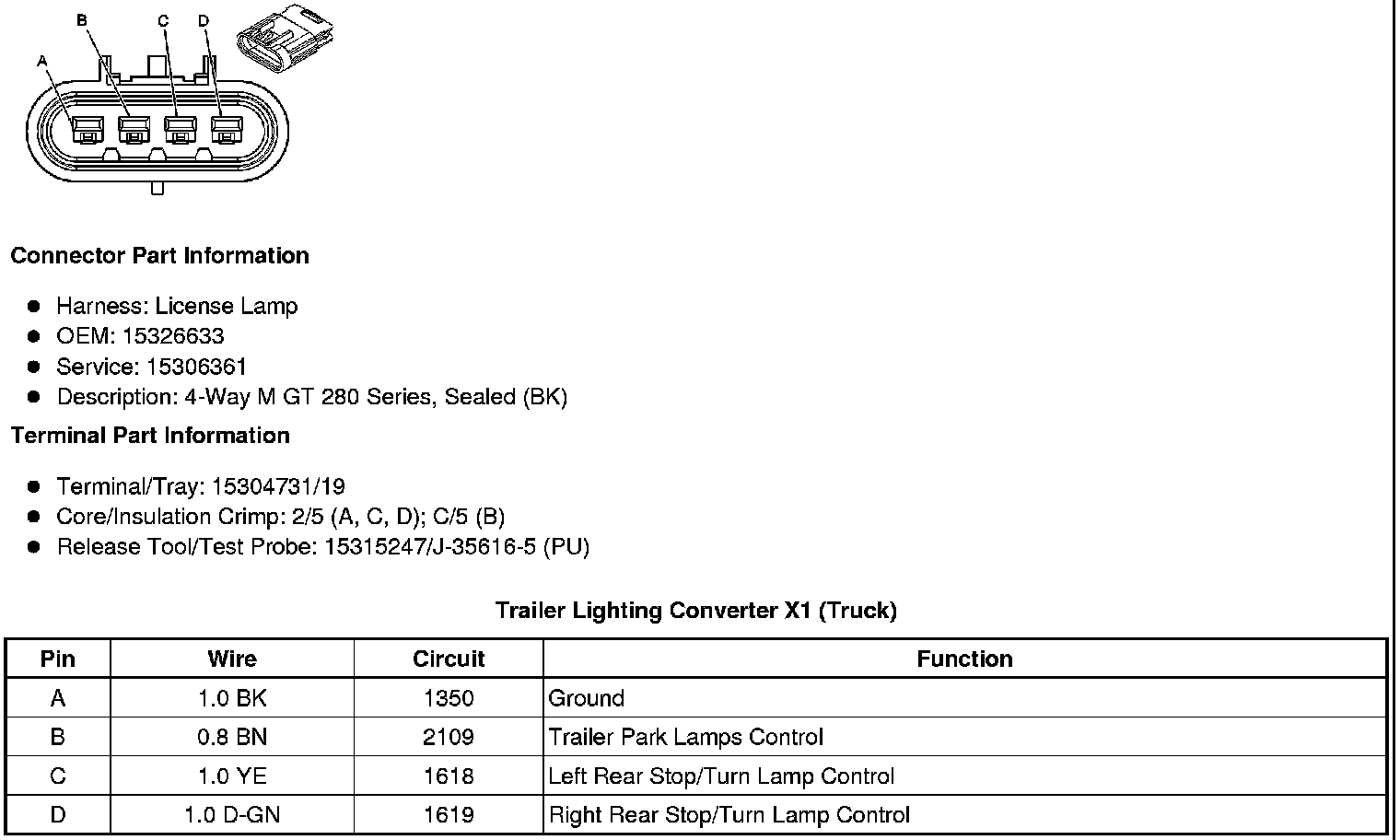

Trailer Lighting Converter X1 (Truck)

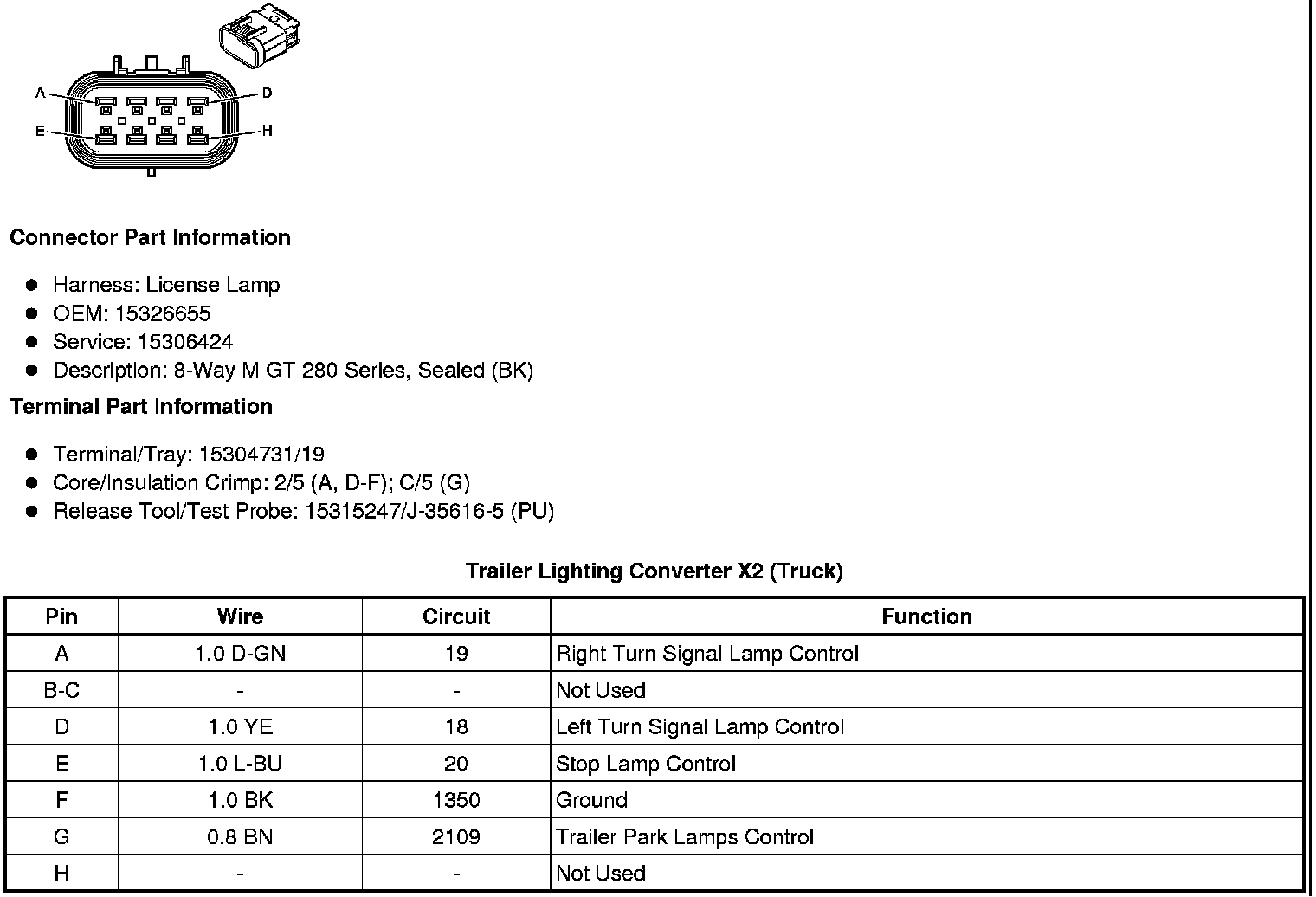

Trailer Lighting Converter X2 (Truck)
