Trailer Connector
Component Connector End Views

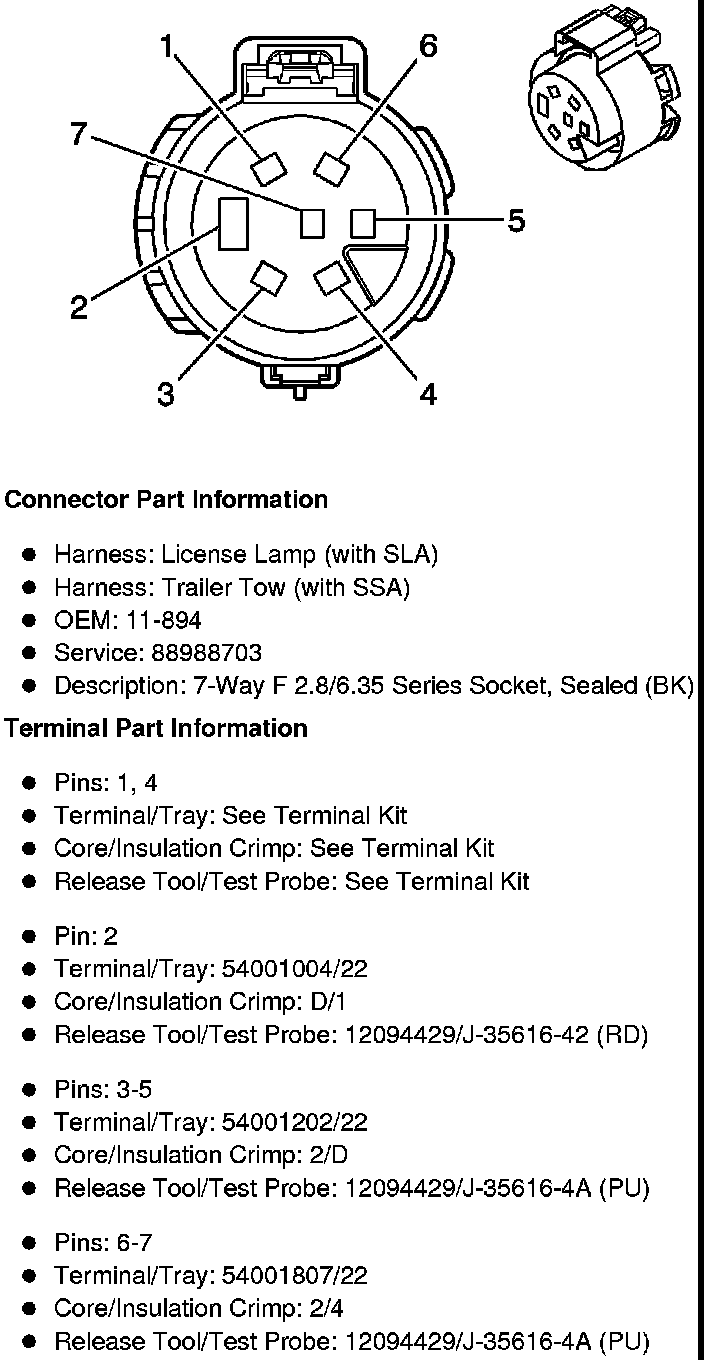

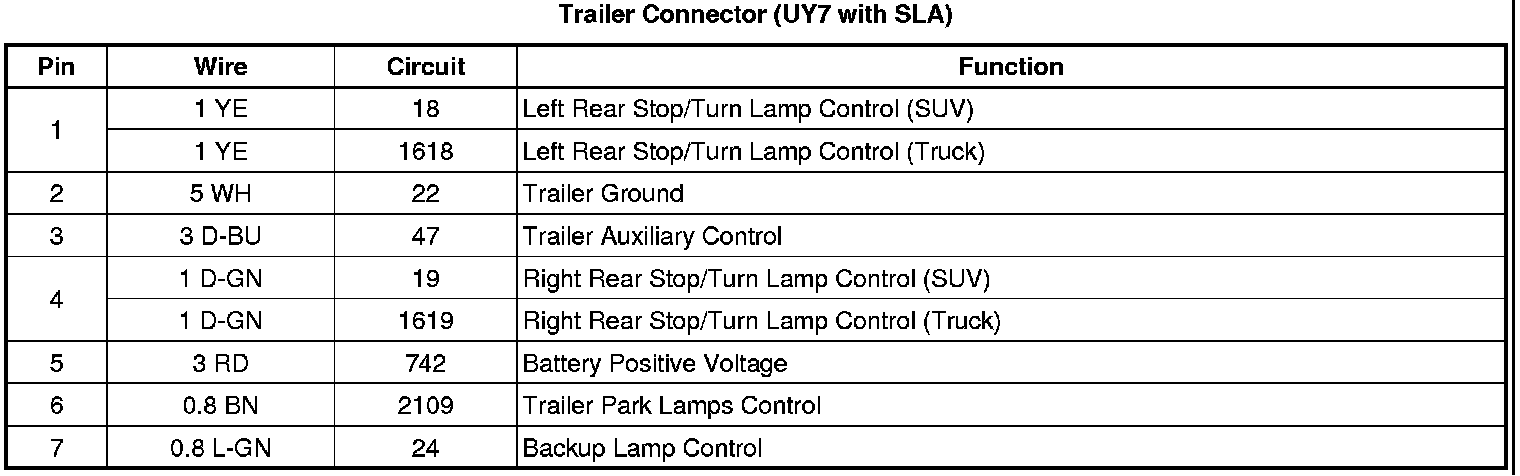

Trailer Connector
(UY7 with SLA)

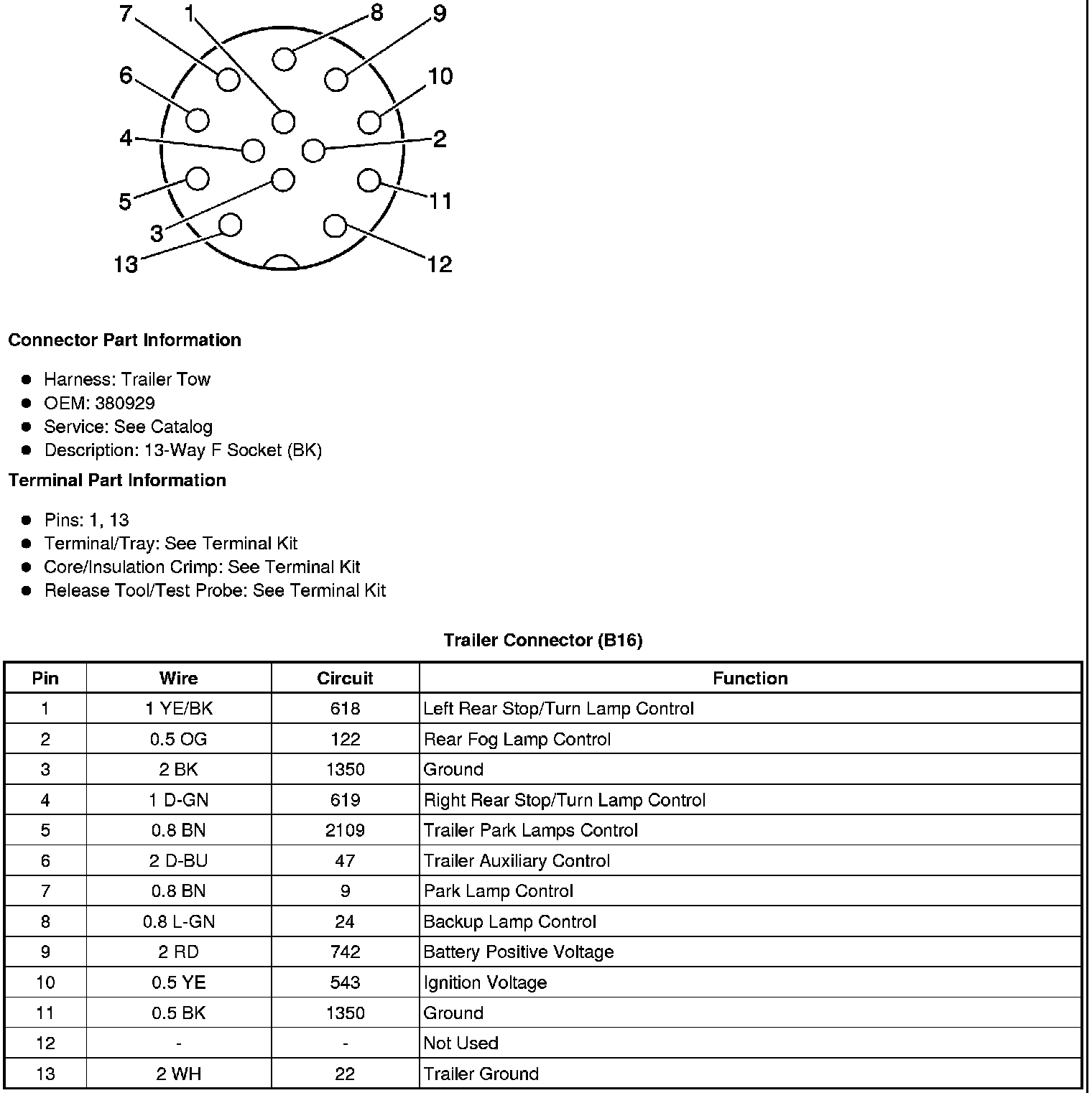

Trailer Connector
(B16)
