Timing Component Alignment Marks: Locations

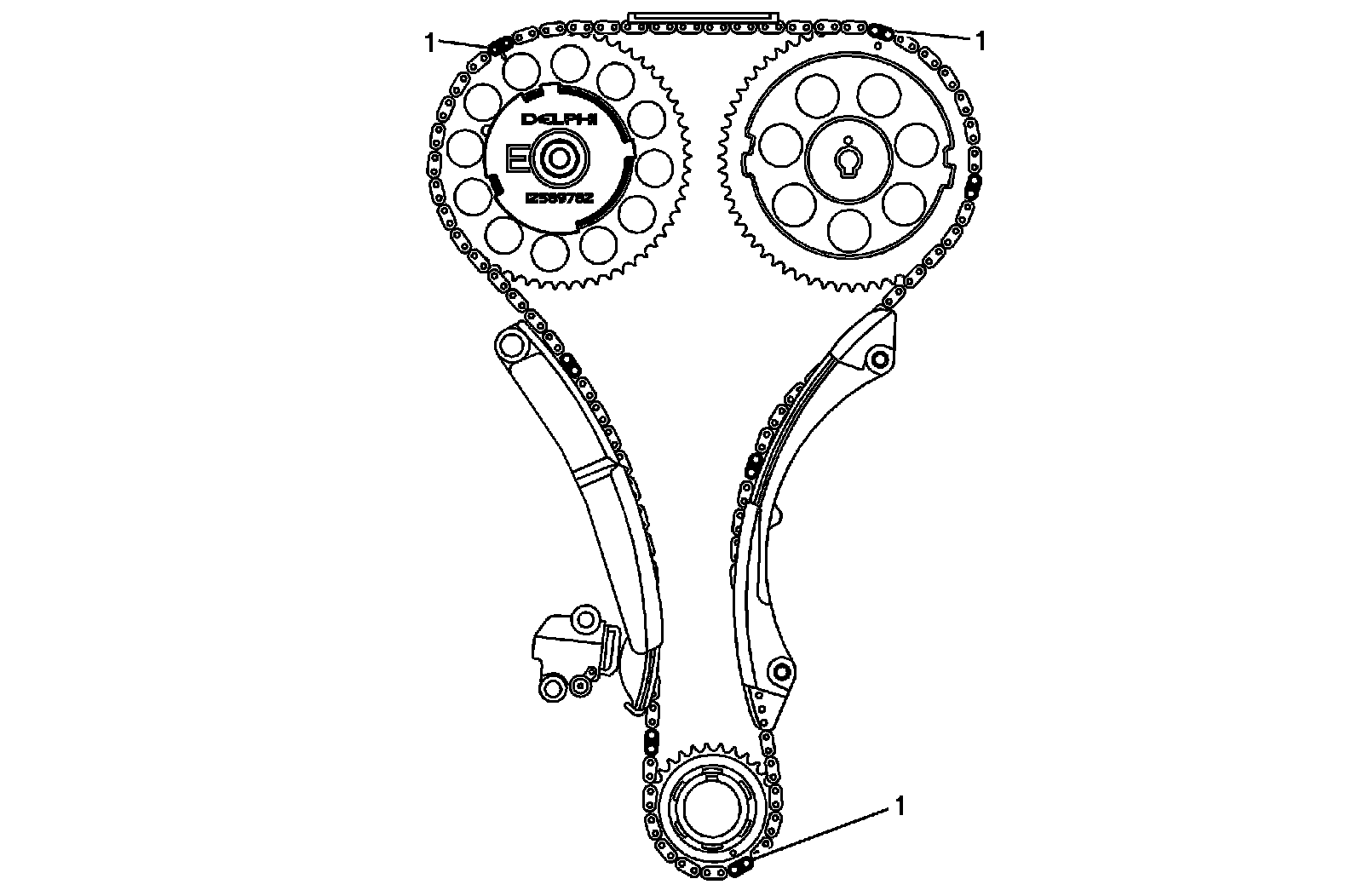

Timing Chain Alignment Diagram

1 - Timing Marks
1 - Timing Marks
1 - Timing Marks
