Fuel Tank Pressure Sensor: Locations

Wheels/Vehicle Underbody Component Views

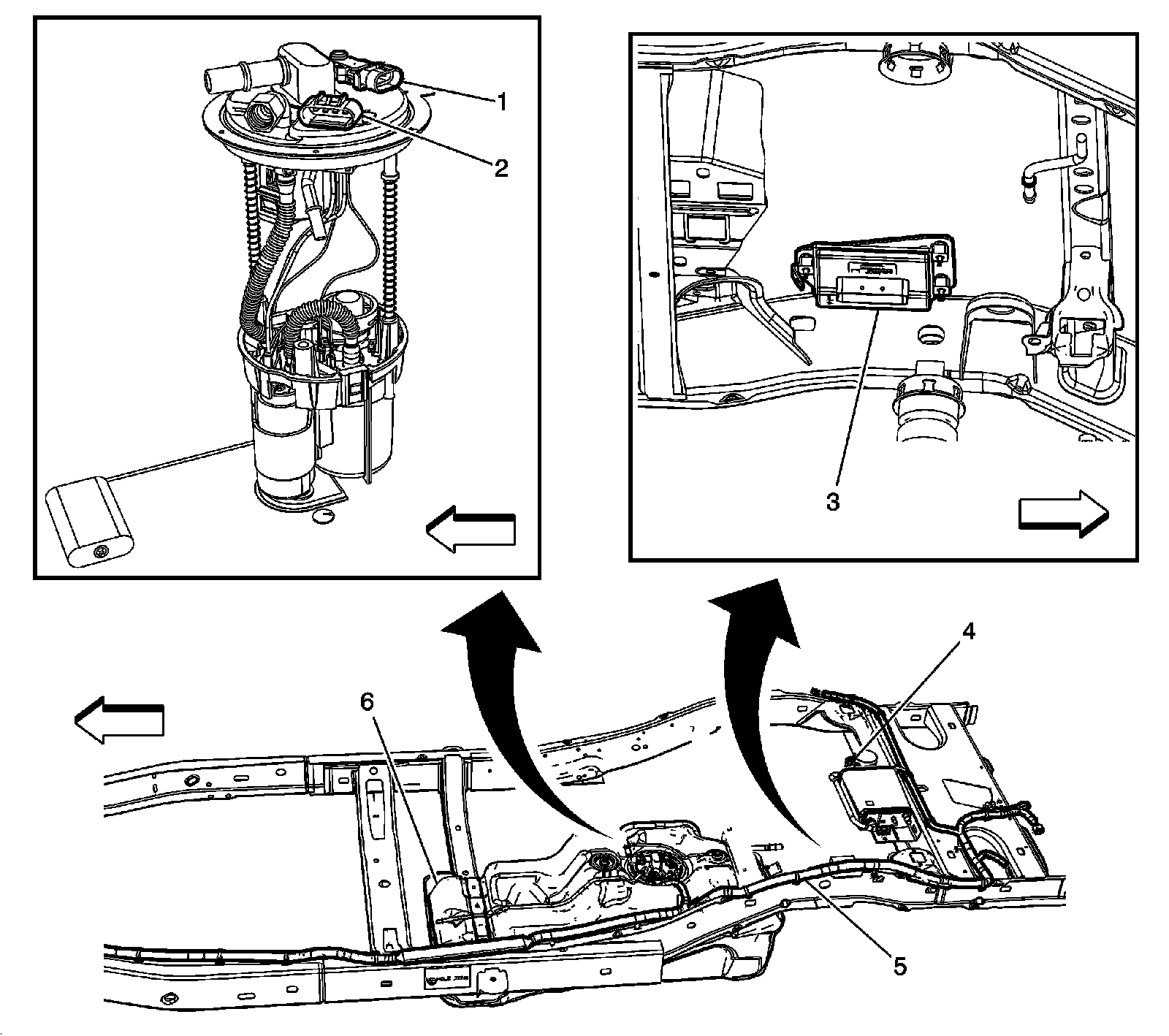

Rear of Frame Components




1 - Fuel Tank Pressure Sensor
2 - Fuel Pump and Sender Assembly
3 - Fuel Pump Flow Control Module
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Chassis Harness
6 - Fuel Tank
