Engine Controls Schematic 1




Engine Controls Schematics

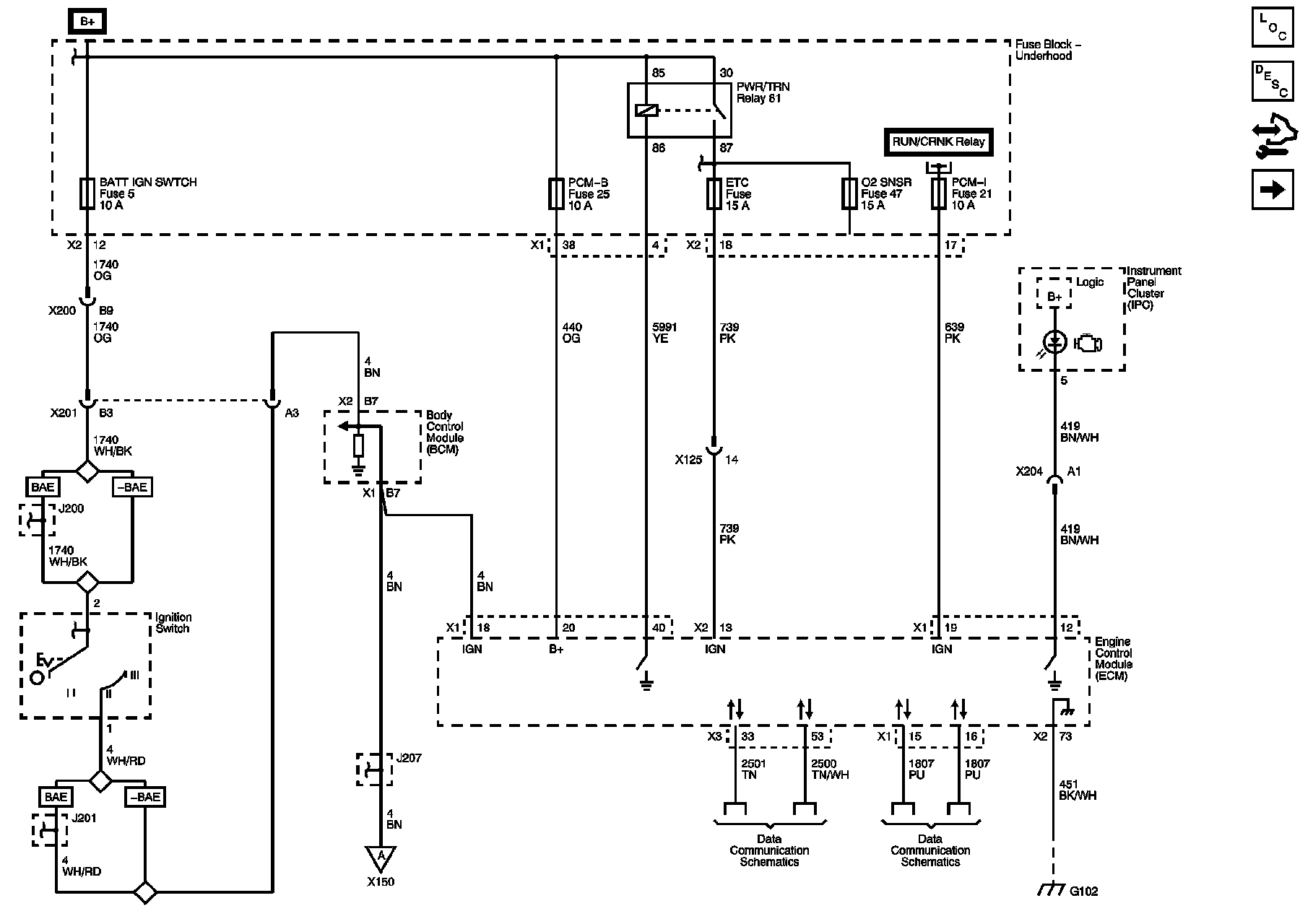

Module Power, Ground, Serial Data and MIL
