Engine Controls Schematic 11




Engine Controls Schematics

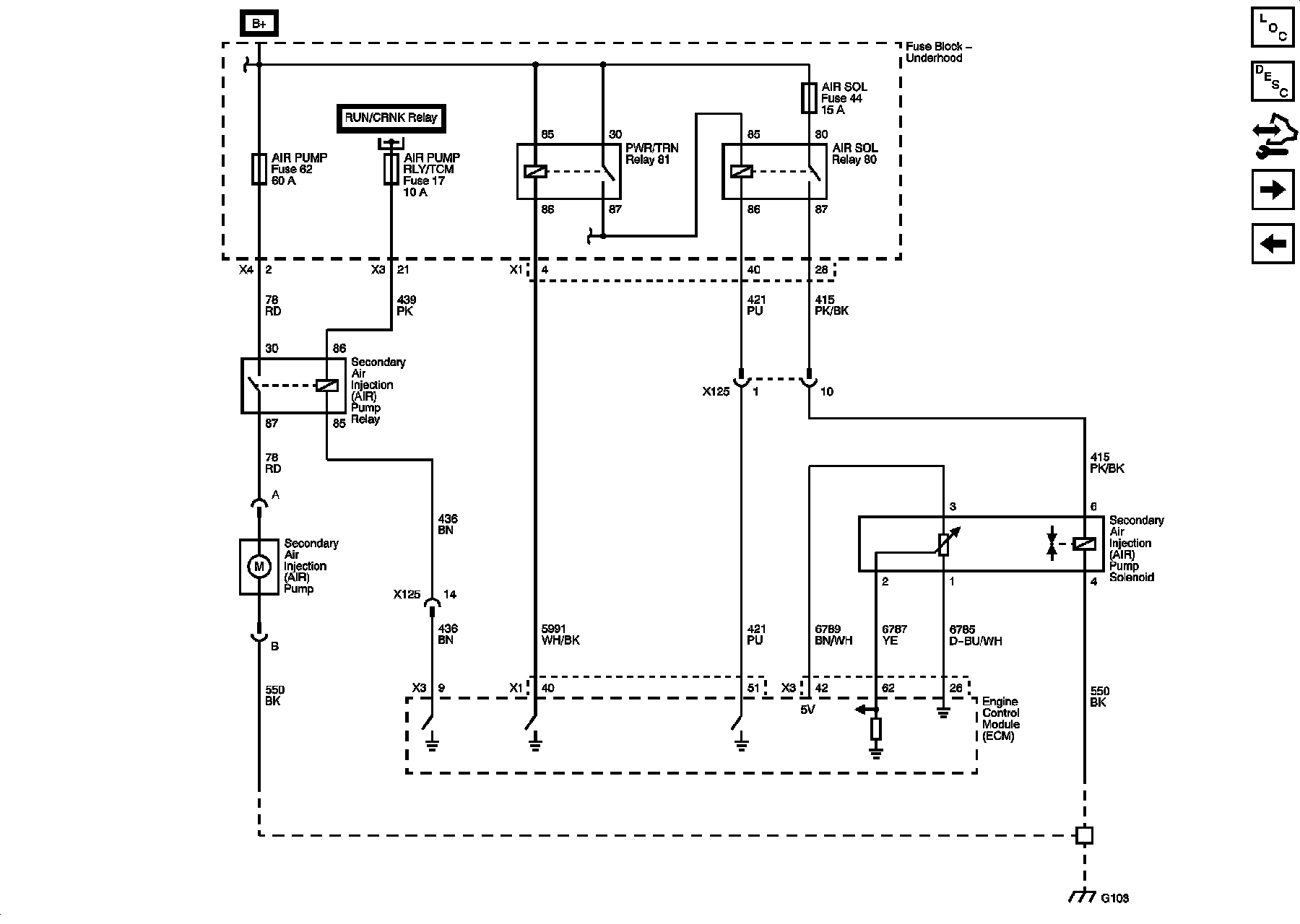

Device Controls - Secondary Air Injection (K18)
