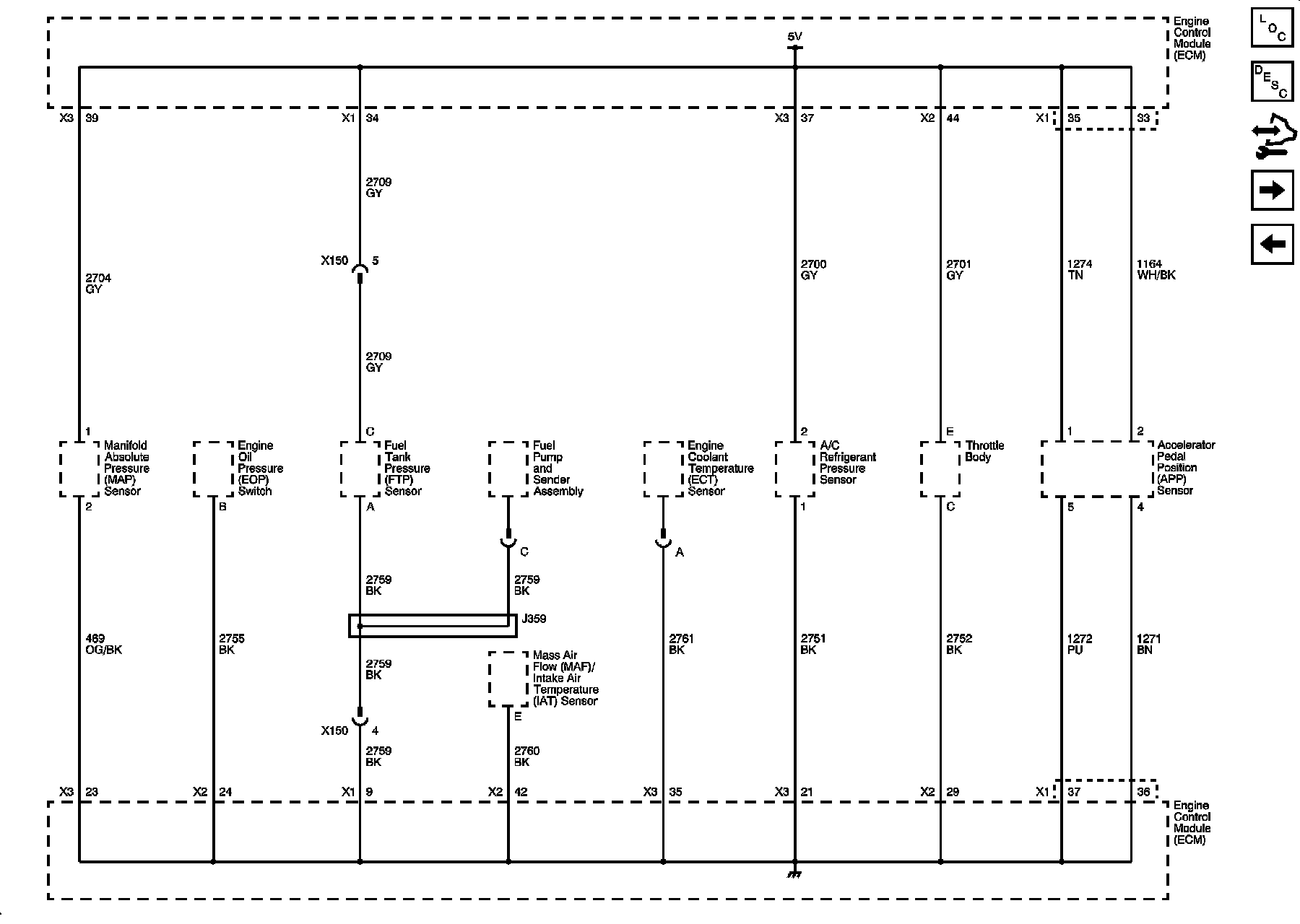

Engine Controls Schematic 2




Engine Controls Schematics

Engine Data Sensors - 5-Volt and Low Reference
