Engine Controls Schematic 3




Engine Controls Schematics

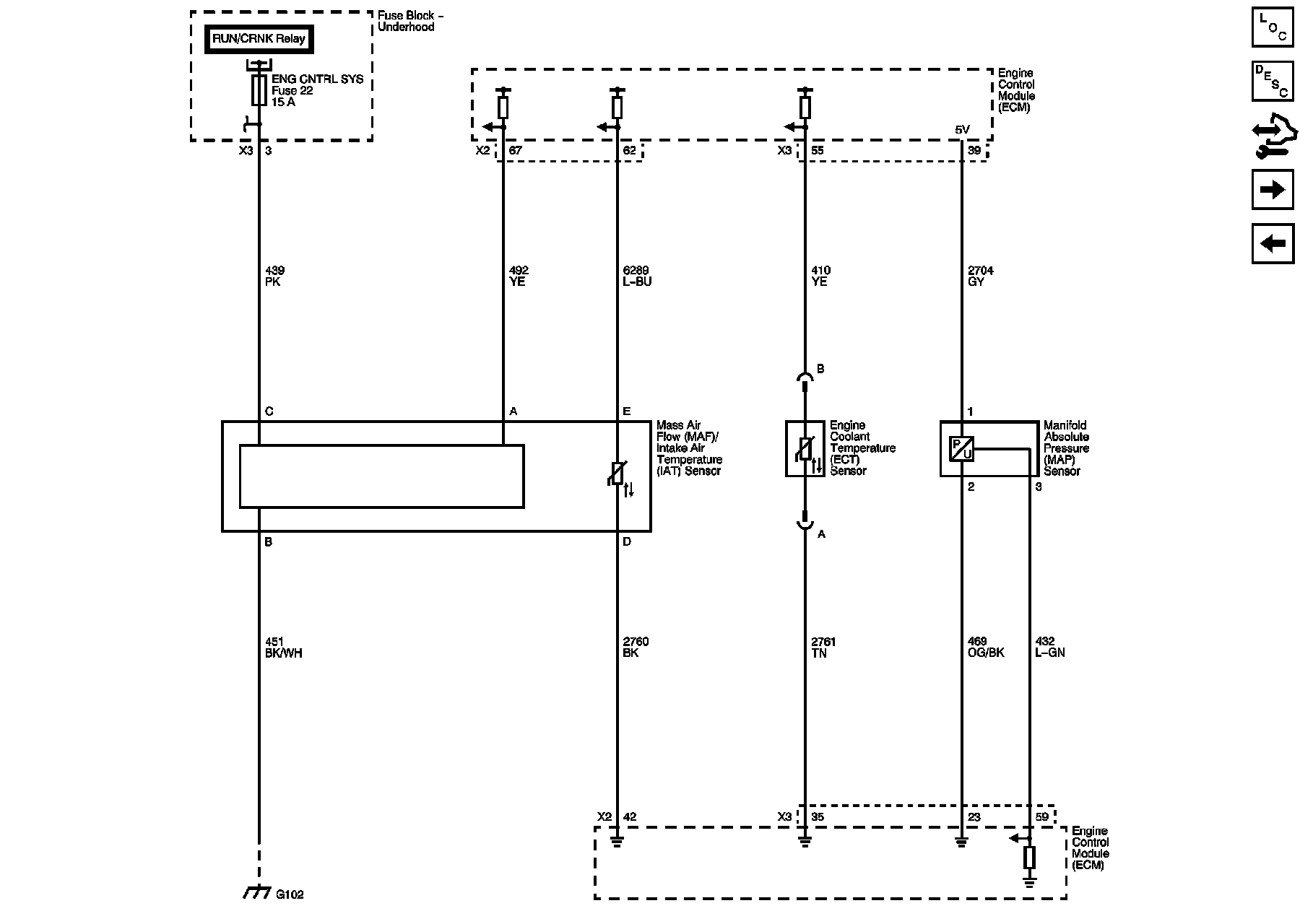

Engine Data Sensors - Pressure, Temperature, and Throttle Controls
