Ignition Coil: Diagrams




Component Connector End Views

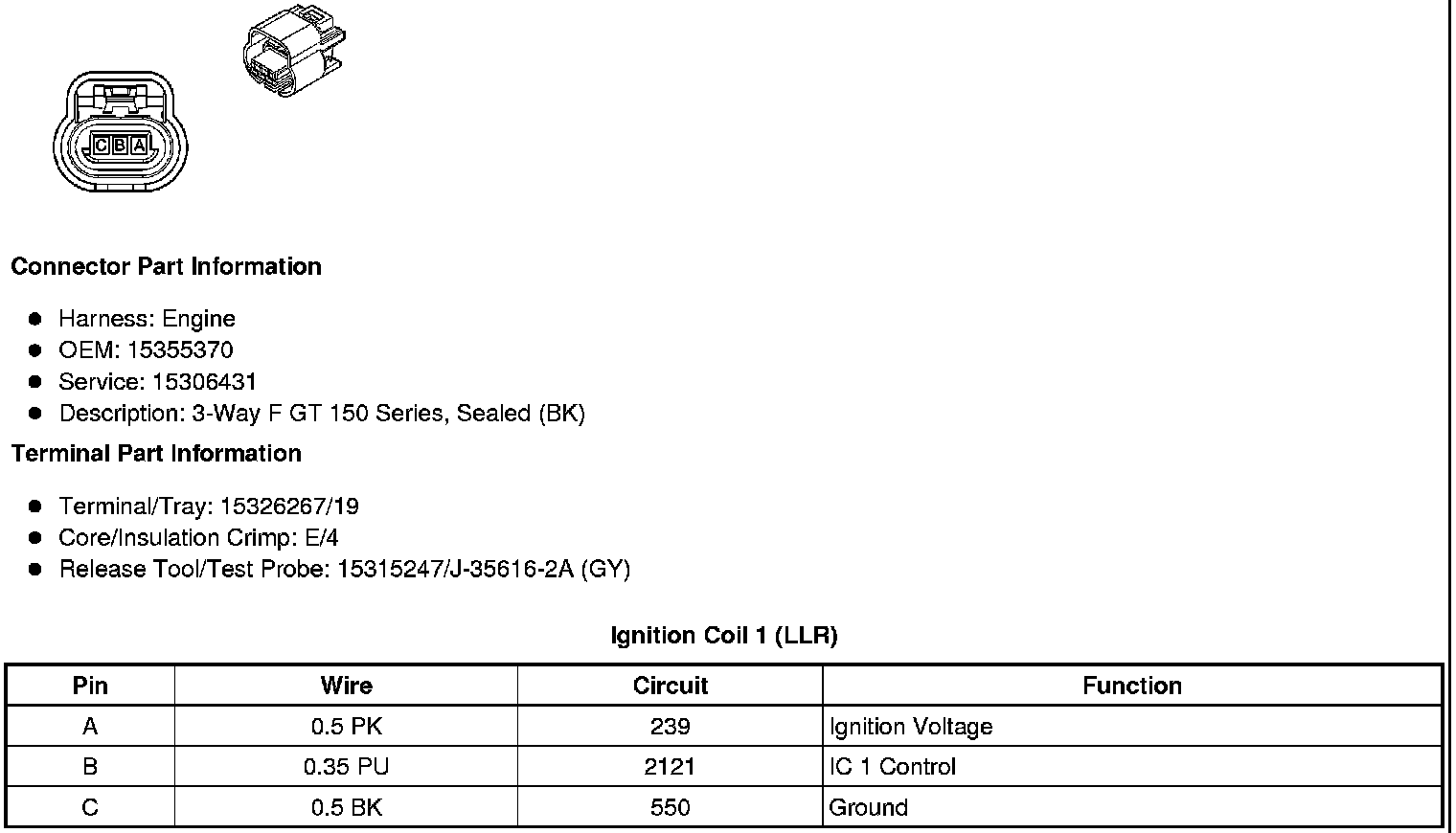

Ignition Coil 1 (LLR)

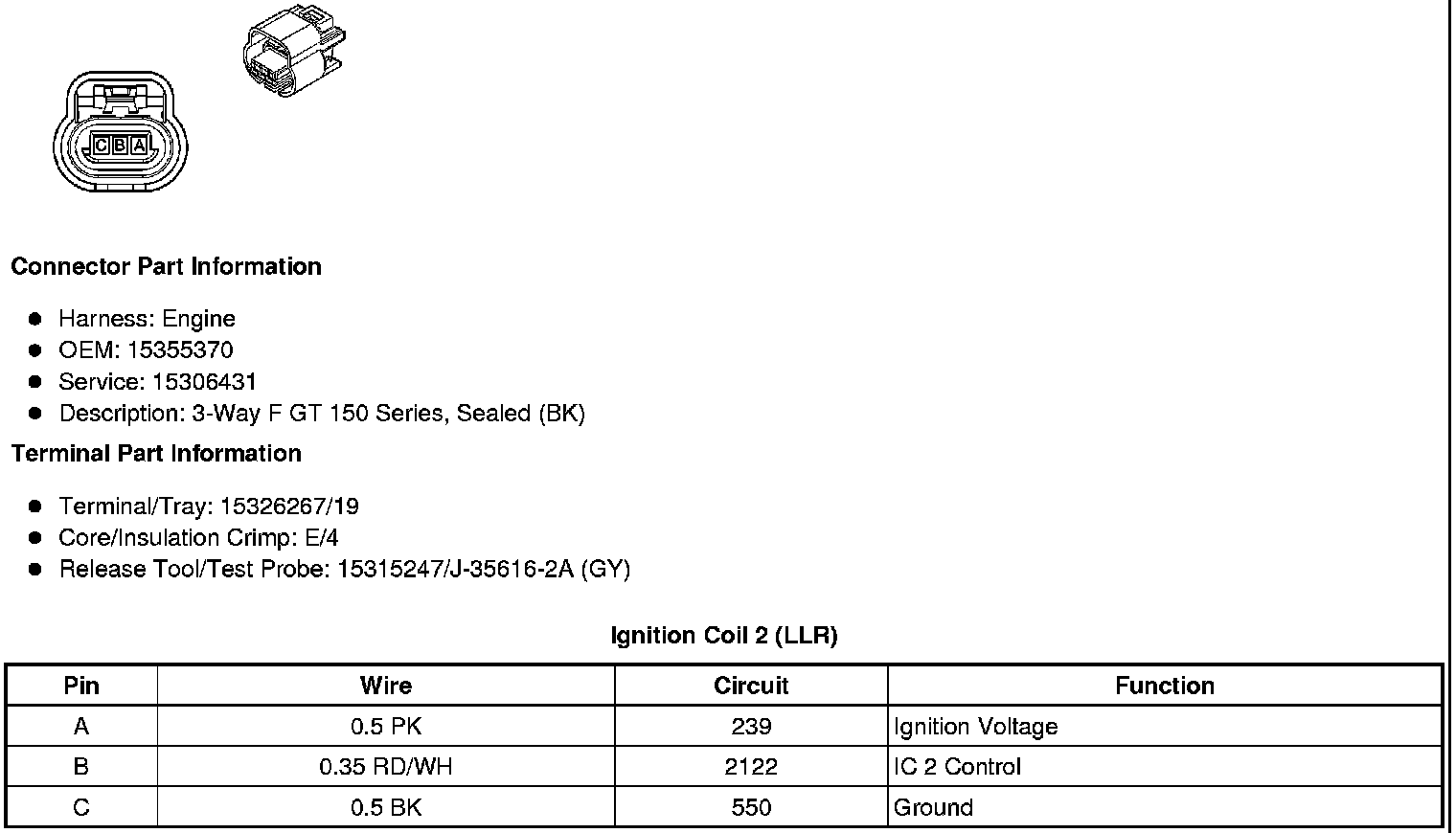

Ignition Coil 2 (LLR)






Ignition Coil 3 (LLR)

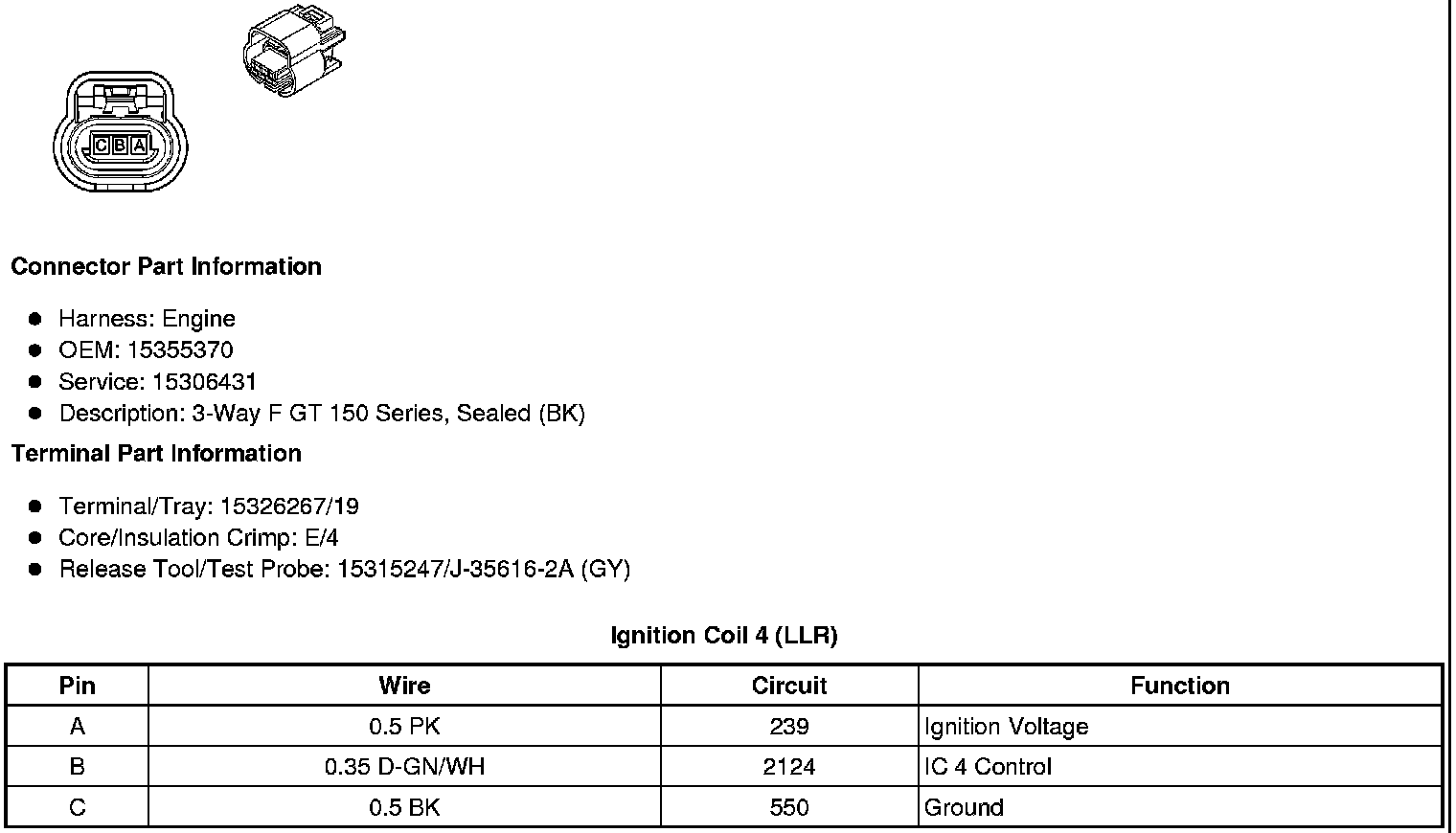

Ignition Coil 4 (LLR)






Ignition Coil 5 (LLR)
