License Plate Lamp




Component Connector End Views

License Lamp (SLA)

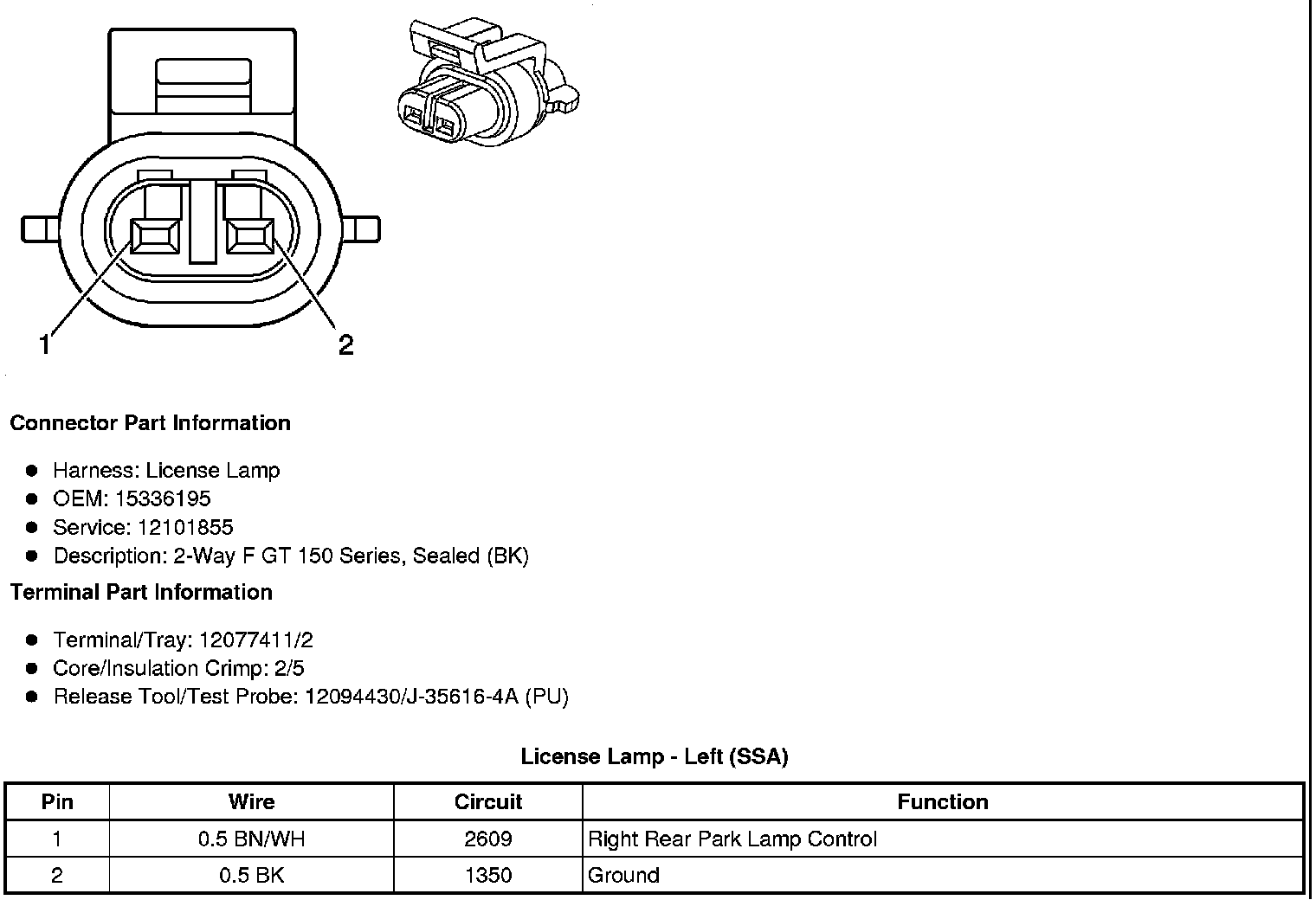

License Lamp - Left (SSA)

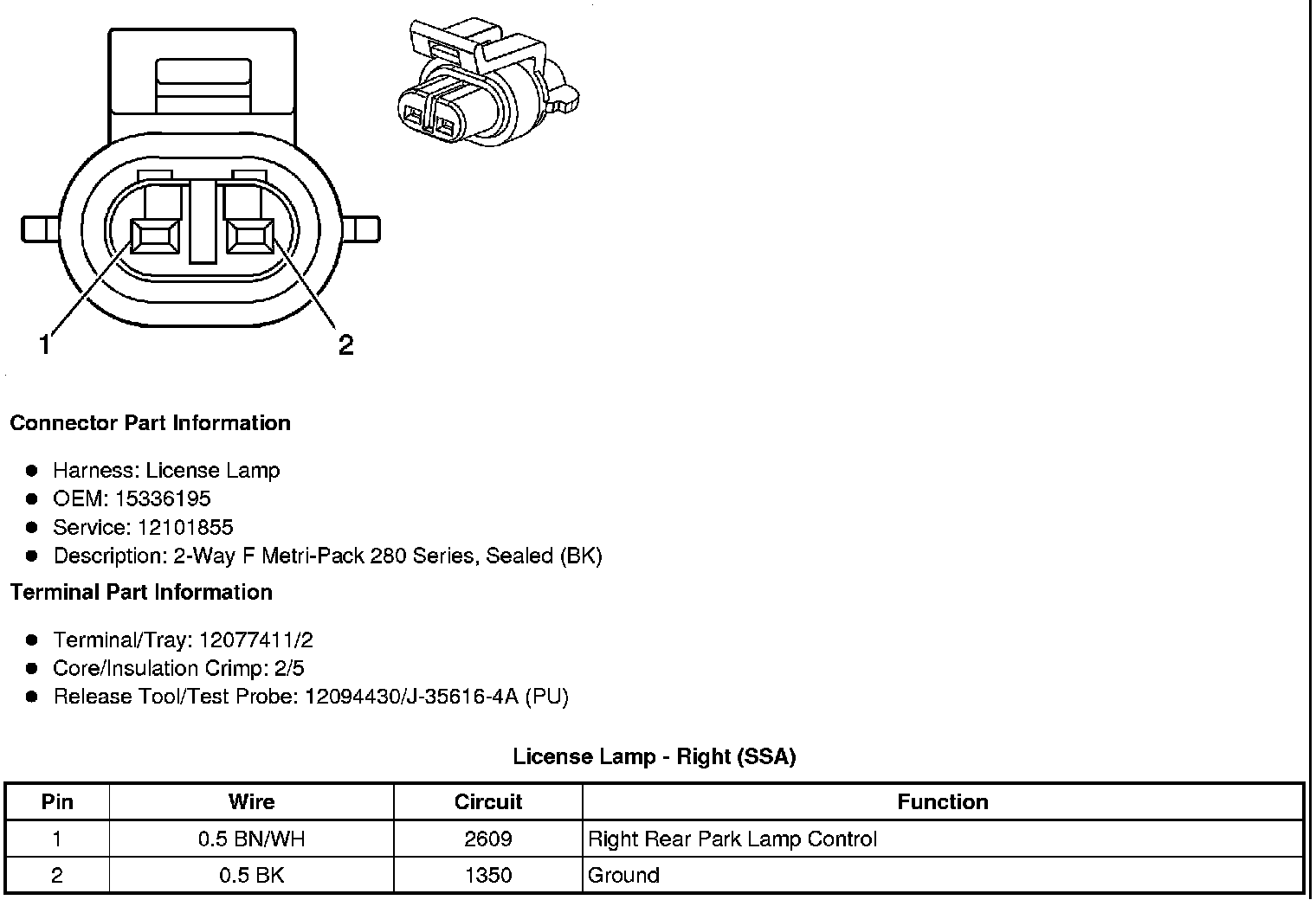

License Lamp - Right (SSA)
