Rear Vision Camera




Component Connector End Views

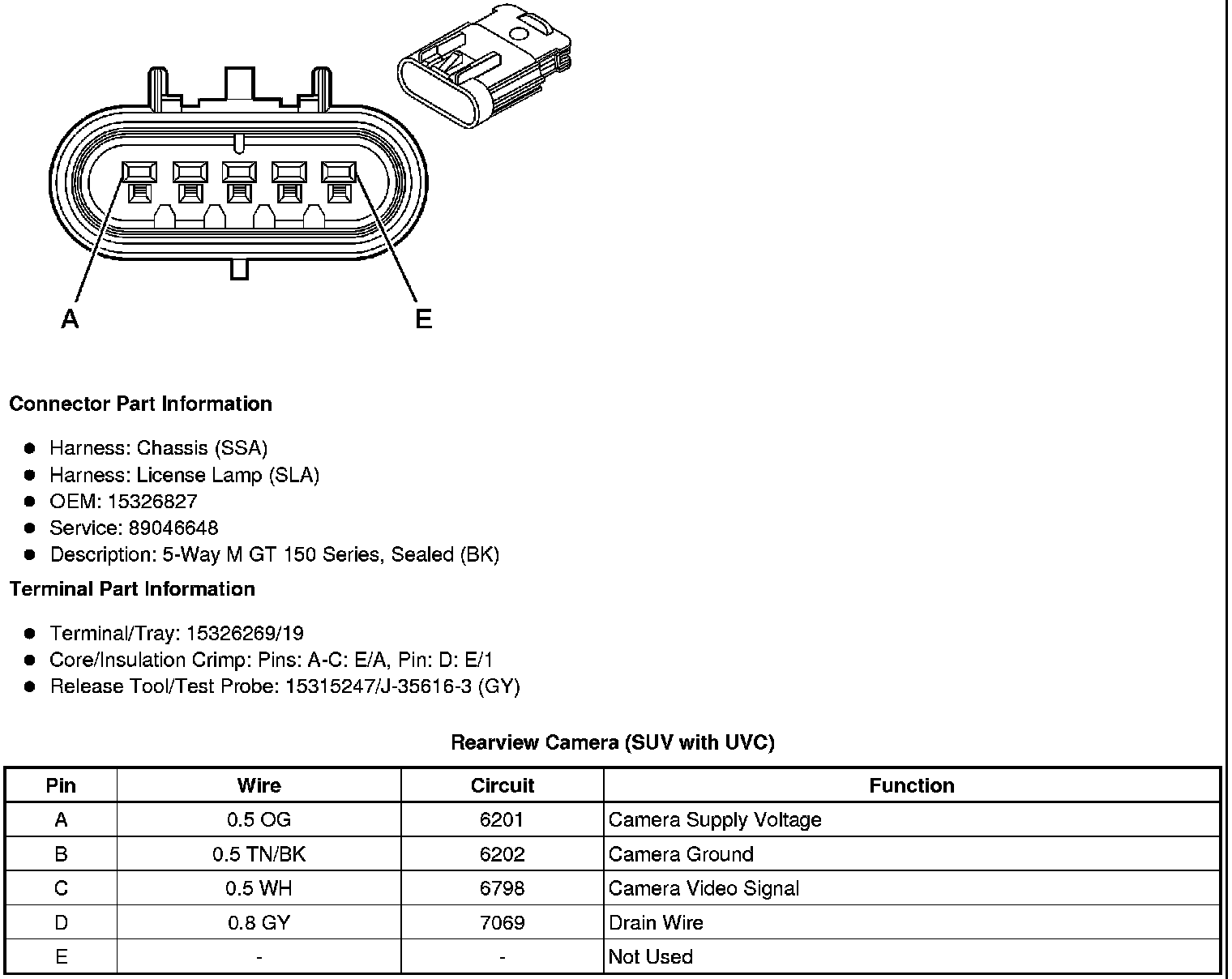

Rearview Camera (SUV with UVC)

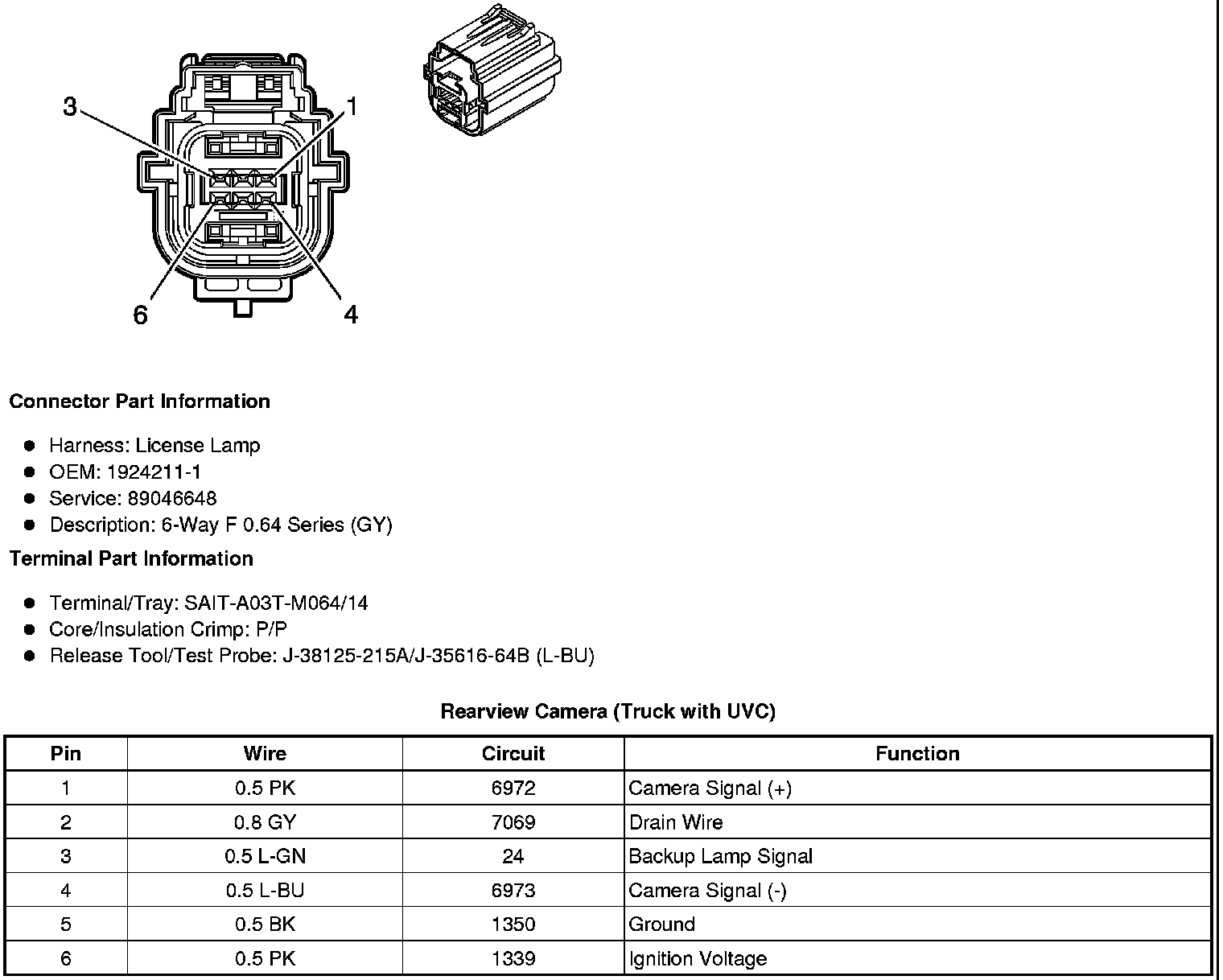

Rearview Camera (TRUCK with UVC)

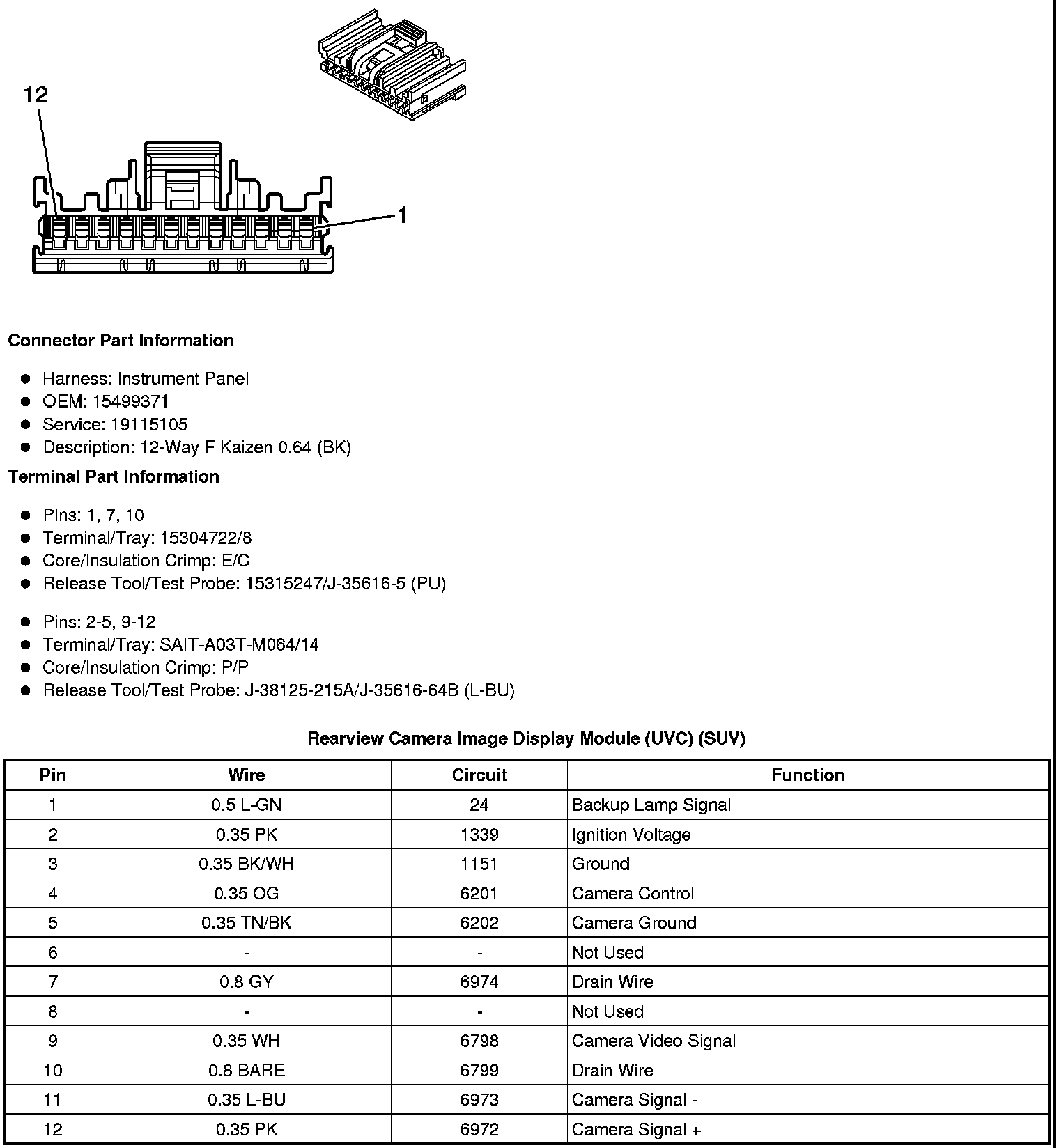

Rearview Camera Image Display Module (SUV with UVC)
