Transmission Speed Sensor, A/T

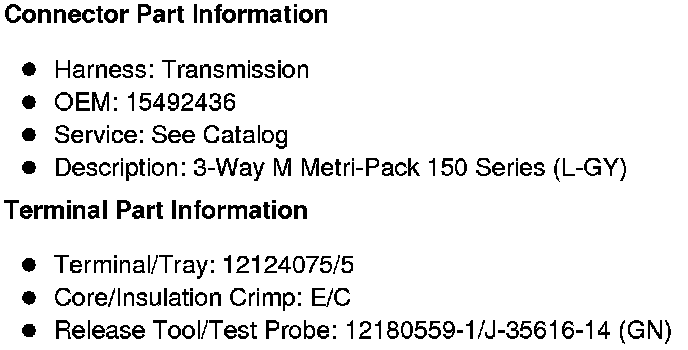

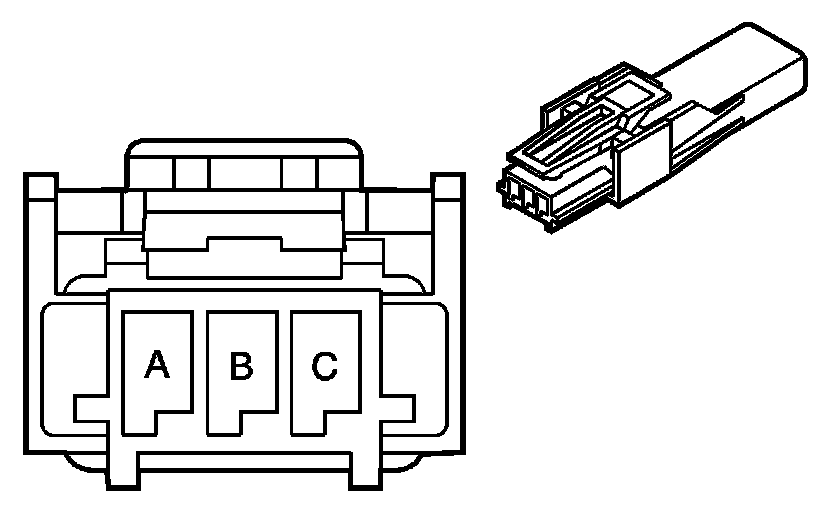

Component Connector End Views

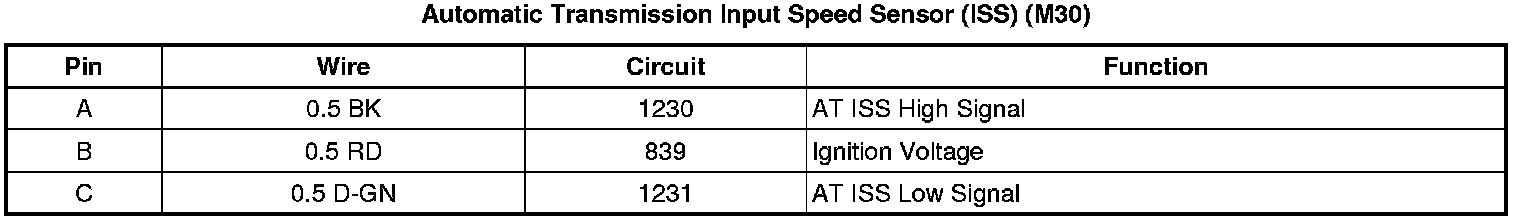

Automatic Transmission Input Speed Sensor (ISS) (M30)
