Master Connector List
Master Electrical Component List

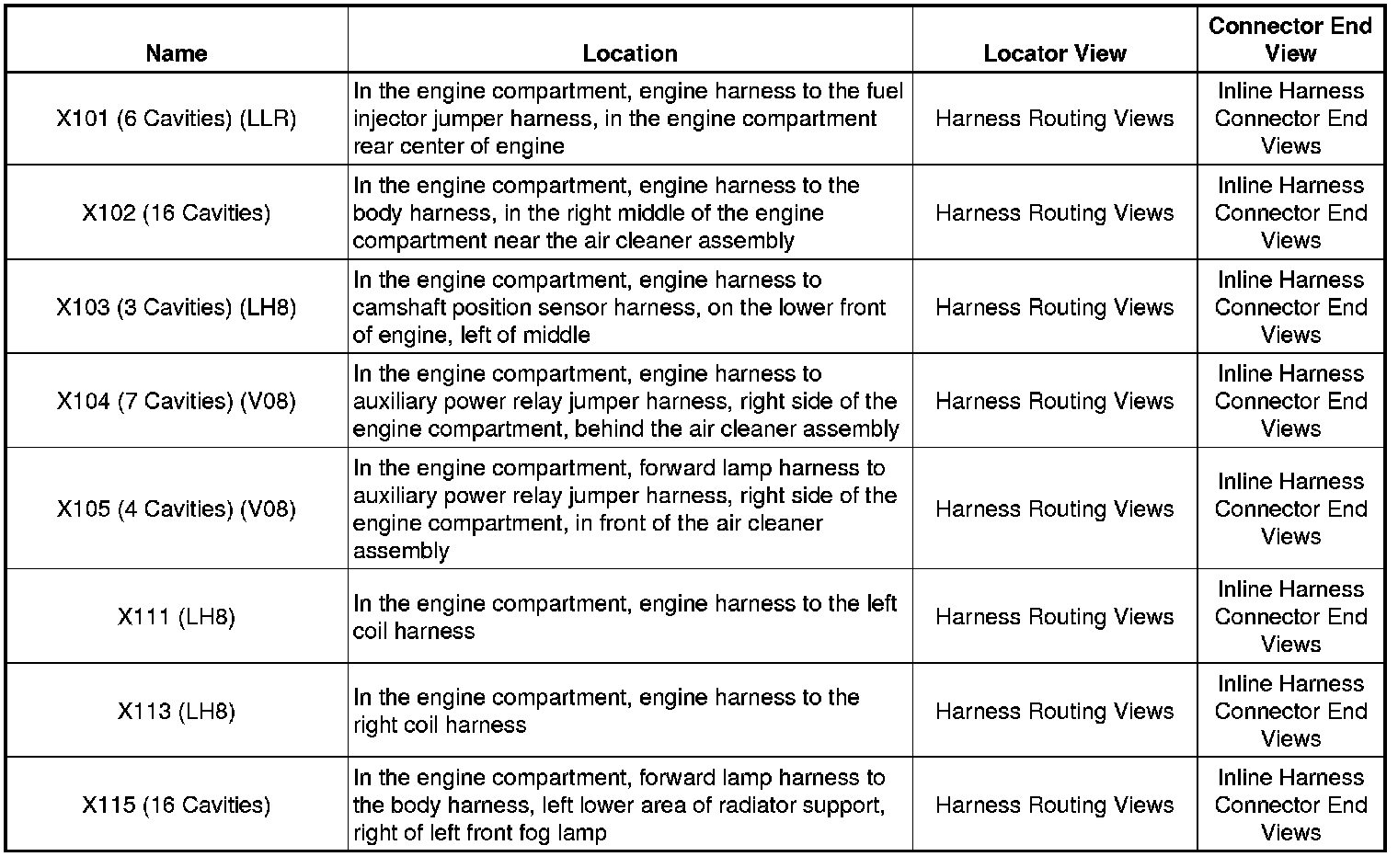

X101 - X115:

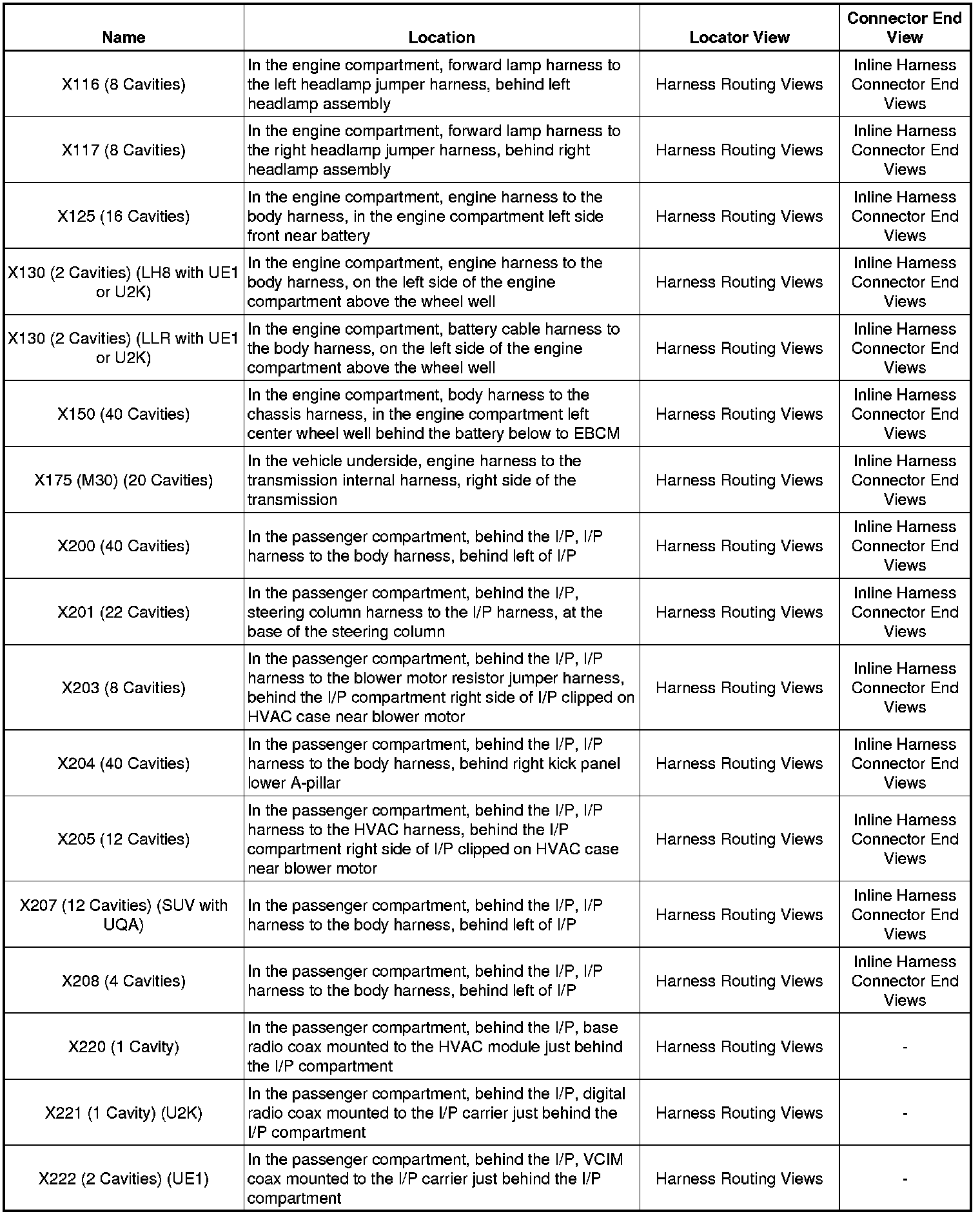

X116 - X222:

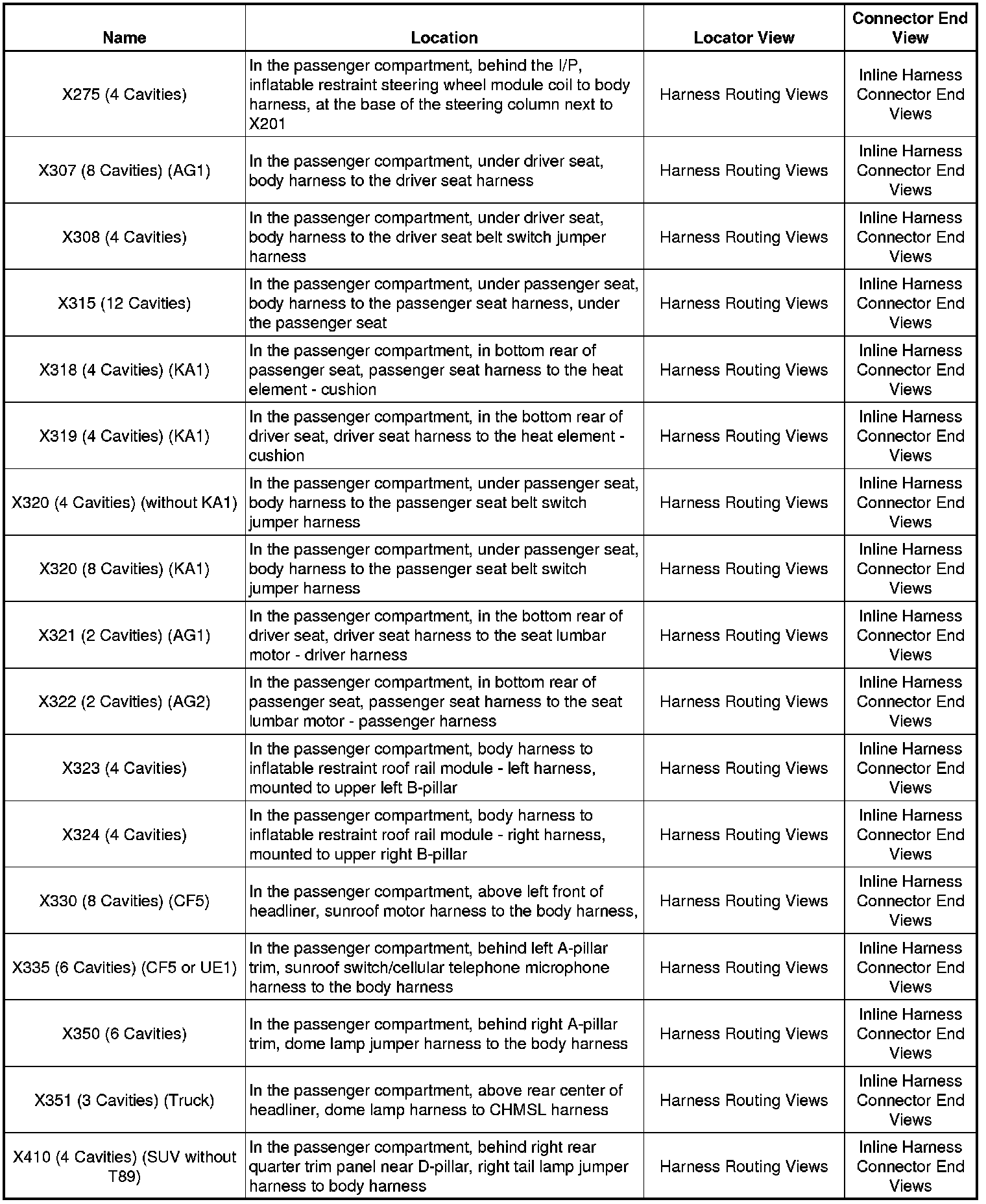

X275 - X410:

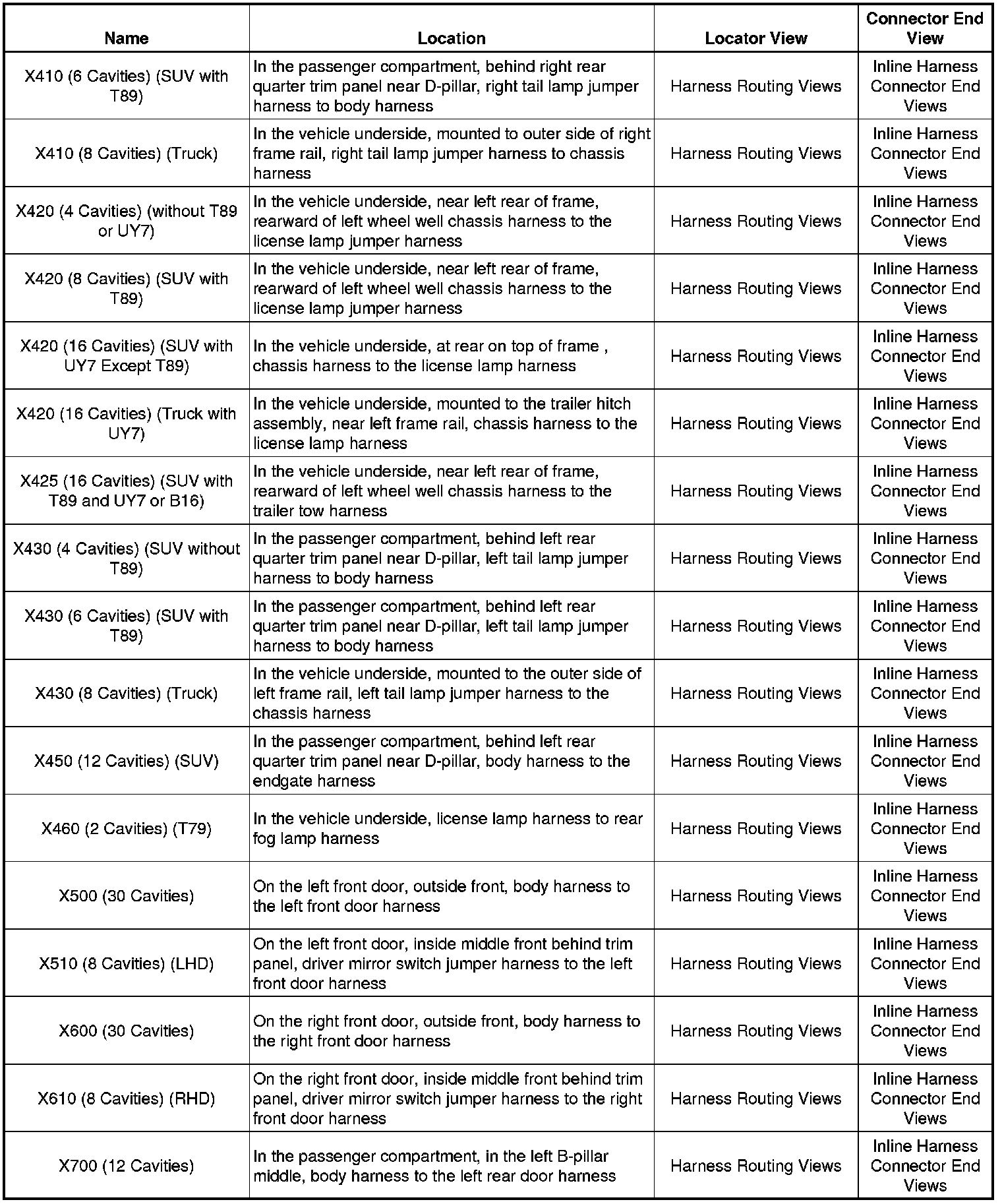

X410 - X700:
X800 - X901:
