Knock Sensor: Diagrams




Component Connector End Views

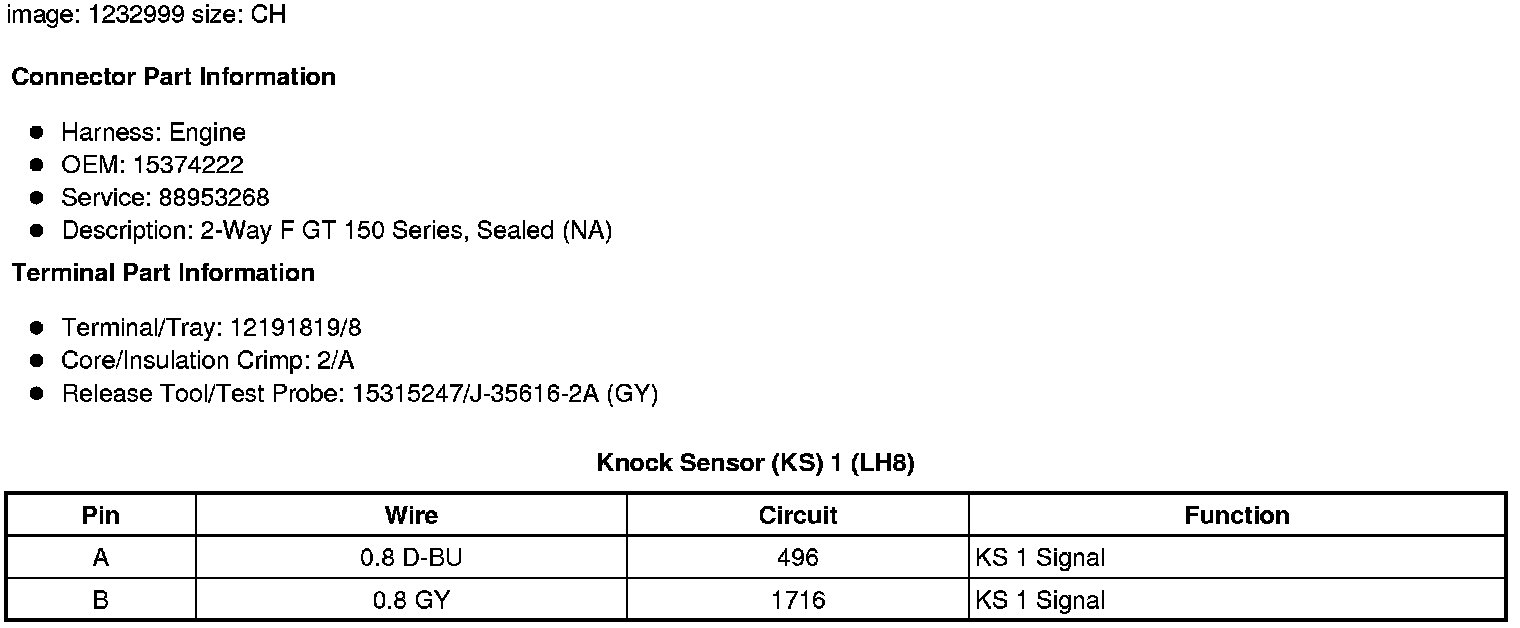

Knock Sensor (KS) 1 (LH8)

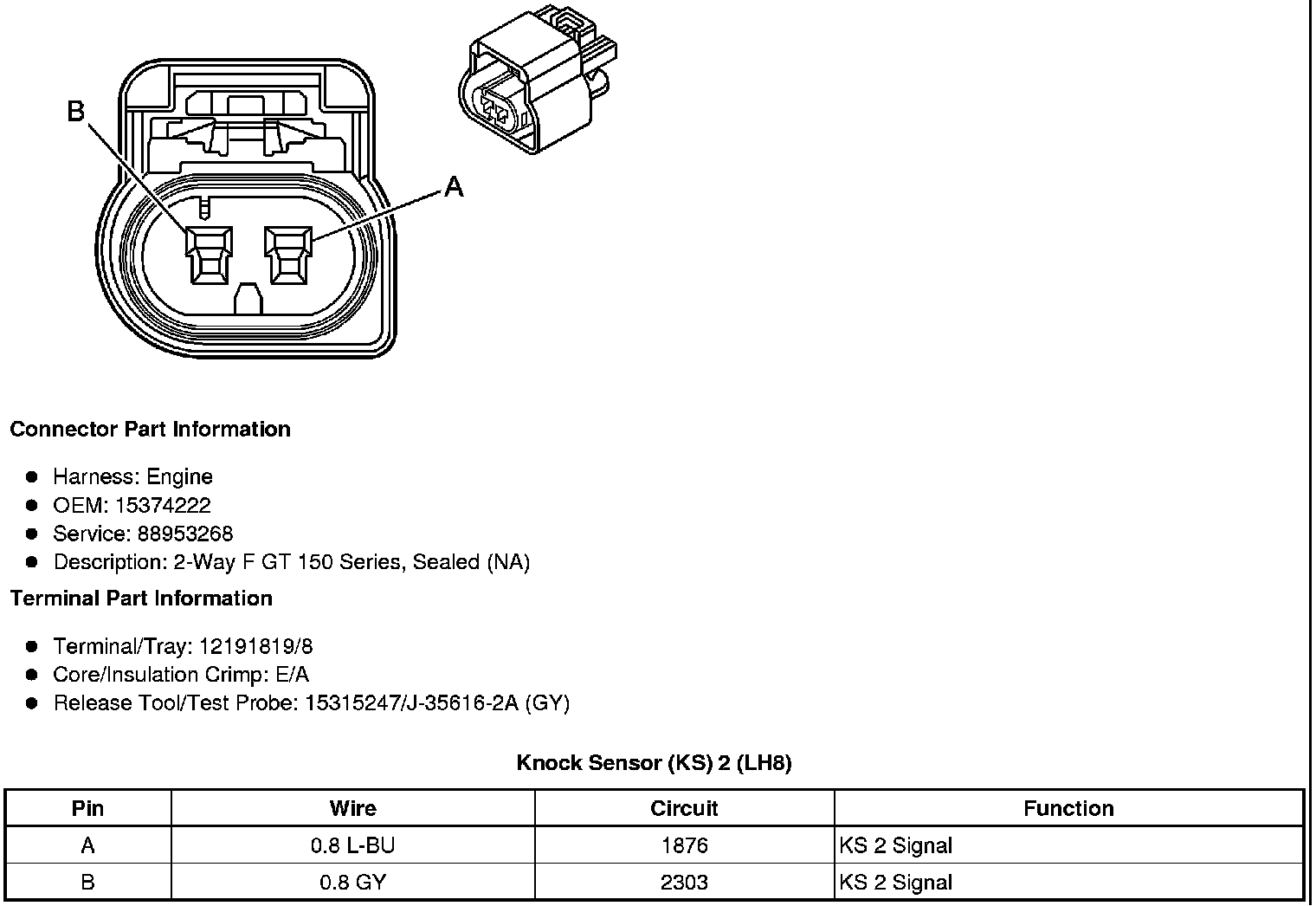

Knock Sensor (KS) 2 (LH8)
