Input Speed Sensor Removal

Input Speed Sensor Removal

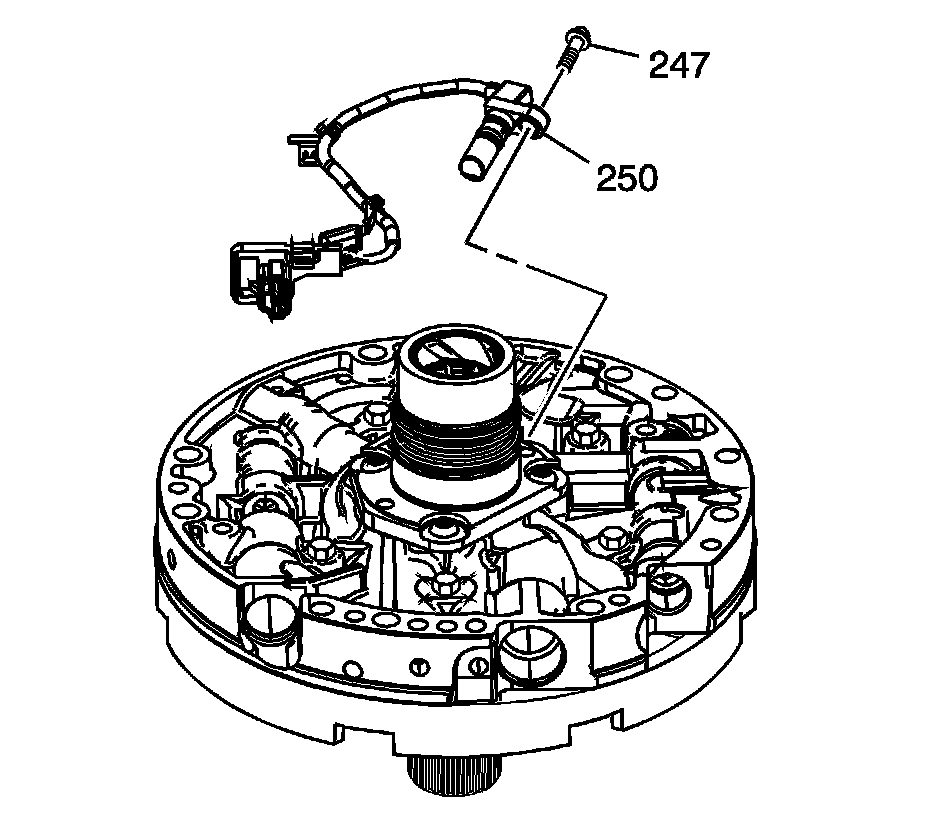

1. Remove the input speed sensor (ISS) retaining bolt (247).
2. Use a small tipped screwdriver to carefully pry the ISS wiring harness retaining brackets from the pump housing. Being careful not to damage retainer clips.
3. Remove the ISS assembly (250).
