Camshaft Position Sensor Replacement

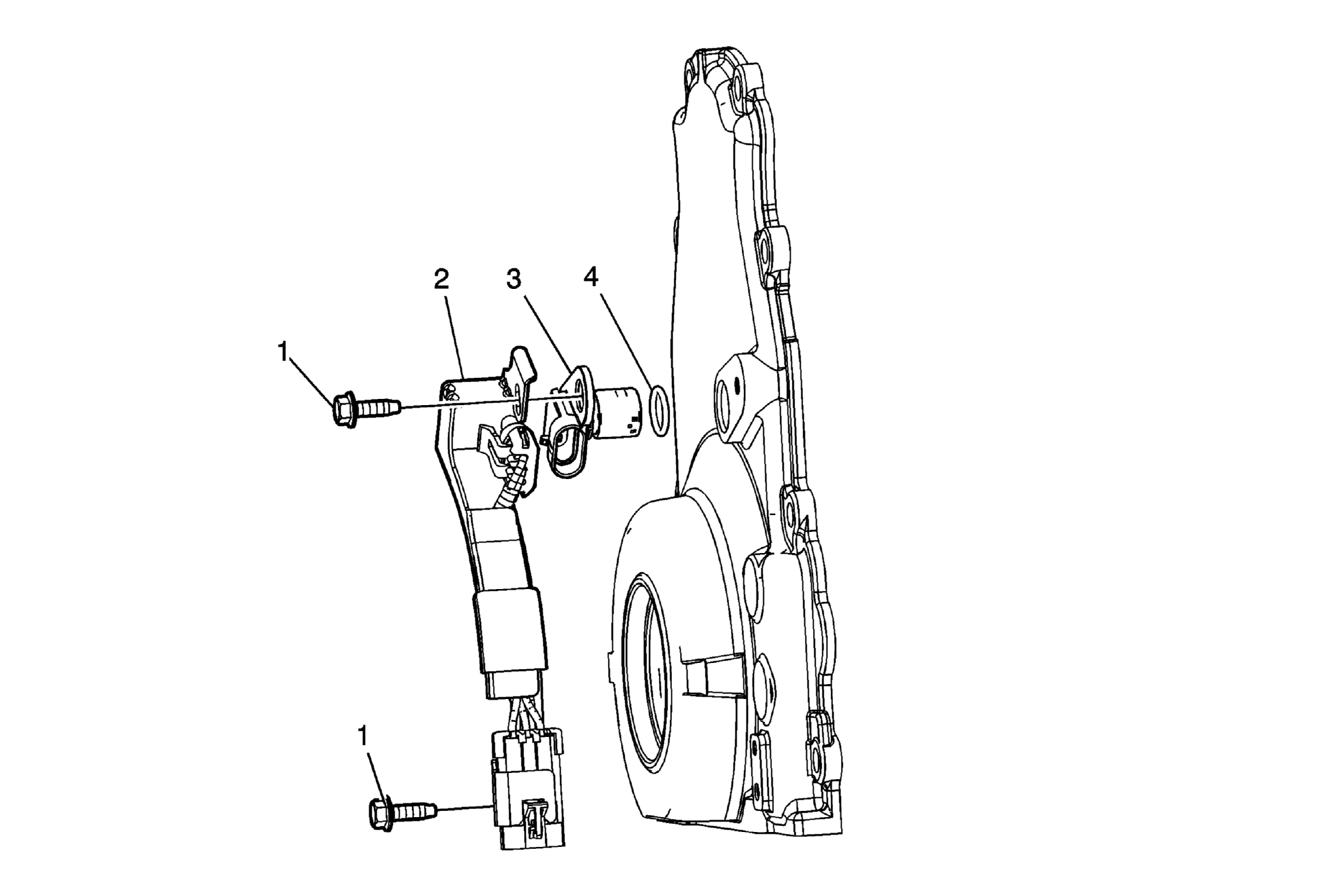

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Camshaft Position Sensor Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Procedure: Clean the area around the camshaft position (CMP) sensor before removal in order to prevent debris from entering the engine. Tighten: 12 N.m (106 lb in) |
| 2 | Camshaft Position Sensor Bracket Assembly Procedure: Disconnect the electrical connectors. |
| 3 | Camshaft Position Sensor |
| 4 | Camshaft Position Sensor O-ring Seal Procedure: Lubricate the O-ring seal with clean engine oil. |
