Special Tools

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS CORP.	CH 48027 Digital Pressure Gauge
Courtesy of GENERAL MOTORS CORP.	CH 48096 EVAP Service Access Port Tool

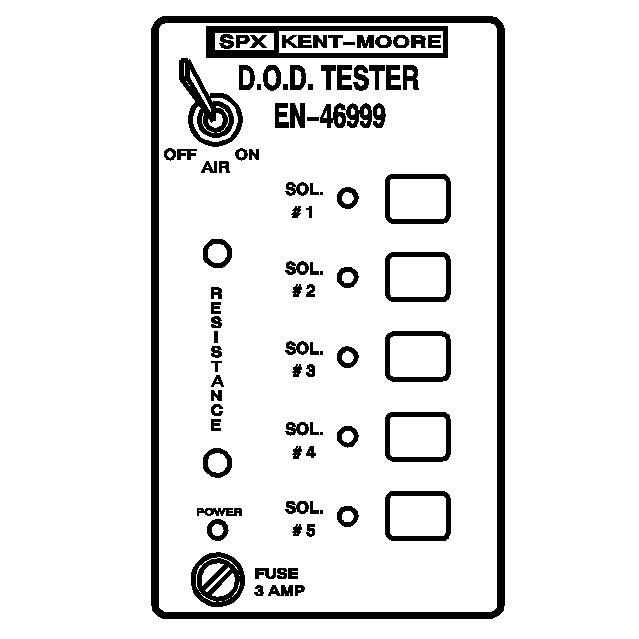

Courtesy of GENERAL MOTORS CORP.	EN 46999 Displacement on Demand Electric Tool

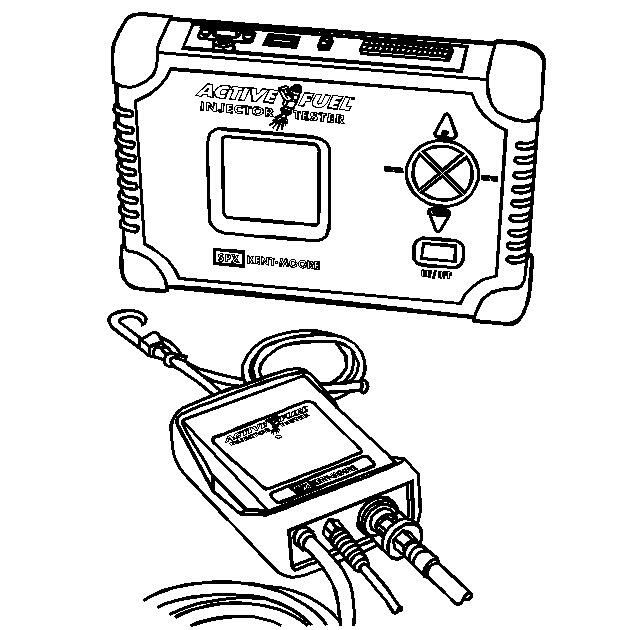

Courtesy of GENERAL MOTORS CORP.	CH 47976 Active Fuel Injector Tester
Courtesy of GENERAL MOTORS CORP.	GE 41415-50 Fuel Tank Cap Adapter
Courtesy of GENERAL MOTORS CORP.	J 23738-A Mityvac
Courtesy of GENERAL MOTORS CORP.	J 26792 HEI Spark Tester
Courtesy of GENERAL MOTORS CORP.	J 34730-1A Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	J 34730-405 Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 35555 Metal Mityvac
Courtesy of GENERAL MOTORS CORP.	J 35616-A GM-Approved Terminal Test Kit
Courtesy of GENERAL MOTORS CORP.	J 35616-A/BT-8637 Connector Test Adapter Kit
Courtesy of GENERAL MOTORS CORP.	J 35616-200 Test Light - Probe Kit
Courtesy of GENERAL MOTORS CORP.	J 35800-A Fuel Injector Cleaner
Courtesy of GENERAL MOTORS CORP.	J 36850 Transjel Lubricant
Courtesy of GENERAL MOTORS CORP.	J 37088-A Fuel Line Disconnect Tool Set
Courtesy of GENERAL MOTORS CORP.	J 37287 Fuel Line Shut-Off Adapters
Courtesy of GENERAL MOTORS CORP.	J 38522 Variable Signal Generator
Courtesy of GENERAL MOTORS CORP.	J 39021 Fuel Injector Coil and Balance Tester
Courtesy of GENERAL MOTORS CORP.	J 41413-SPT High Intensity White Light
Courtesy of GENERAL MOTORS CORP.	J 41413-VLV EVAP Service Port Vent Fitting
Courtesy of GENERAL MOTORS CORP.	J 41413-200 Evaporative Emissions System Tester
Courtesy of GENERAL MOTORS CORP.	J 41413-300 EVAP Cap and Plug Kit
Courtesy of GENERAL MOTORS CORP.	J 41413-311 EVAP Plug
Courtesy of GENERAL MOTORS CORP.	J 41415-40 Fuel Tank Cap Adapter
Courtesy of GENERAL MOTORS CORP.	J 42873-1 3/8 Fuel Line Shut-Off Valve
Courtesy of GENERAL MOTORS CORP.	J 42873-2 5/16 Return Pipe Shutoff Valve
Courtesy of GENERAL MOTORS CORP.	J 42960-2 Fuel Flapper Door Holder
Courtesy of GENERAL MOTORS CORP.	J 42964-1 3/8 Fuel Pipe Shut-Off Valve
Courtesy of GENERAL MOTORS CORP.	J 42964-2 5/16 Fuel Pipe Shut-Off Valve
Courtesy of GENERAL MOTORS CORP.	J 43244 Relay Puller Pliers
Courtesy of GENERAL MOTORS CORP.	J 44175 Fuel Composition Tester
Courtesy of GENERAL MOTORS CORP.	J 44602 Injector Test Adapter
Courtesy of GENERAL MOTORS CORP.	J 44603 Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 45004 Fuel Tank Drain Hose
Courtesy of GENERAL MOTORS CORP.	J 45722 Fuel Sender Lock Ring Wrench
