Installation Procedure

  1. Install the steering gear to the vehicle.

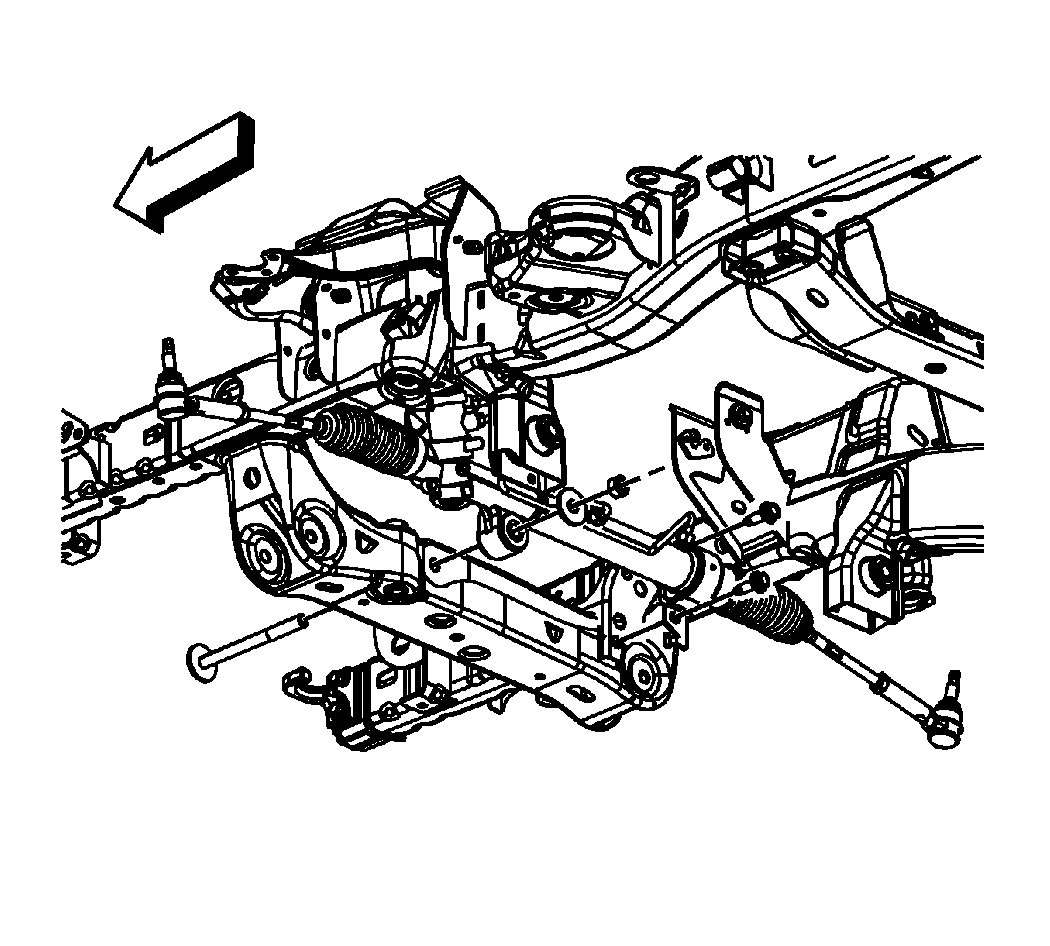

    2. Fig 1: View Of Steering Gear Horizontal Mounting Bolts
    GM1207227Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
    NOTE: Hand start all bolts before finalizing any torques.
  2. Install the steering gear bracket and bolts and tighten to 100 N.m (74 lb ft).
  3. Install the horizontal steering gear nut, washer, and bolt. Tighten the bolt to 130 N.m (96 lb ft).

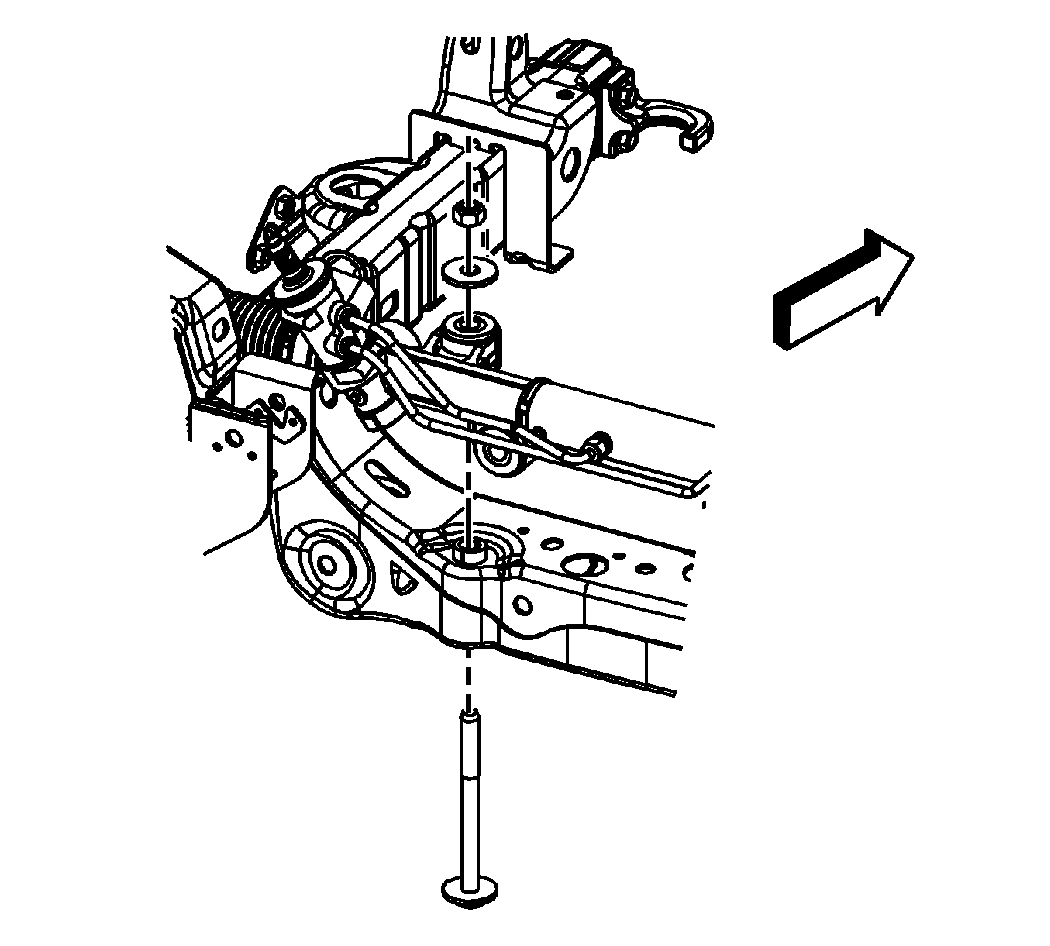

    4. Fig 2: View Of Steering Gear Vertical Mounting Bolts
    GM1207228Courtesy of GENERAL MOTORS CORP.
  4. Install the vertical steering gear nut, washer, and bolt. Tighten the bolt to 130 N.m (96 lb ft).
  5. Connect the lower intermediate steering shaft. Refer to Lower Intermediate Steering Shaft Replacement .

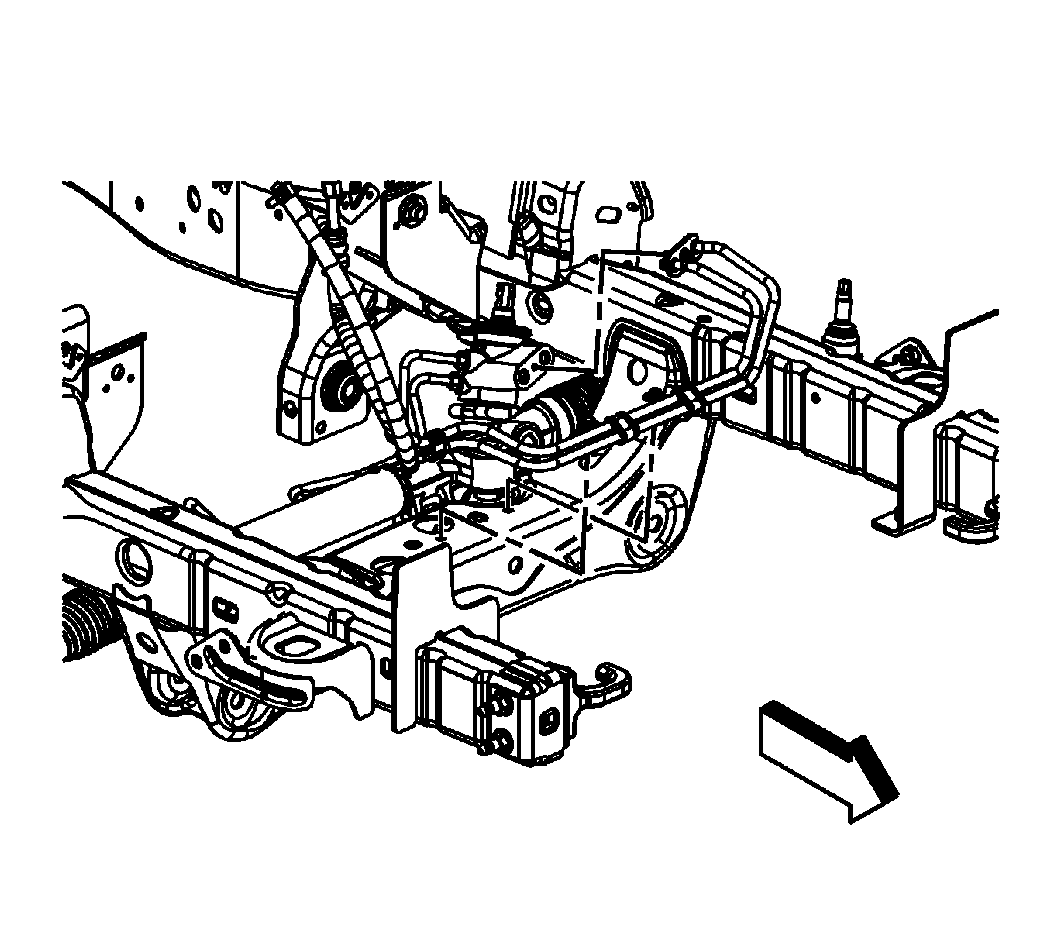

    6. Fig 3: View Of Power Steering Hose Assembly
    GM1207235Courtesy of GENERAL MOTORS CORP.
  6. Connect the power steering gear inlet and outlet hose to the steering gear. Refer to Power Steering Gear Inlet and Outlet Hose Replacement (LLR)  or Power Steering Gear Inlet and Outlet Hose Replacement (LH8) .
  7. Install the engine shield, if equipped. Refer to Engine Shield Replacement .
  8. Install the rack and pinion outer tie rod ends to the steering knuckles. Refer to Steering Linkage Outer Tie Rod Replacement .
  9. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
  10. Adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
