Installation Procedure

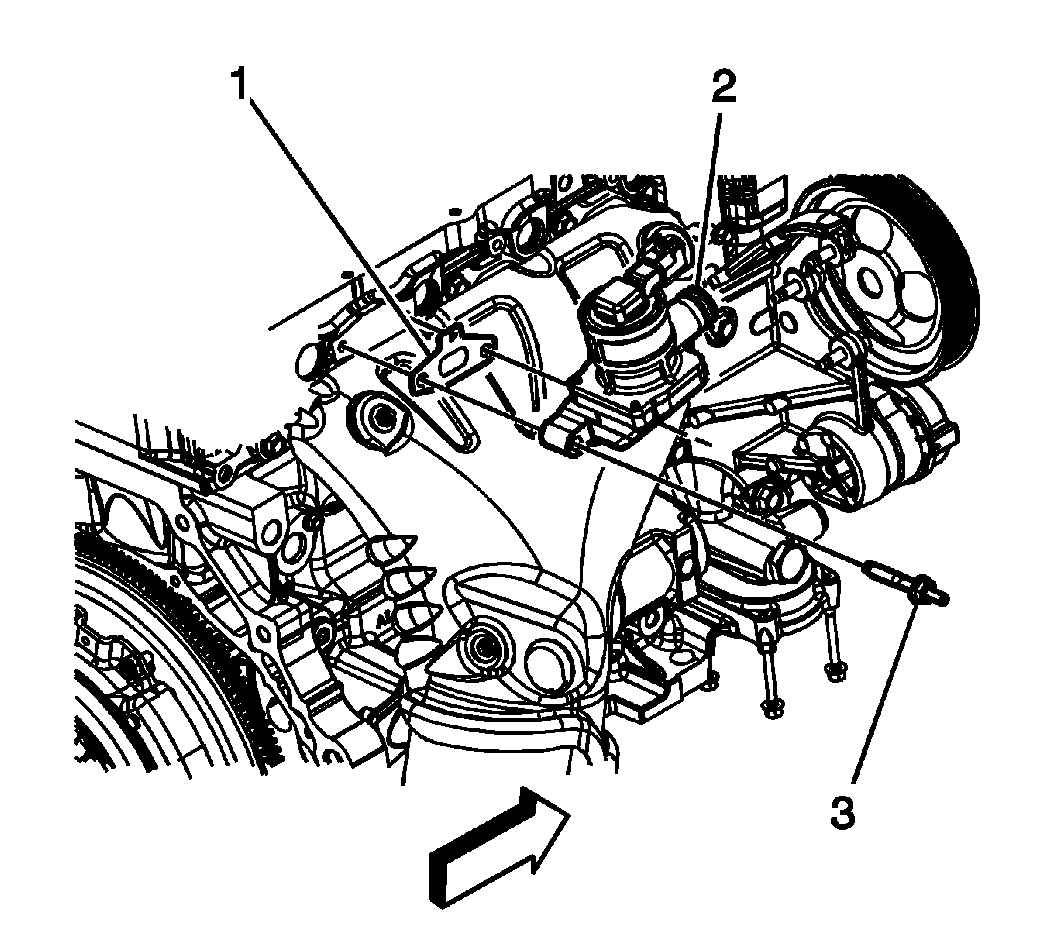

    Fig 1: Locating Air Injection (AIR) Check Valve Gasket
    GM1749363Courtesy of GENERAL MOTORS CORP.
  1. Place a NEW AIR check valve gasket (1) between the engine and the valve.
  2. Position the AIR check valve (2) to the engine.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the AIR check valve studs (3).

    Tighten:  Tighten to studs to 25 N.m (18 lb ft).

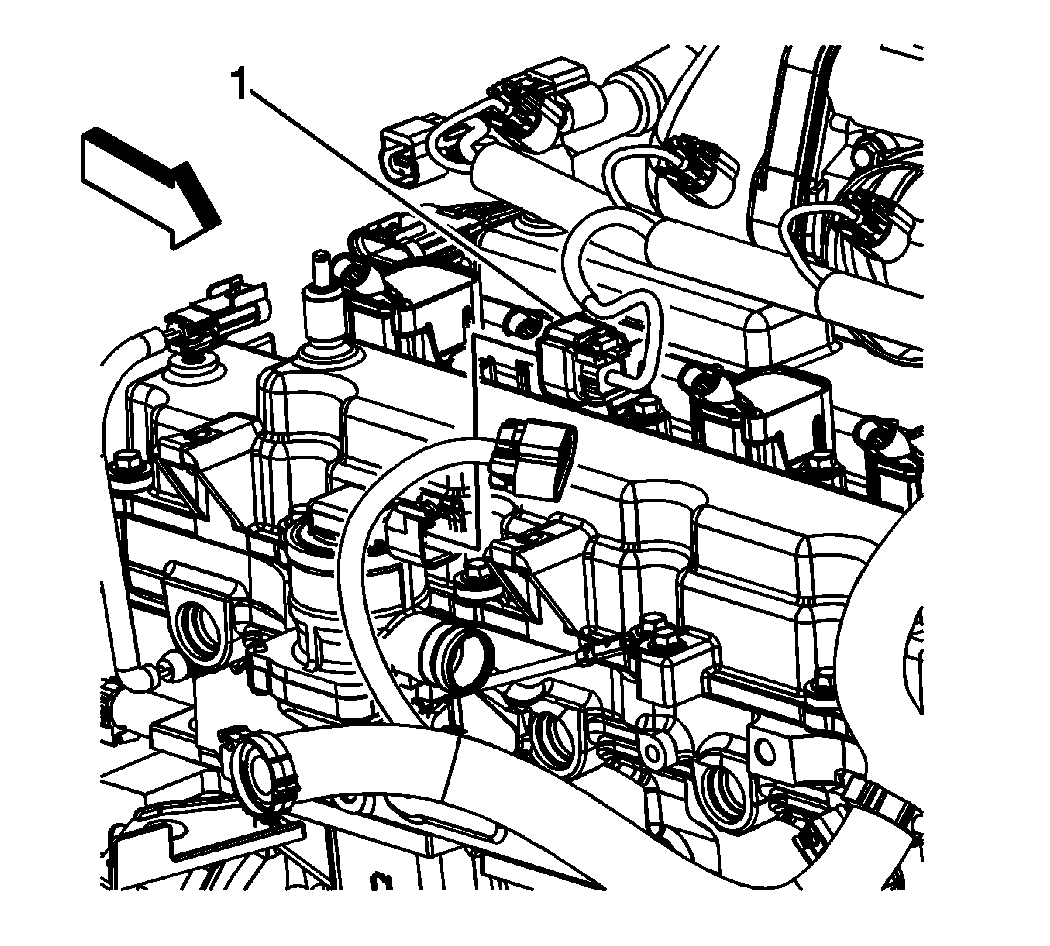

    4. Fig 2: Locating Air Injection (AIR) Check Valve & Studs
    GM1749361Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the AIR check valve.

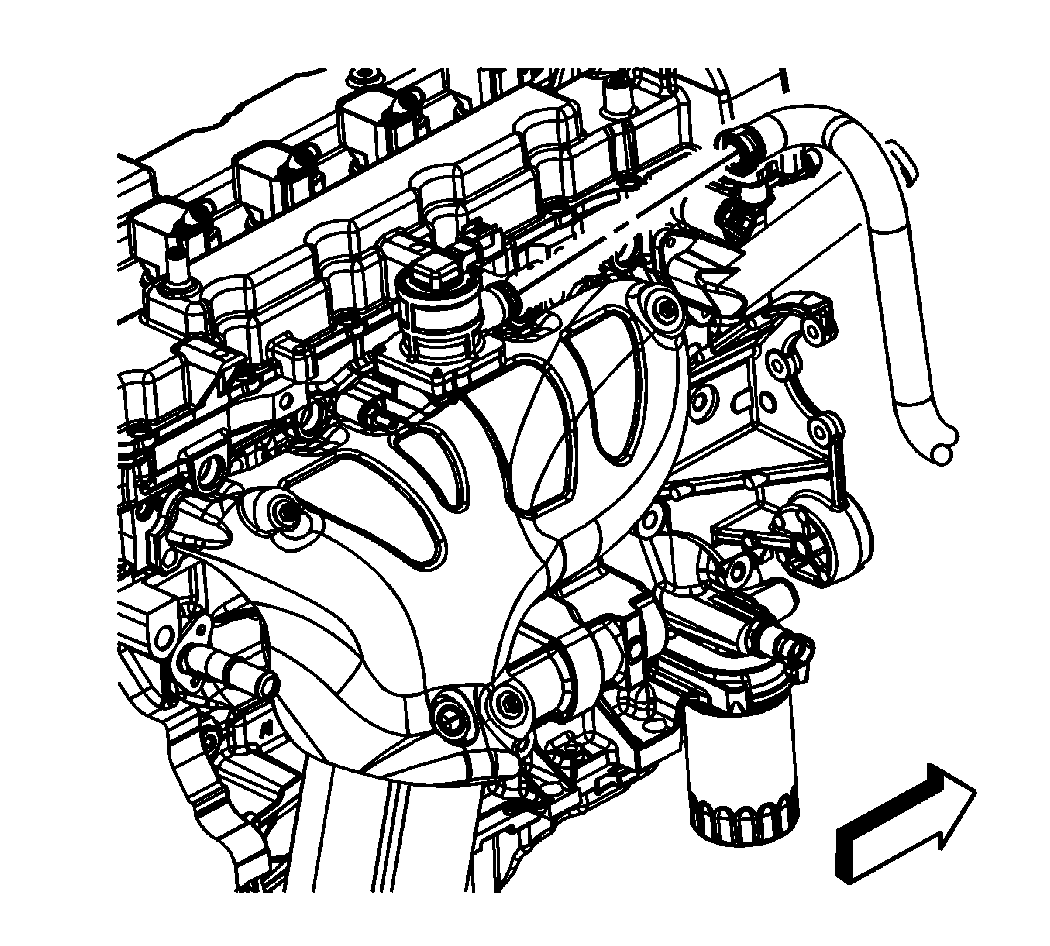

    5. Fig 3: Locating Air Injection (AIR) Pump Outlet Hose
    GM1749355Courtesy of GENERAL MOTORS CORP.
  5. Connect the AIR pump outlet hose quick connect fitting to the AIR check valve. Refer to Plastic Collar Quick Connect Fitting Service .
  6. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  7. Close the hood.
