Object Detection Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

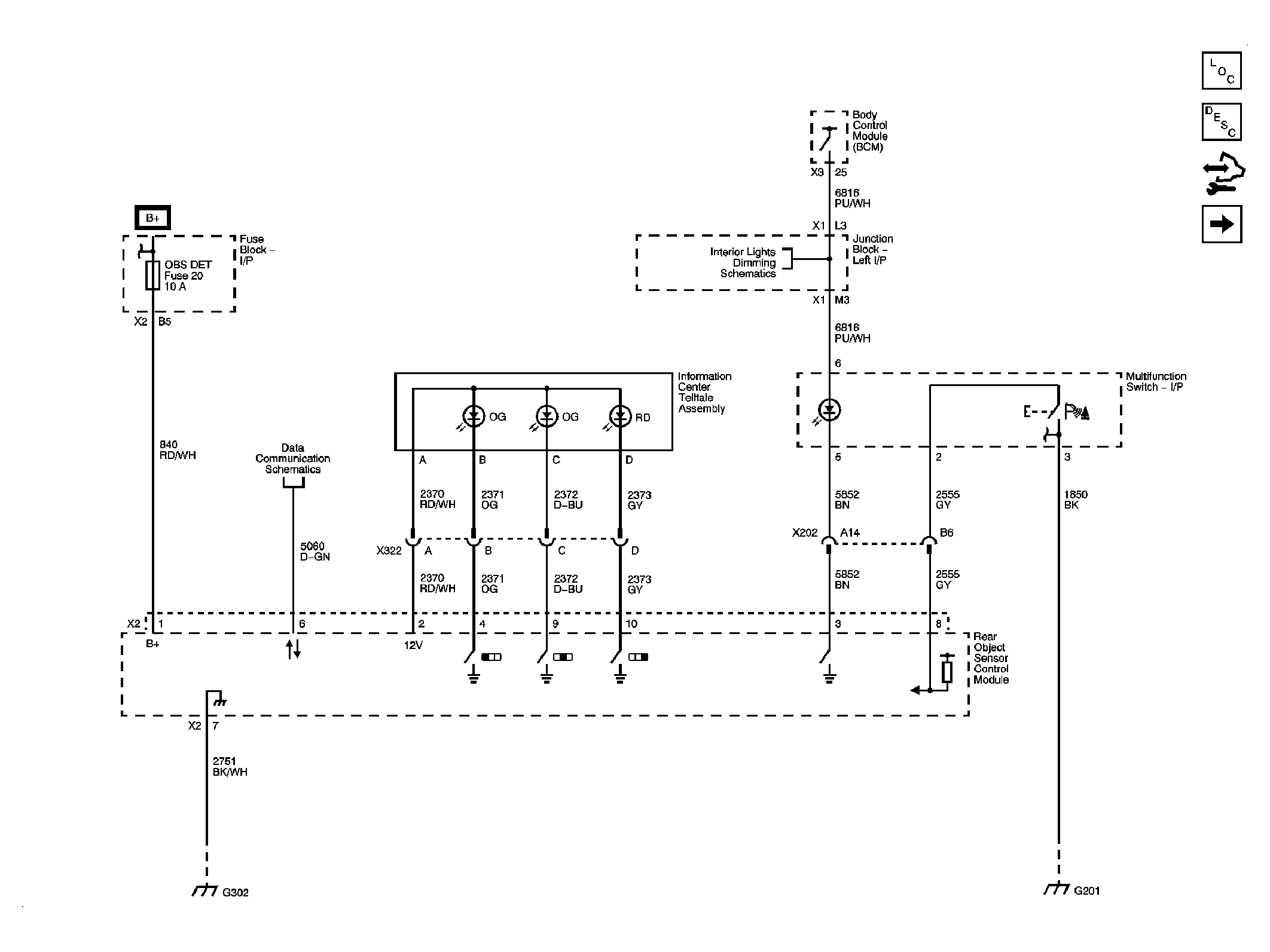

Fig 1: Rear Object Sensing (UD7) Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

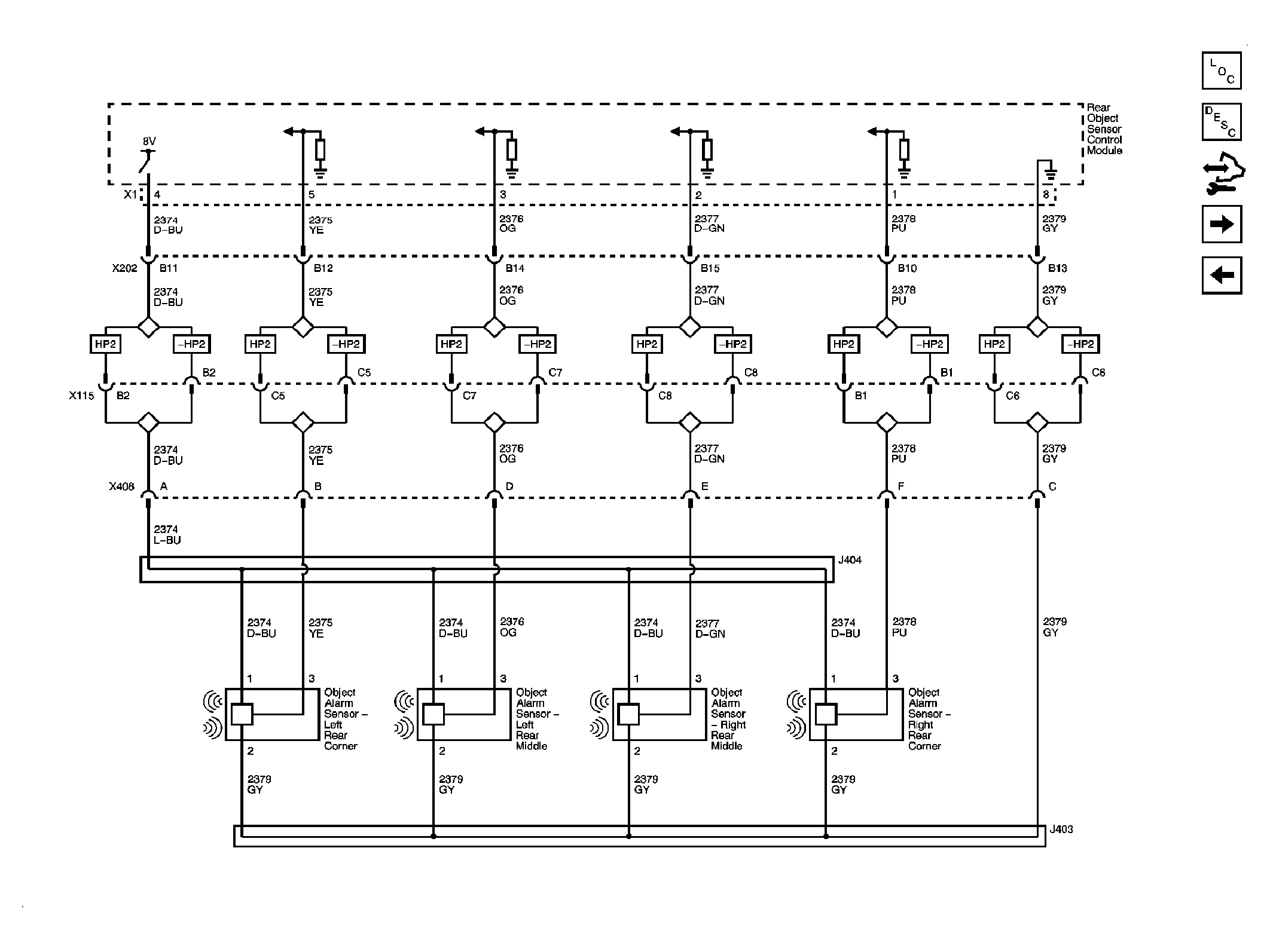

Fig 2: Rear Object Sensors (UD7) Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

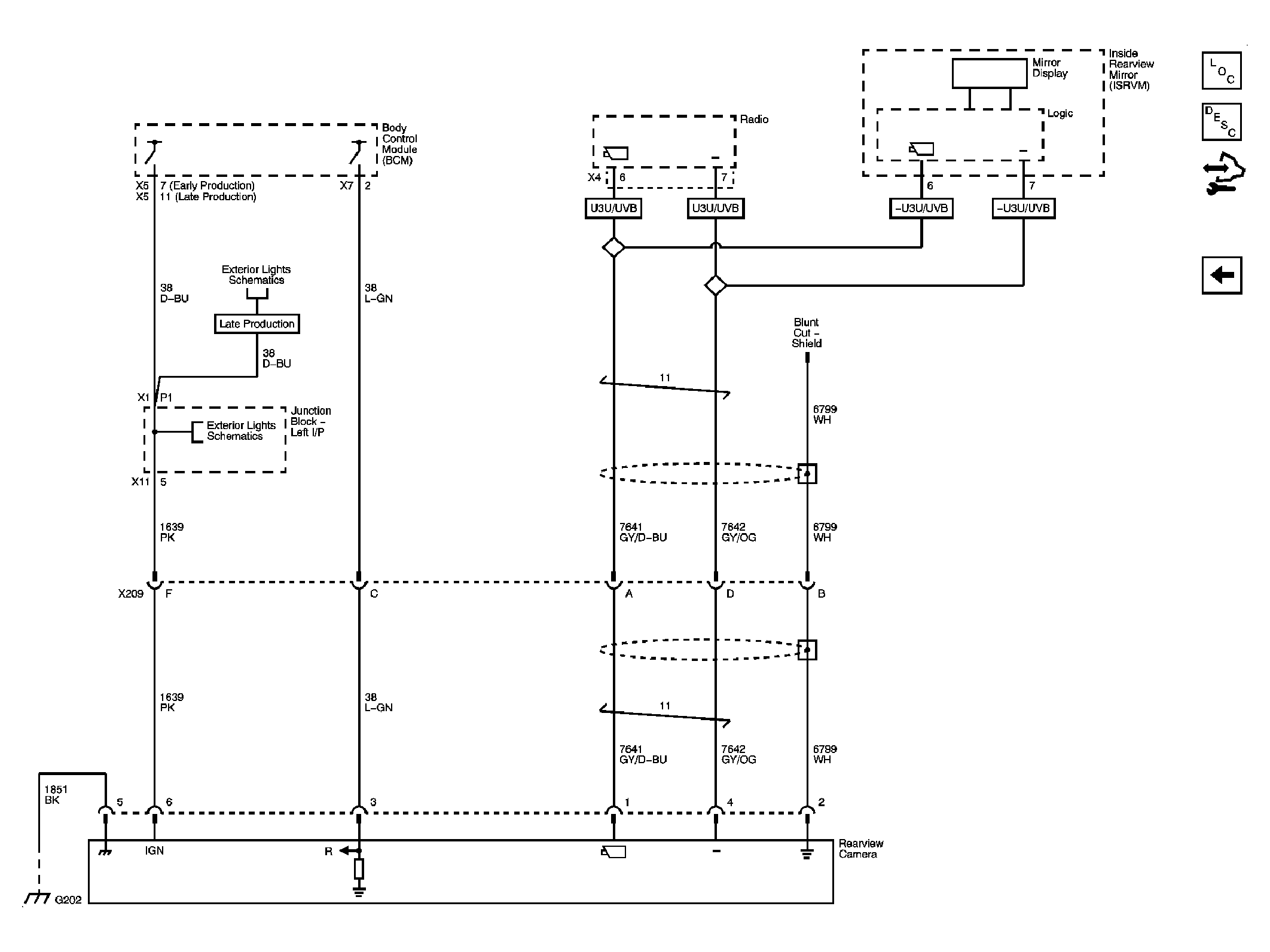

Fig 3: Rearview Camera (SVA) Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
