Remote Control Door Lock Receiver Antenna Replacement

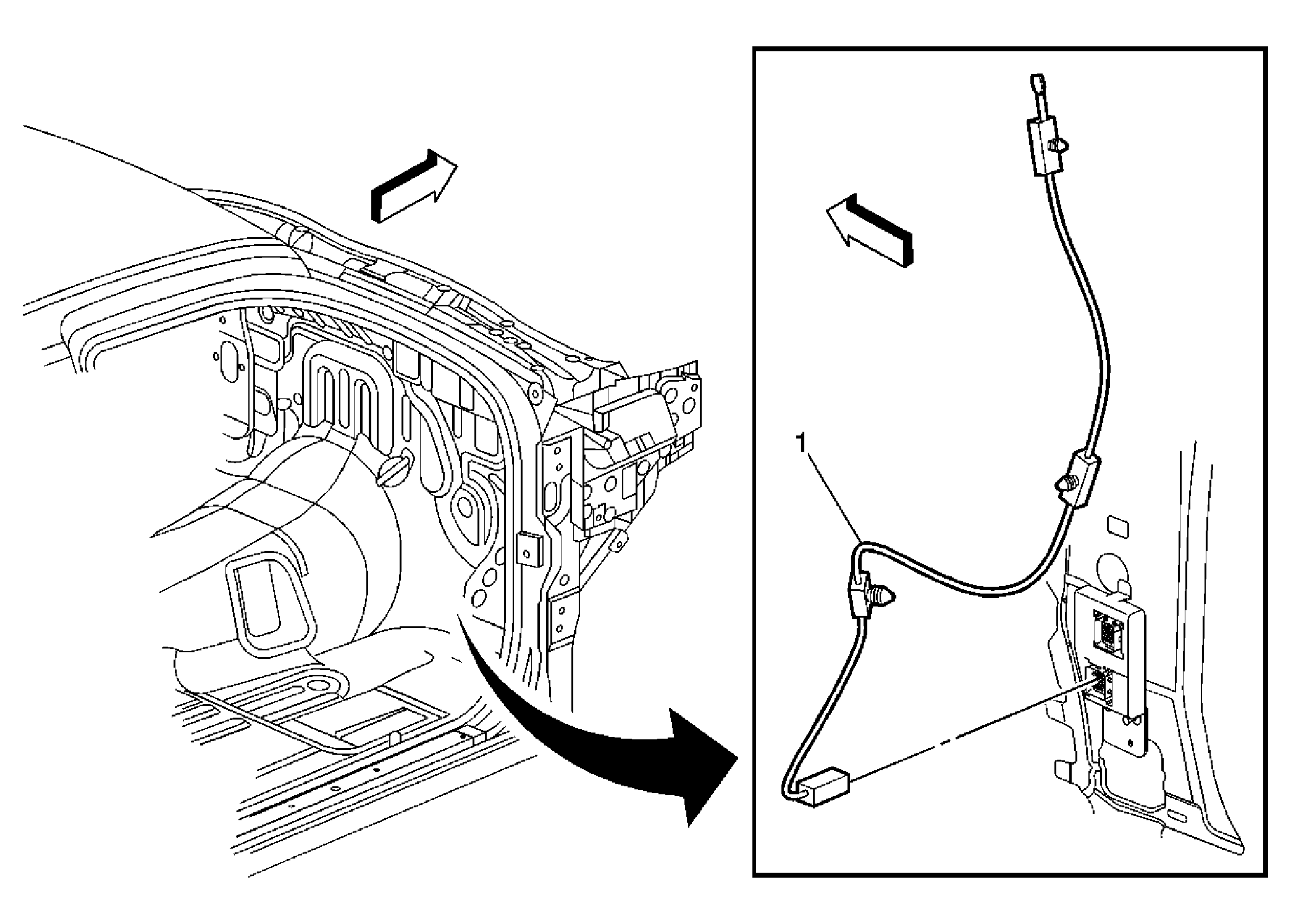

Fig 1: Remote Control Door Lock Receiver Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the cowl side trim panel. Refer to Cowl Side Trim Panel Replacement .
1	Remote Control Door Lock Receiver Antenna Procedure Disconnect the antenna from the BCM module. Unclip the three integral clips. Note routing of antenna for reinstallation.

Callout

Component Name

Preliminary Procedure:
Remove the cowl side trim panel. Refer to Cowl Side Trim Panel Replacement .

Remote Control Door Lock Receiver Antenna

Procedure
