H3 Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Lock Control
>>
Schematic and Routing Diagrams
>>
Shift Lock Control Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Shift Lock Control Schematics

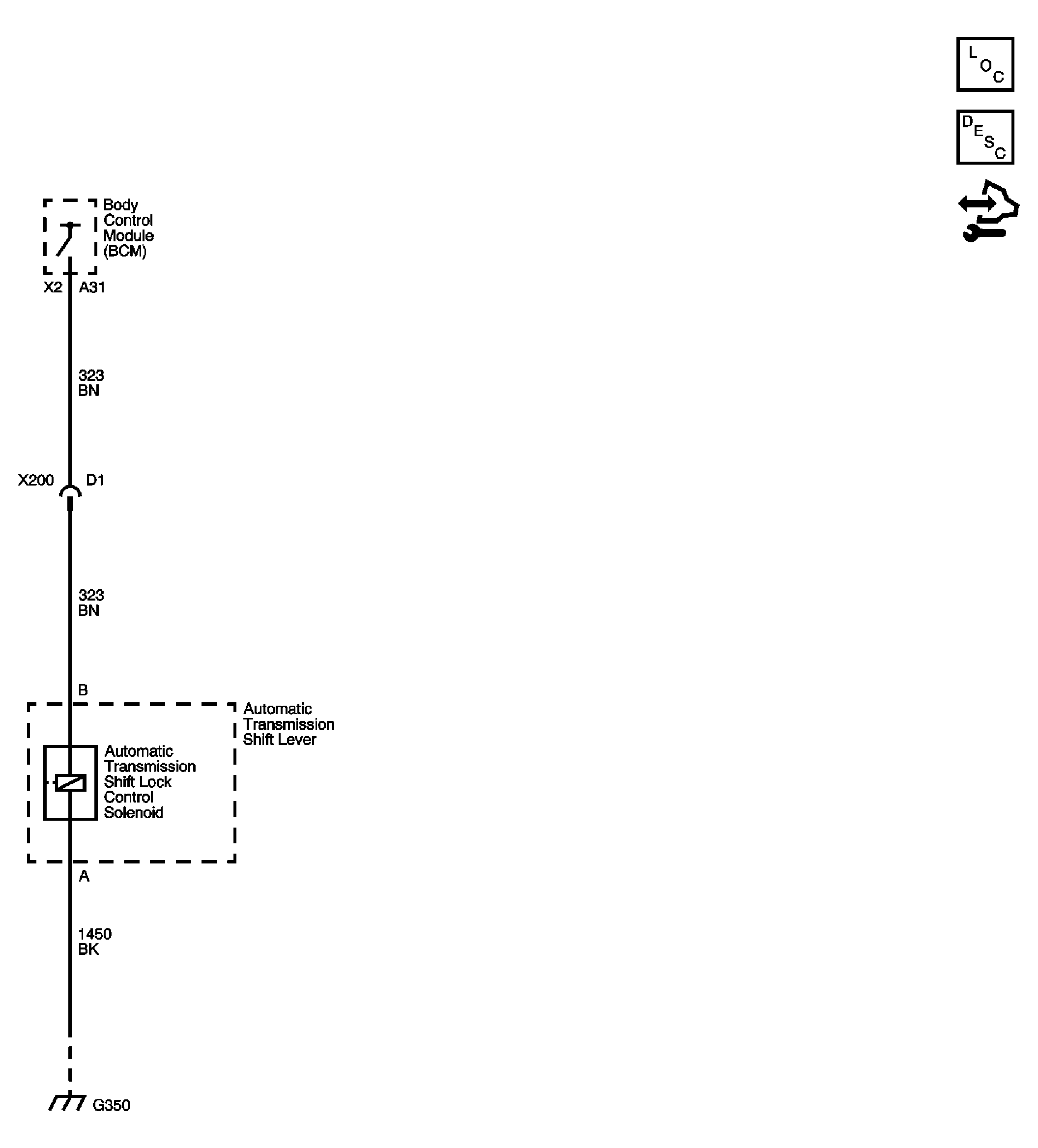

Fig 1: Shift Lock Control
Courtesy of GENERAL MOTORS CORP.
