Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|

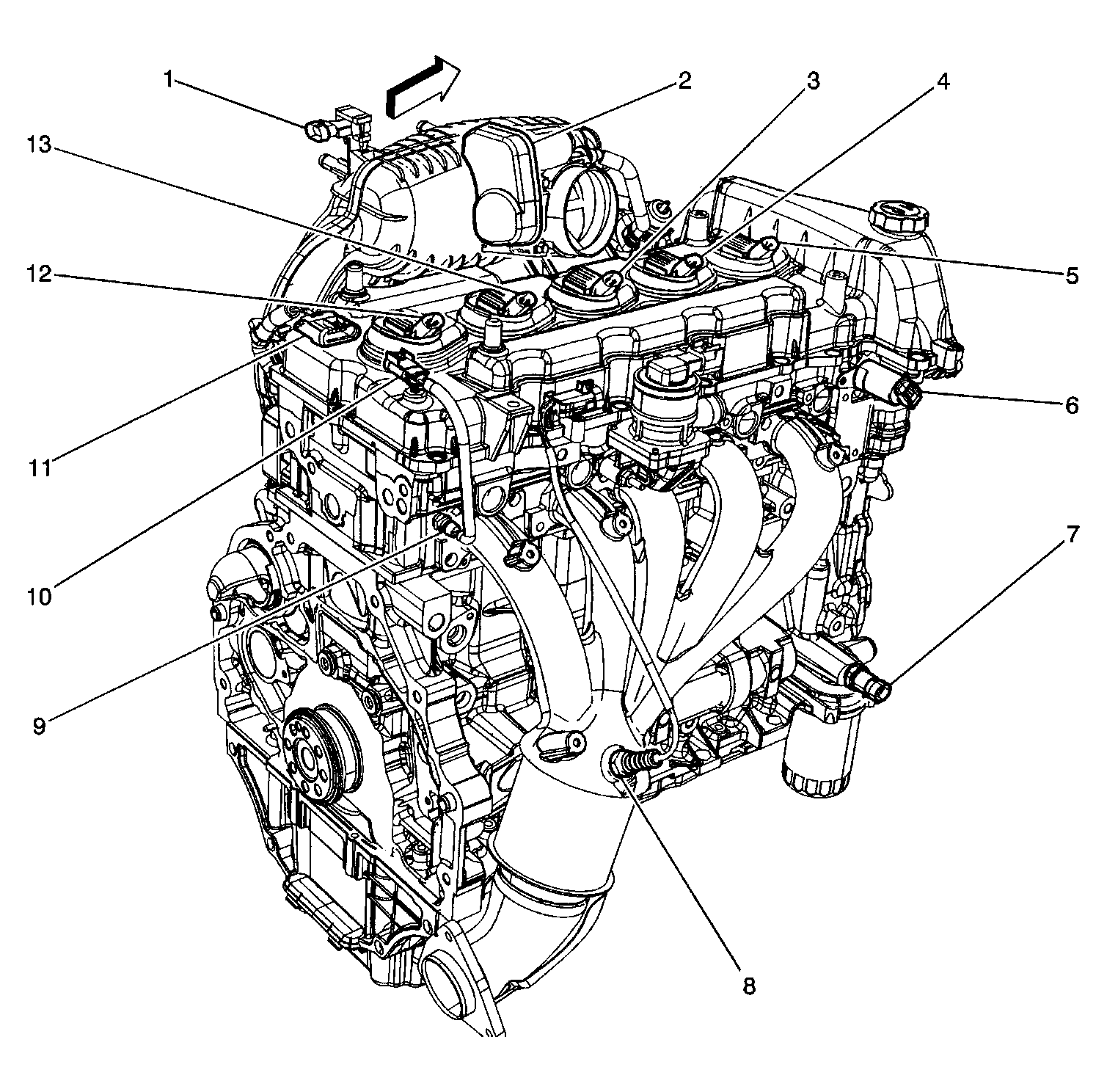

| X101 (Black, 6 Pin) (11) | Rear center of engine. See Figure. |
| X102 (Black, 16 Pin) | Right side of engine compartment. See Figure. |
| X103 (5.3L) (Black, 5 Pin) | Engine harness. See Figure. |
| X111 (Black, 8 Pin) | Left side of engine. See Figure. |
| X113 (Black, 8 Pin) | Right side of engine. See Figure. |
| X115 (Black, 16 Pin) (8) | Right of left front fog lamp. See Figure. |
| X116 (Black, 8 Pin) (9) | Behind left headlamp assembly. See Figure. |
| X117 (Black, 8 Pin) (6) | Behind right headlamp assembly. See Figure. |
| X125 (Black, 16 Pin) | Left side of engine compartment. See Figure. |
| X130 (Black, 2 Pin) (10) | In body harness to battery cable harness. See Figure. |
| X150 (Black, 40 Pin) (11) | Behind battery next to EBCM. See Figure. |
| X155 (Black, 4 Pin) (12) | Next to EBCM. See Figure. |
| X175 (Black, 20 Pin) | Right side of transmission. See Figure. |
| X200 (Black, 40 Pin) (5) | Behind left of dash. See Figure. |
| X201 (Light Gray, 22 Pin) (3) | Base of steering column. See Figure. |
| X203 (White, 8 Pin) (3) | Near blower motor. See Figure. |
| X204 (Black, 40 Pin) (4) | Behind right kick panel. See Figure. |
| X205 (White, 40 Pin) (5) | Near blower motor. See Figure. |
| X206 (Black, 8 Pin) | Base of right "A" pillar. |
| X207 (White, 12 Pin) (6) | Behind left of dash. See Figure. |
| X208 (Yellow, 4 Pin) (4) | Behind left of dash. See Figure. |
| X270 (Black, 6 Pin) | Behind center of dash. |
| X271 (Black, 2 Pin) | Behind center of dash. |
| X275 (Yellow, 4 Pin) (7) | Next to X201. See Figure. |
| X307 (White, 8 Pin) (7) | Under driver seat. See Figure. |
| X308 (White, 4 Pin) (8) | In body harness to driver seat belt switch jumper harness. See Figure. |
| X315 (White, 12 Pin) (6) | Under passenger seat. See Figure. |
| X318 (Black, 4 Pin) (7) | In passenger seat bottom. See Figure. |
| X319 (Black, 4 Pin) | In driver seat bottom. |
| X320 (W/O Seat Heater) (White, 4 Pin) (5) | In body harness to passenger seat belt switch jumper harness. See Figure. |
| X320 (W/Seat Heater) (White, 8 Pin) (5) | In body harness to passenger seat belt switch jumper harness. See Figure. |
| X321 (Black, 2 Pin) | Under driver's seat. |
| X322 (Black, 2 Pin) | Under passenger's seat. |
| X323 (Black, 4 Pin) | Top of left "B" pillar. |
| X324 (Black, 4 Pin) | Top of right "B" pillar. |
| X330 (White, 8 Pin) (2) | Behind upper left "A" pillar trim panel. See Figure. |
| X335 (White, 6 Pin) (4) | Behind upper left "A" pillar trim panel. See Figure. |
| X350 (White, 6 Pin) (1) | Behind right lower "A" pillar trim. See Figure. |
| X370 (White, 12 Pin) (8) | In left rear passenger door. See Figure. |
| X371 (Black, 6 Pin) | Under driver's seat. |
| X372 (Black, 6 Pin) | Under driver's seat. |
| X373 (Black, 6 Pin) | Under driver's seat. |
| X374 (Black, 6 Pin) | Under driver's seat. |
| X380 (White, 12 Pin) (2) | In right rear passenger door. See Figure. |
| X410 (H3T) (Black, 8 Pin) | Outside of right rear frame rail. |

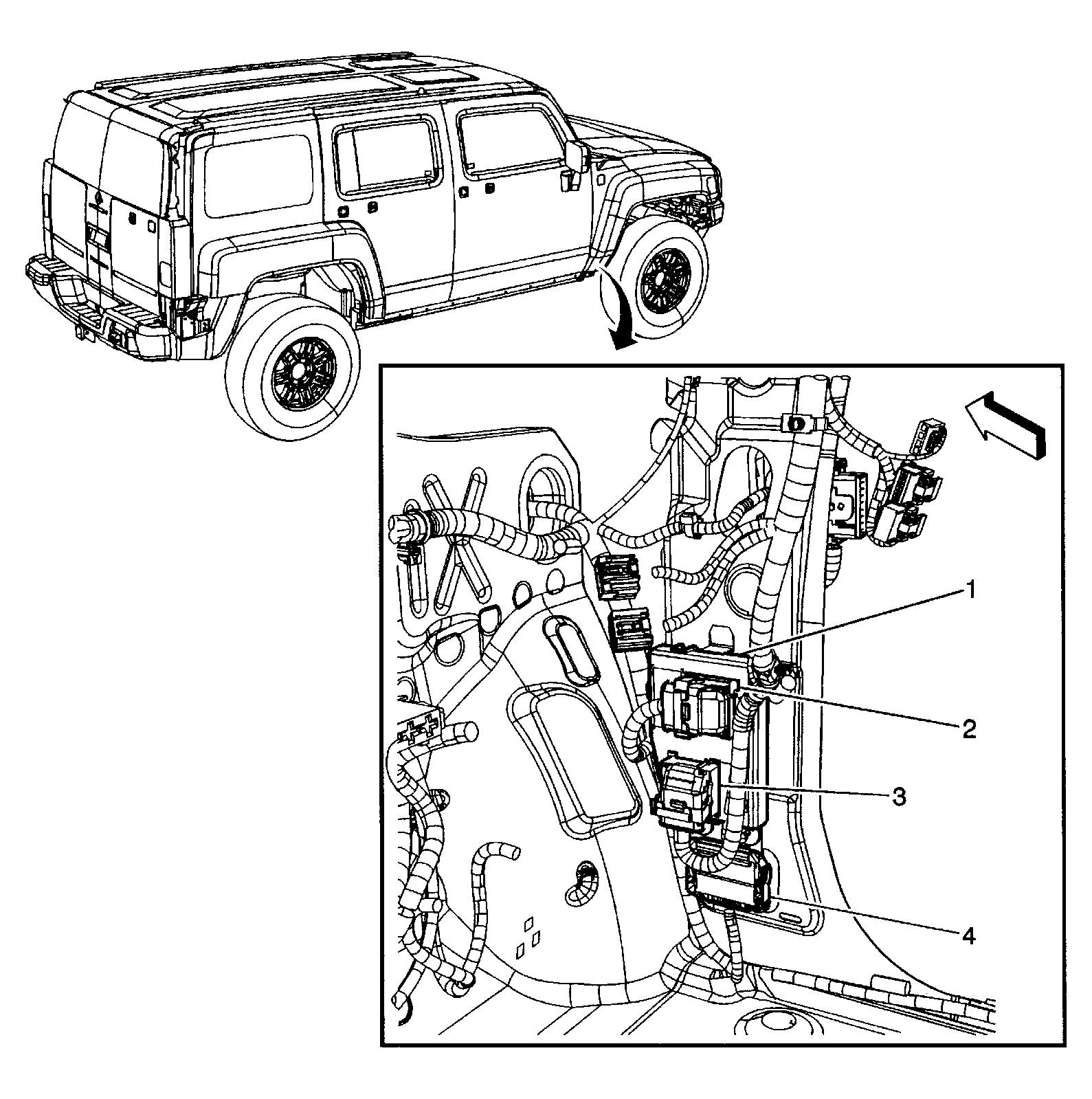

| X410 (SUV) (Black, 4 Pin) (4) | Behind right rear quarter trim panel near "D" pillar. See Figure. |
| X420 (W/Heavy Duty Harness) (Black, 16 Pin) | Rearward of left wheelwell. |
| X420 (W/O Heavy Duty Harness) (Black, 4 Pin) | Rearward of left wheelwell. |
| X430 (H3T) (White, 8 Pin) | Outside left rear frame rail. |
| X430 (SUV) (White, 4 Pin) (1) | Behind left rear quarter trim panel near "D" pillar. See Figure. |
| X450 (White, 12 Pin) (8) | Behind left rear quarter trim panel near "D" pillar. See Figure. |
| X460 (Black, 2 Pin) | License lamp harness to rear fog lamp harness. |

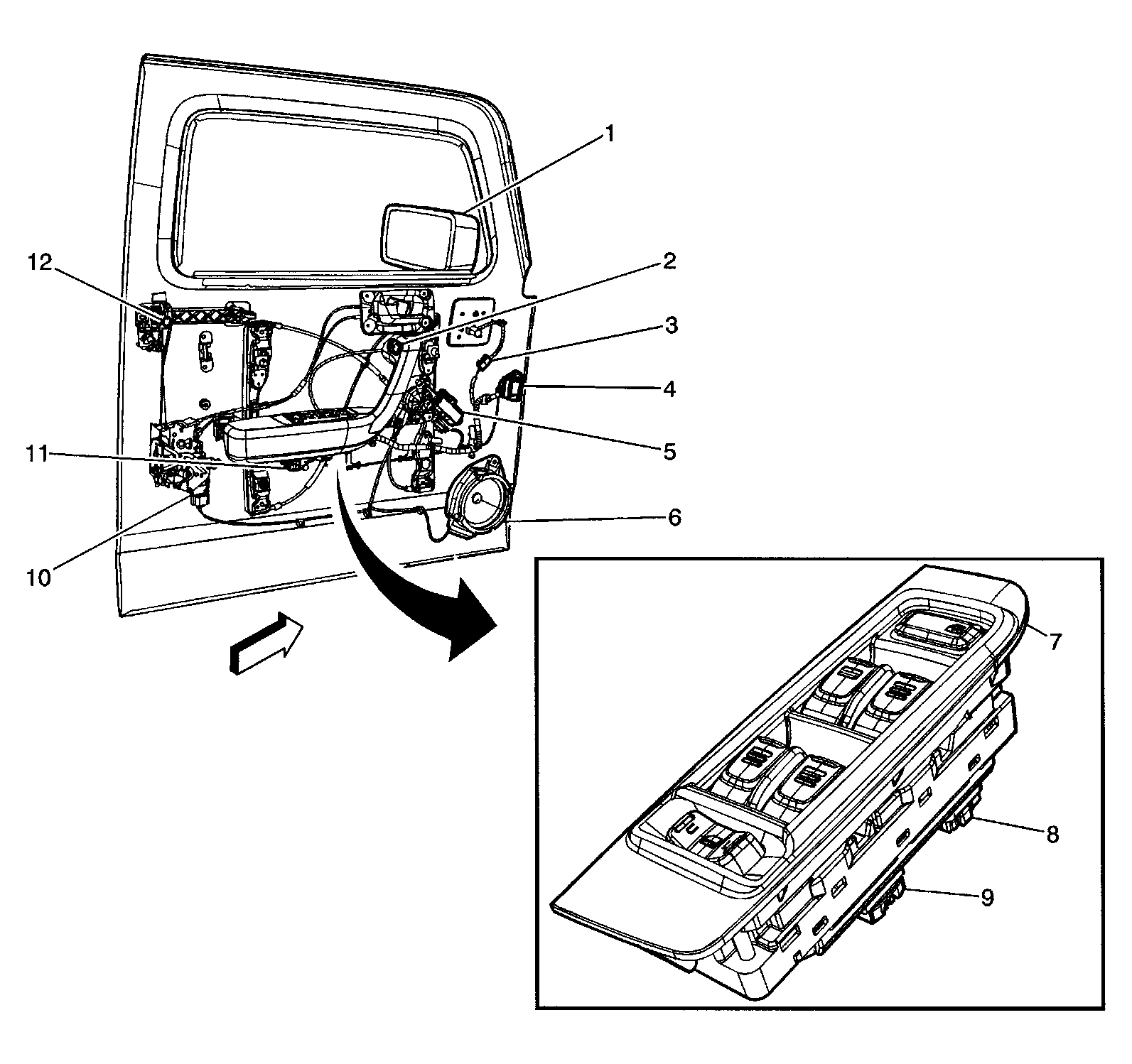

| X500 (White, 30 Pin) (4) | In driver door. See Figure. |
| X510 (White, 8 Pin) (3) | Inside middle front of drivers door, near "A" pillar. See Figure. |
| X600 (White, 30 Pin) (2) | Body harness to passenger door harness, in passenger door. See Figure. |
| X700 (White, 12 Pin) | Left "B" pillar body harness to rear door harness. |
| X800 (White, 12 Pin) | Right "B" pillar body harness to left rear door harness. |
| X901 (White, 12 Pin) (7) | Left middle of end gate near pass-through. See Figure. |
| X905 (White, 12 Pin) | "D" pillar body harness to endgate harness. |
