Connector Views




Component Connector End Views

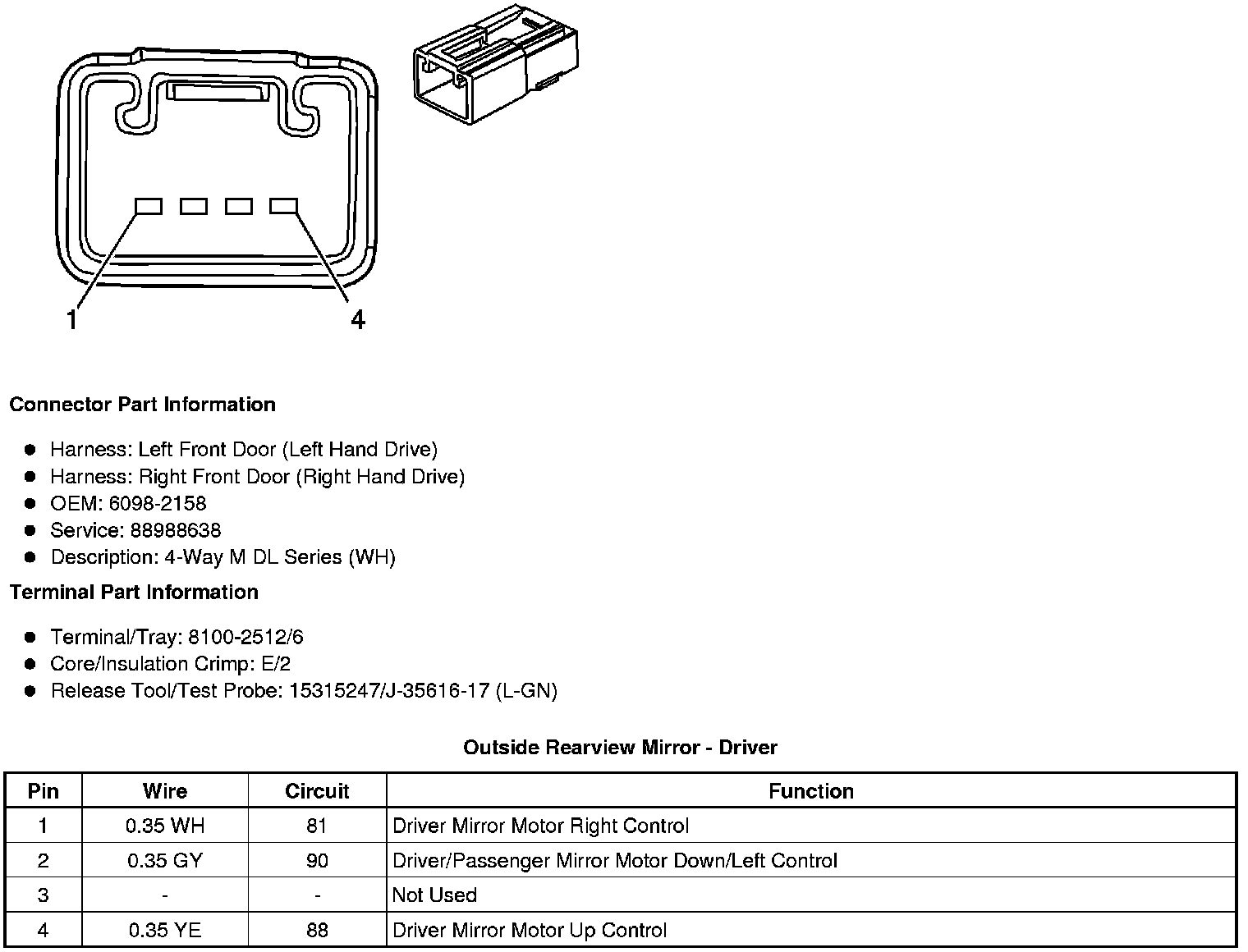

Outside Rearview Mirror - Driver

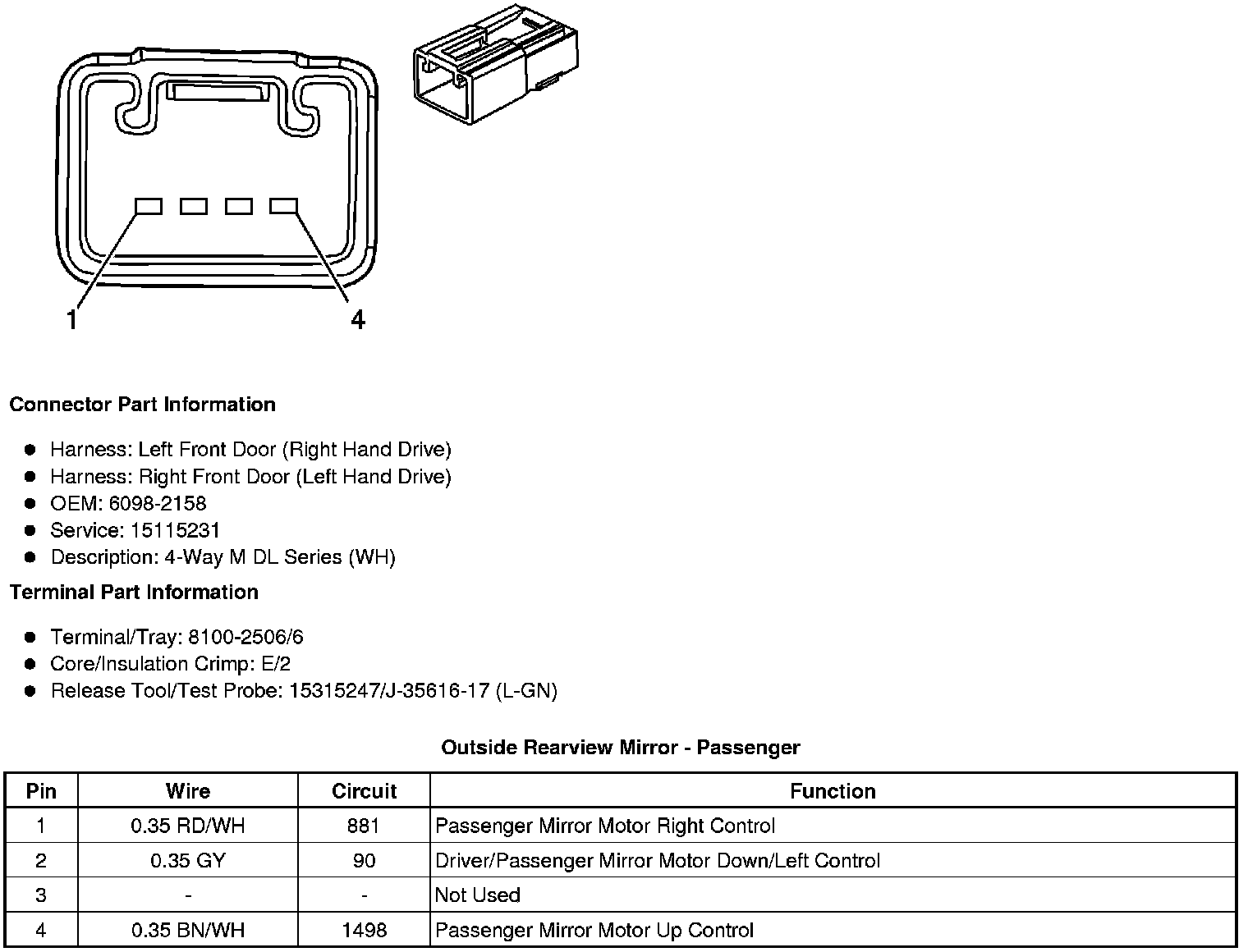

Outside Rearview Mirror - Passenger

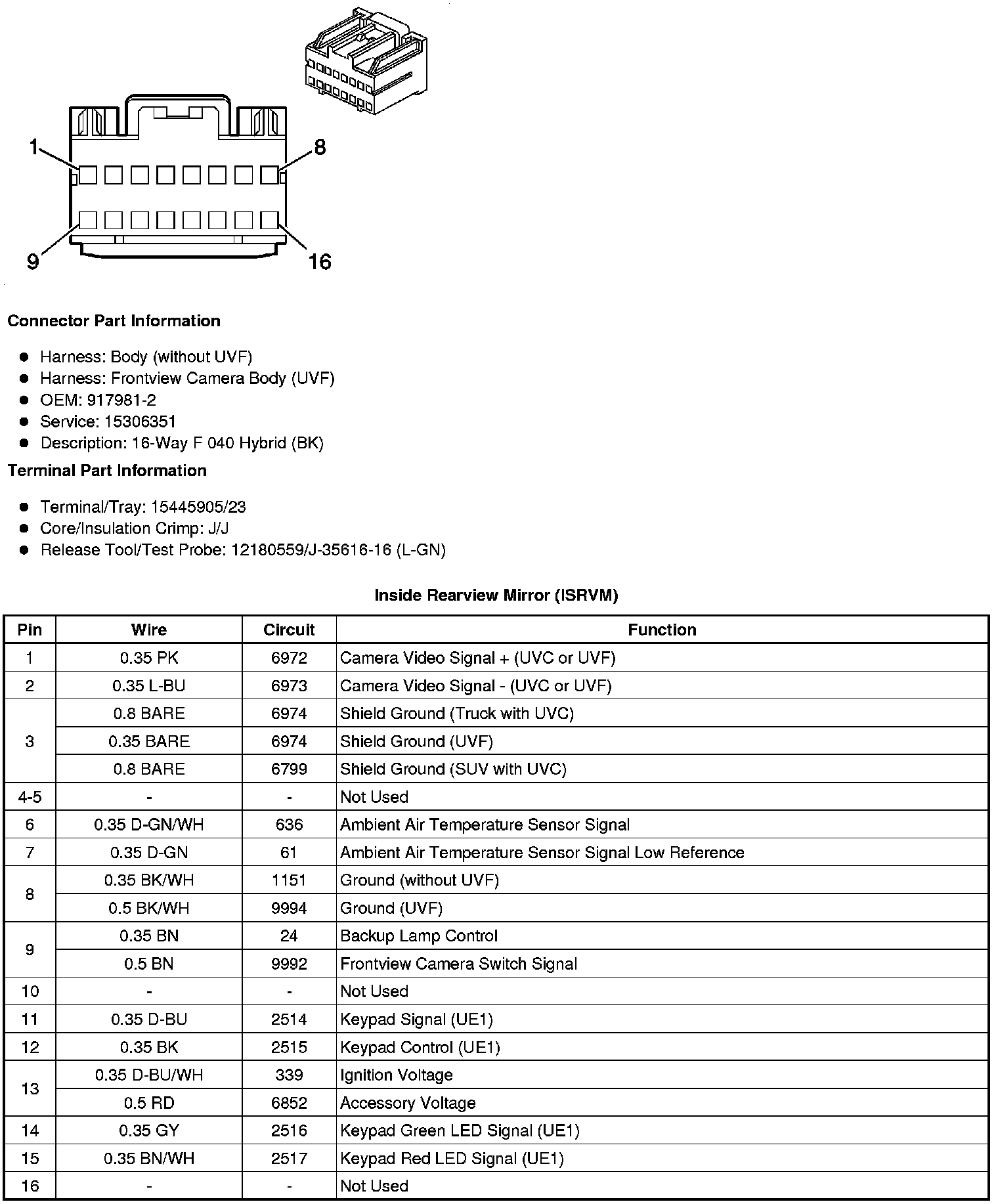

Inside Rearview Mirror (ISRVM)
