Exterior View Display Monitor




Component Connector End Views

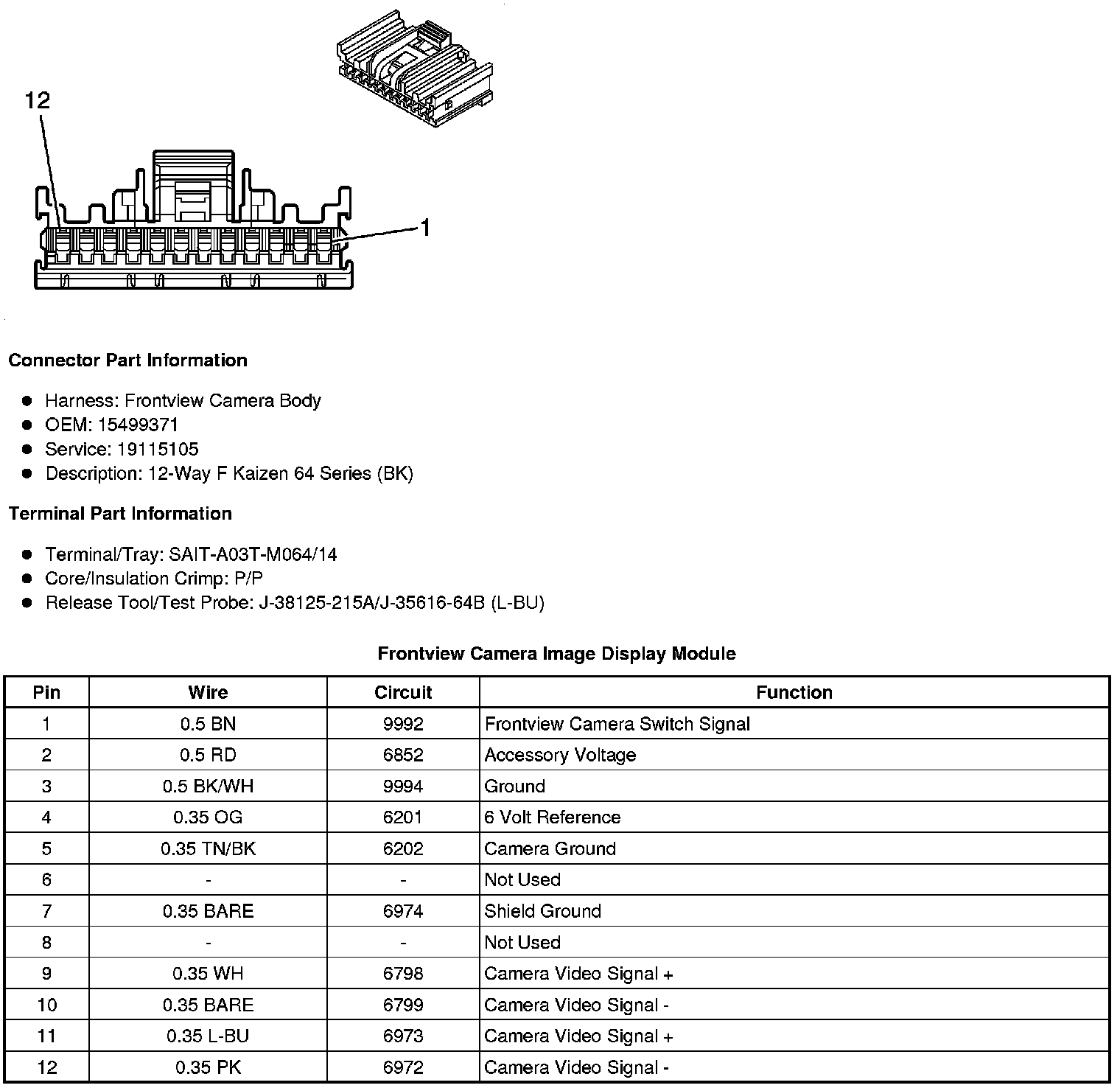

Frontview Camera Image Display Module
