System Diagram

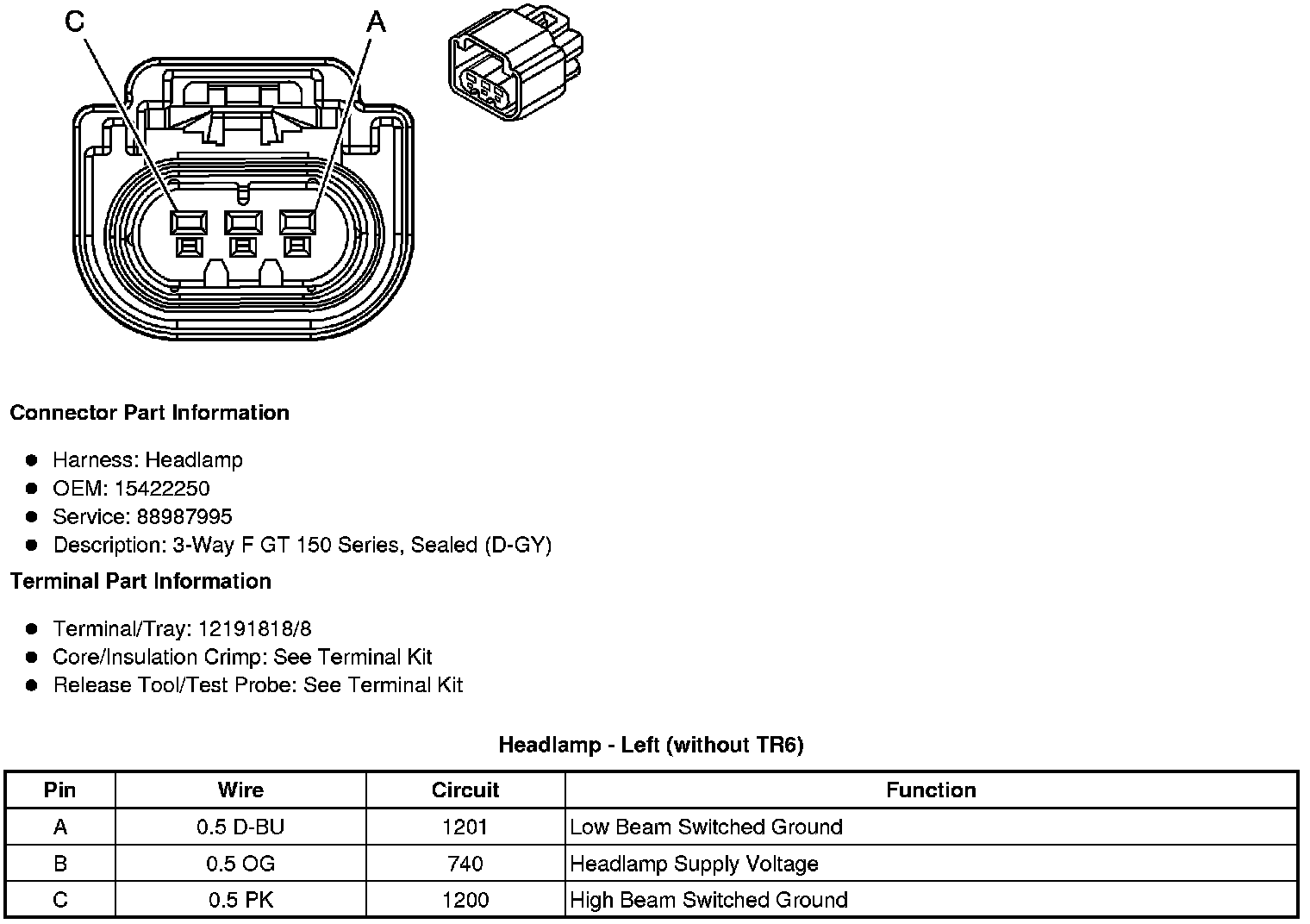

Headlamp - Left (without TR6)





Headlamp - Left (TR6)





Headlamp - Right (without TR6)





Headlamp - Right (TR6)
