Impact Sensor




Component Connector End Views

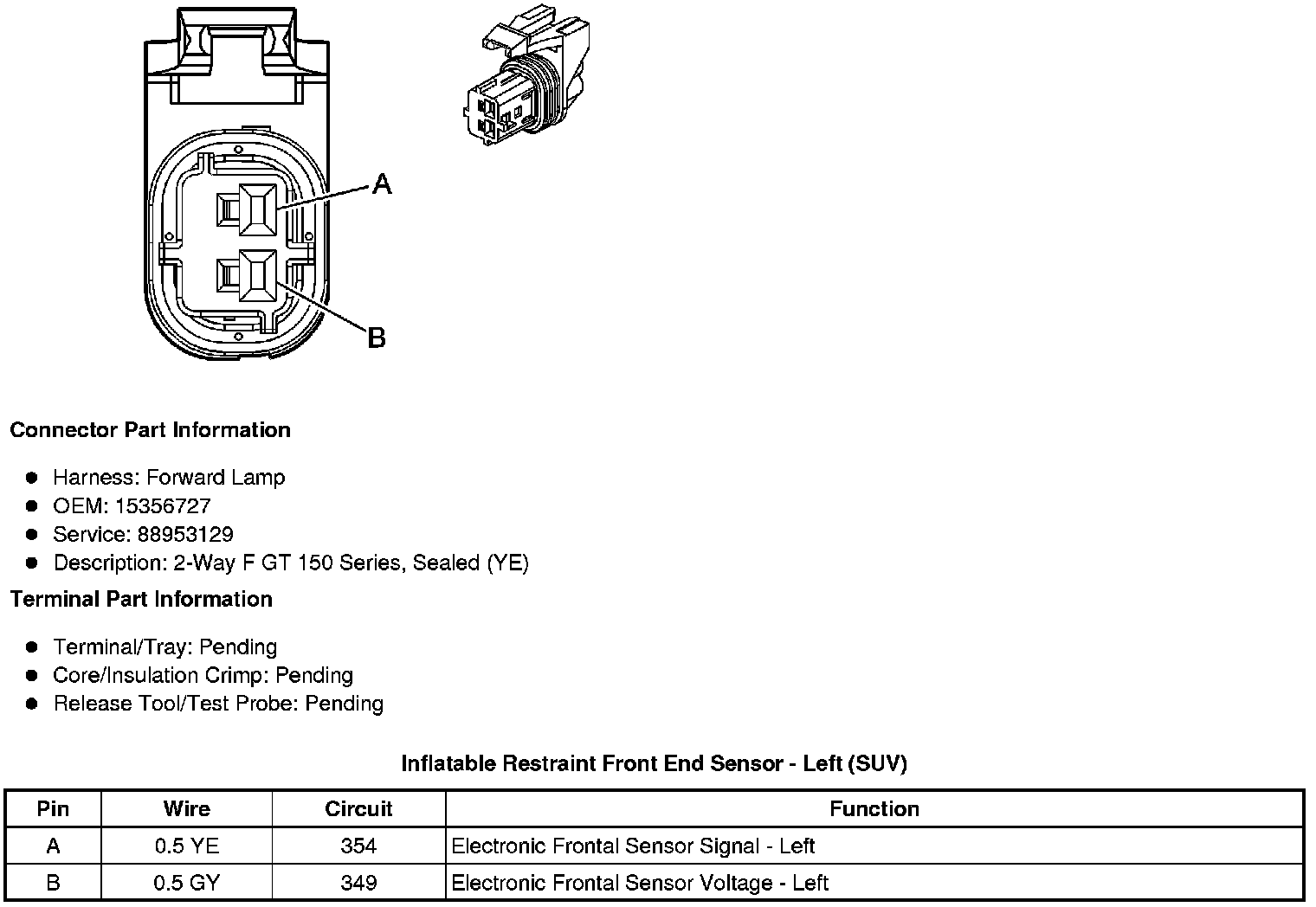

Inflatable Restraint Front End Sensor - Left (SUV)

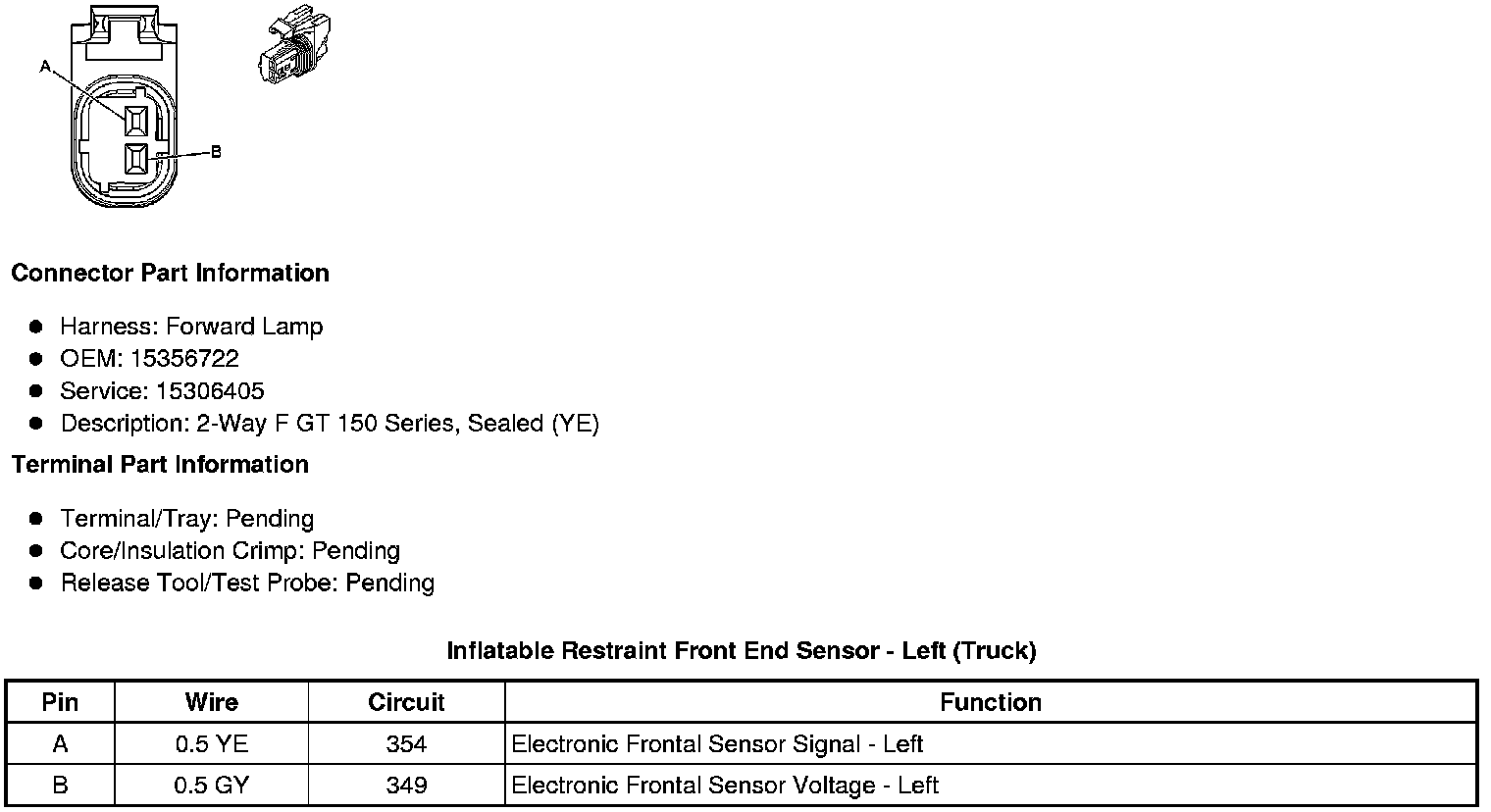

Inflatable Restraint Front End Sensor - Left (Truck)

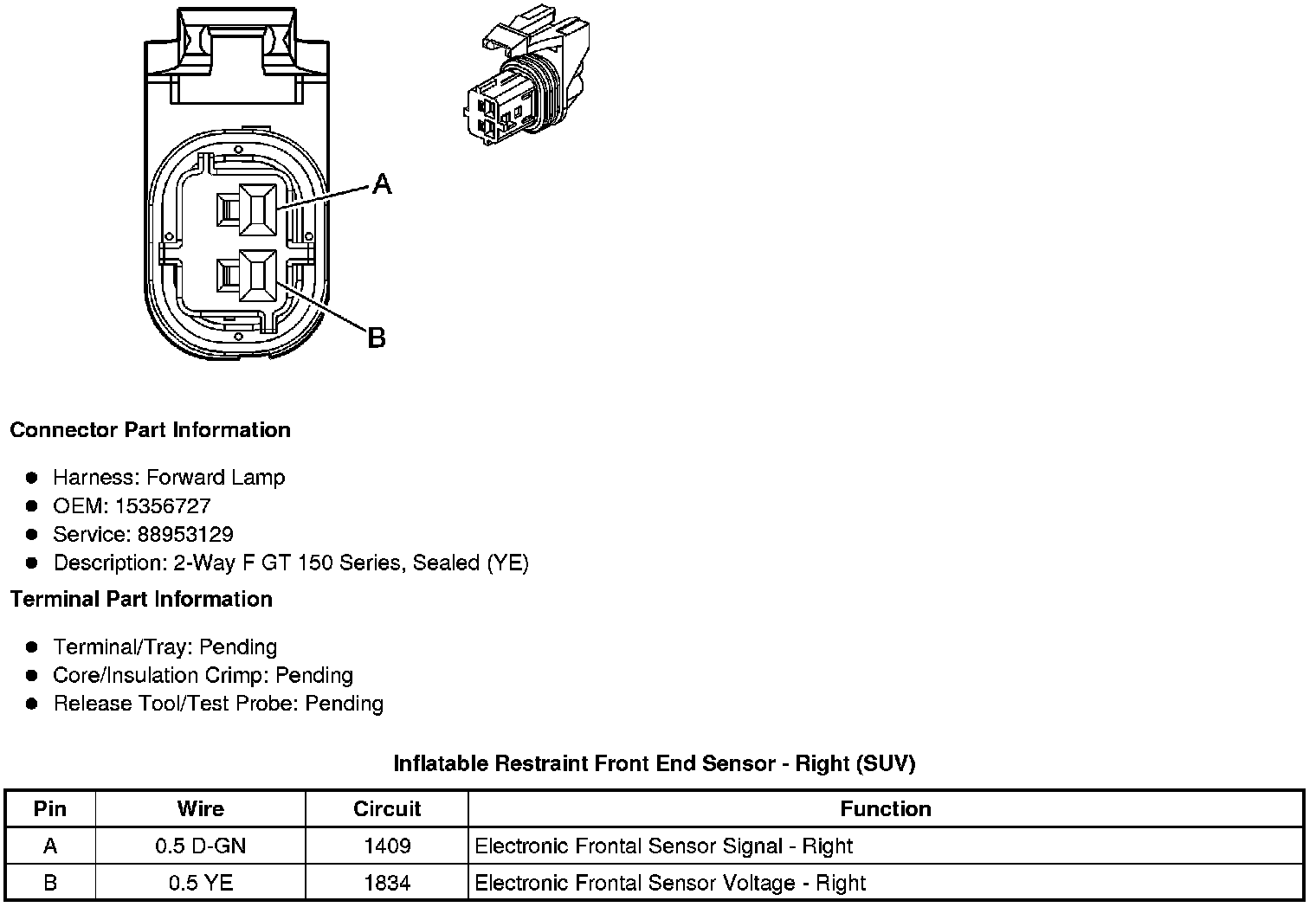

Inflatable Restraint Front End Sensor - Right (SUV)

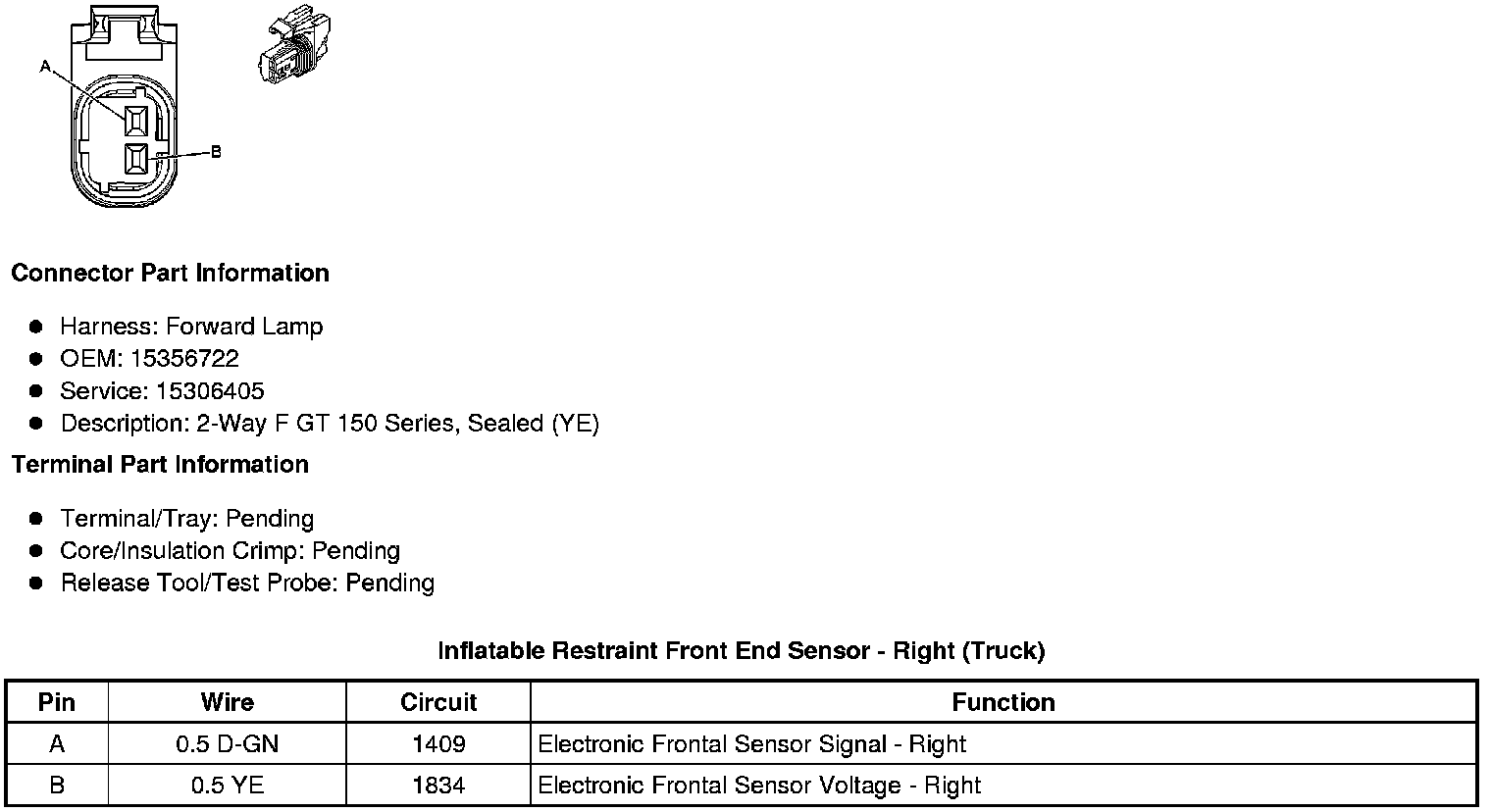

Inflatable Restraint Front End Sensor - Right (Truck)

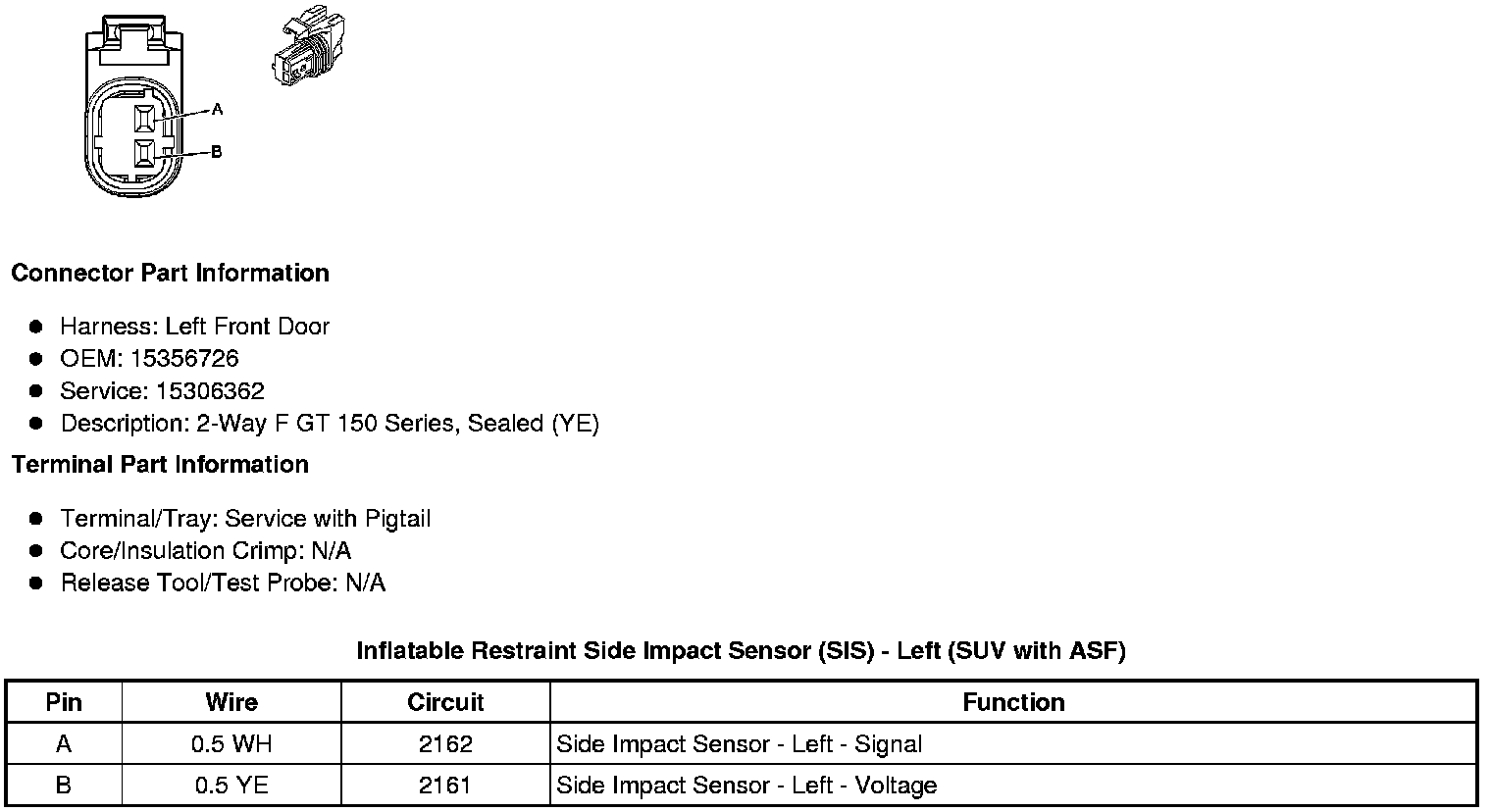

Inflatable Restraint Side Impact Sensor (SIS) - Left (SUV with ASF)

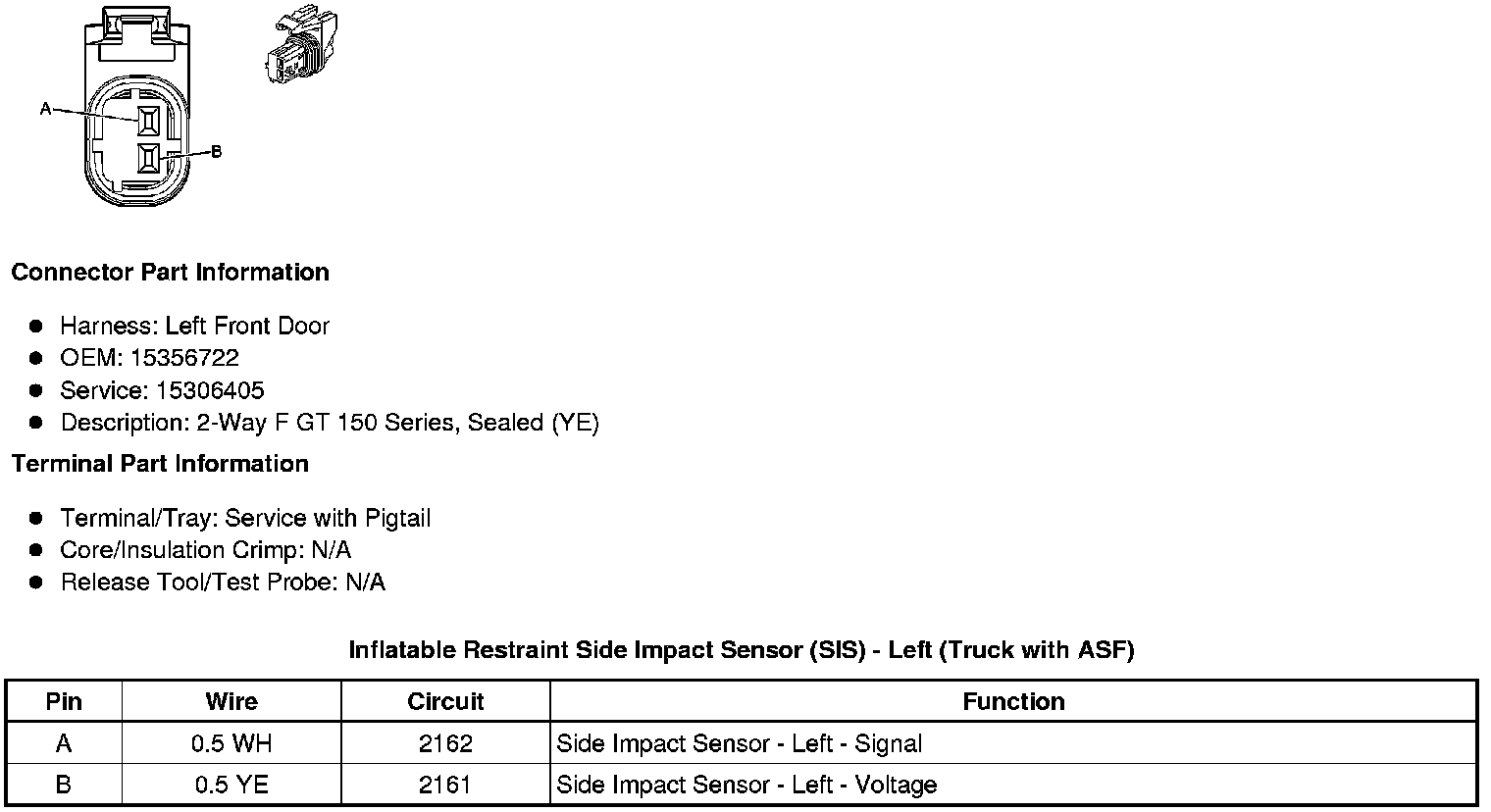

Inflatable Restraint Side Impact Sensor (SIS) - Left (Truck with ASF)

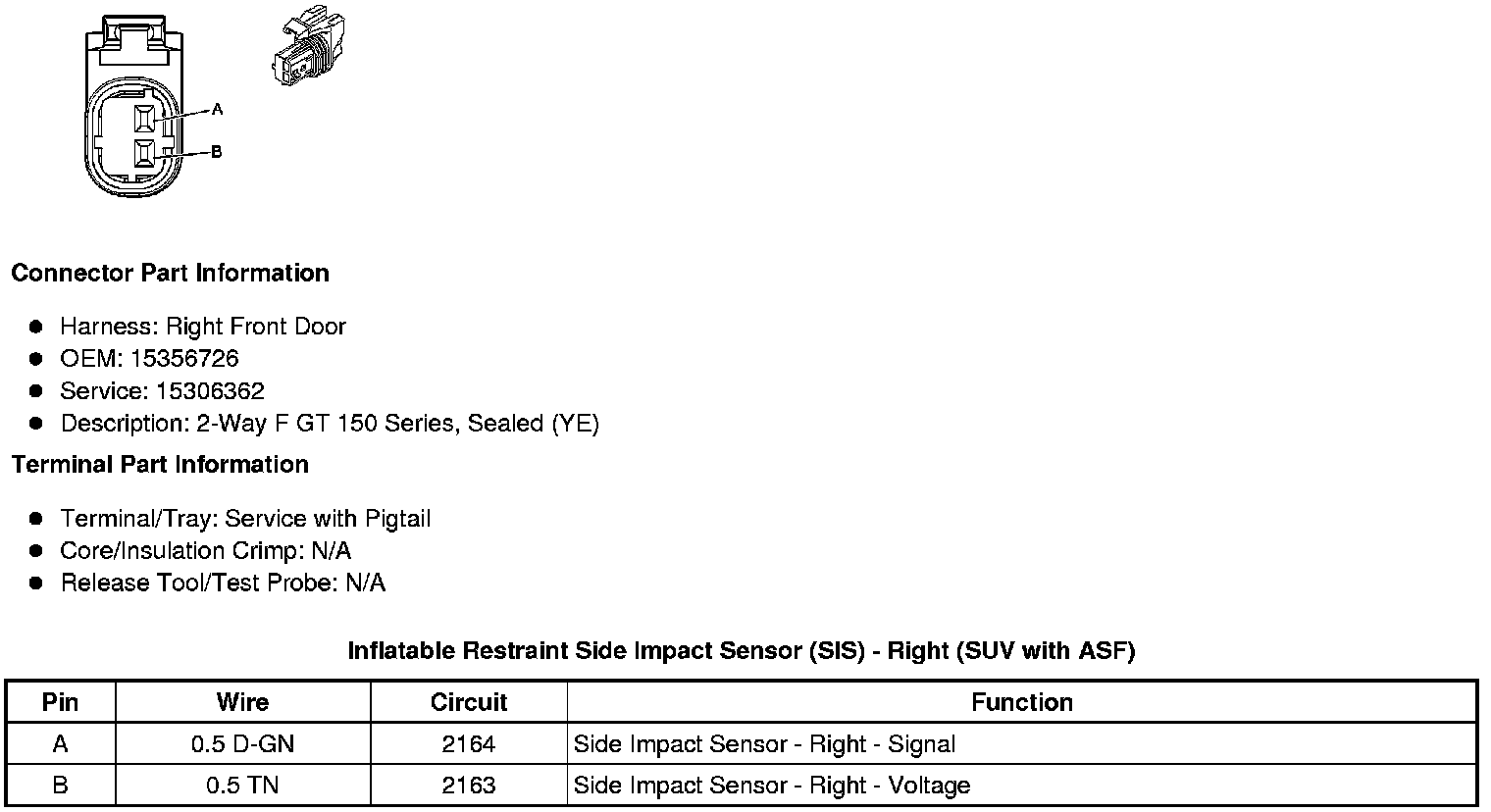

Inflatable Restraint Side Impact Sensor (SIS) - Right (SUV with ASF)

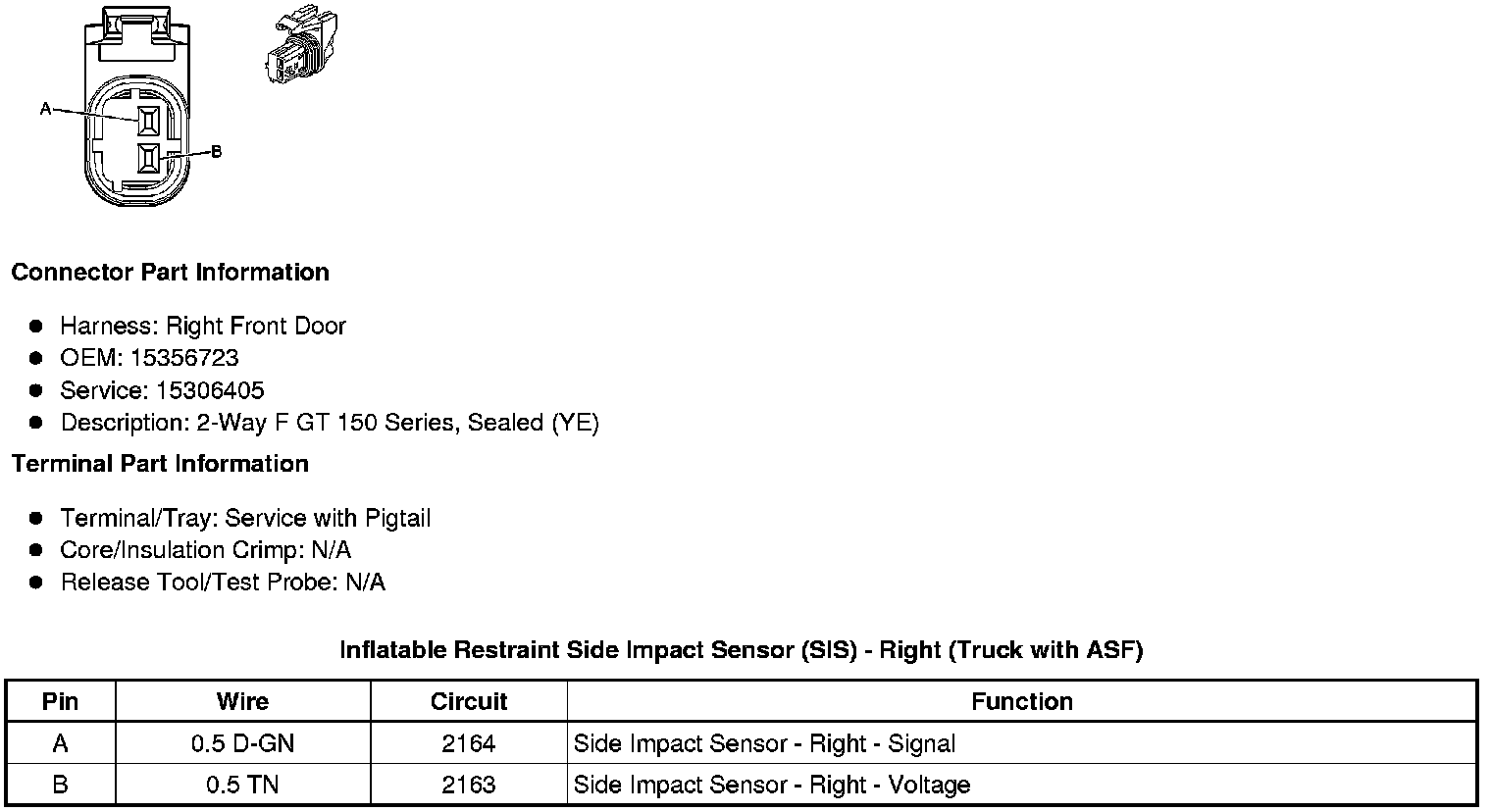

Inflatable Restraint Side Impact Sensor (SIS) - Right (Truck with ASF)
