Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure

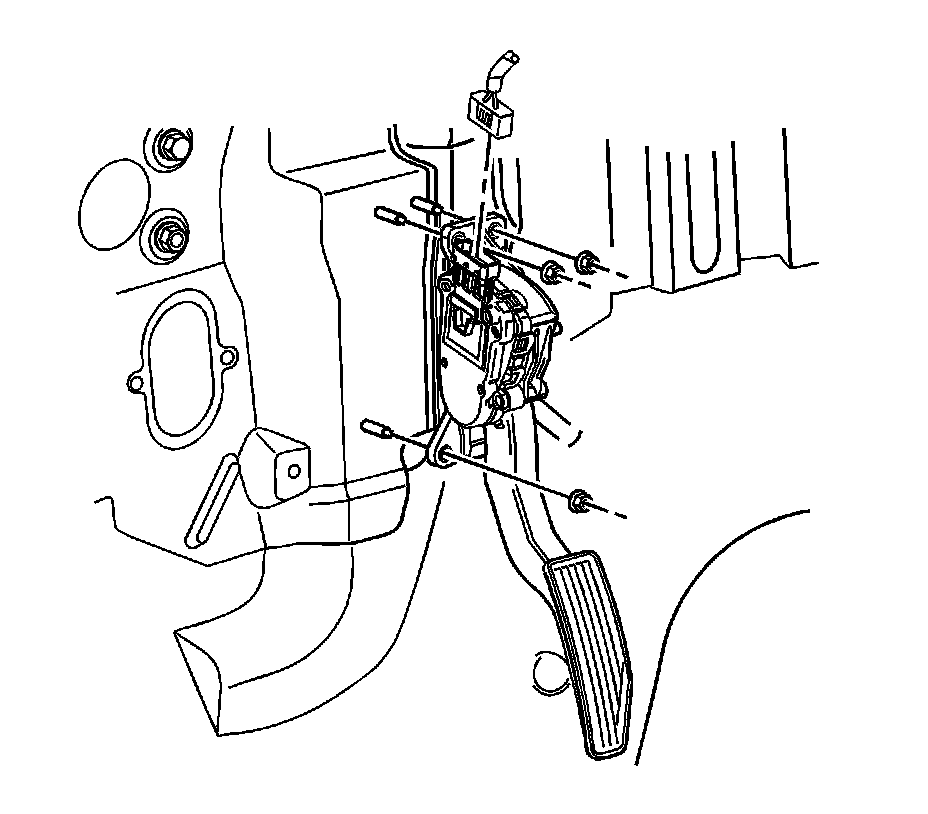

1. Disconnect the accelerator pedal position (APP) sensor electrical connector.




2. Remove the accelerator pedal/APP sensor nuts.
3. Remove the accelerator pedal/APP sensor from the vehicle.

Installation Procedure

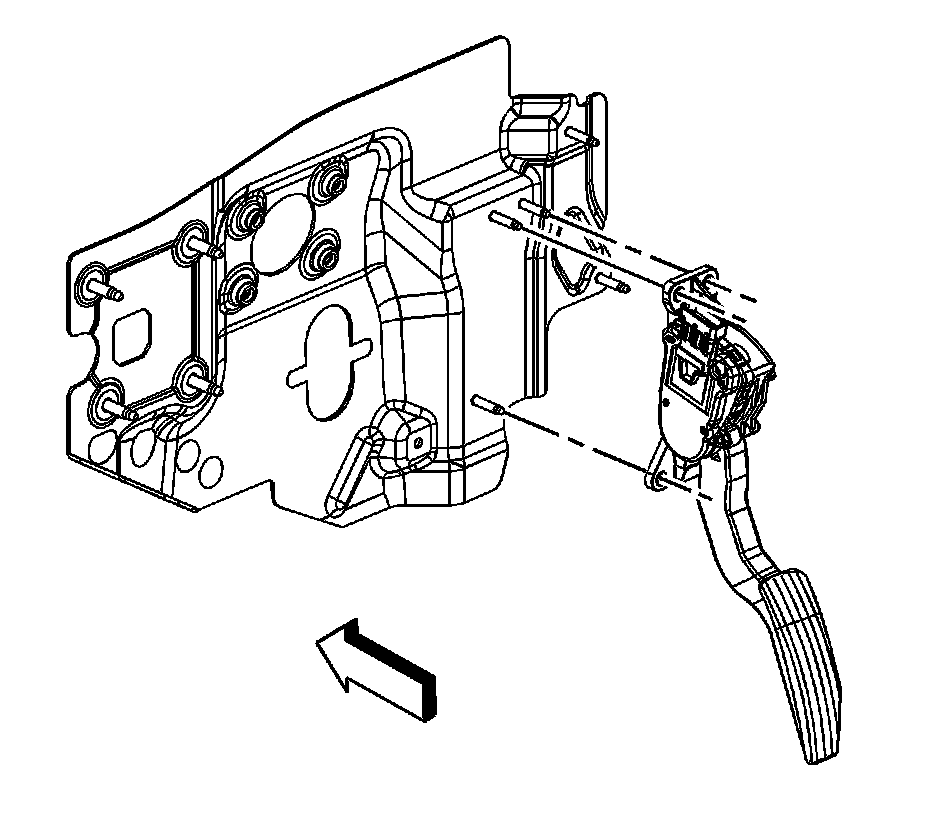

1. Install the accelerator pedal/APP sensor over the studs.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the accelerator pedal/APP sensor nuts and tighten to 9 Nm (80 lb in).




3. Connect the APP sensor electrical connector.

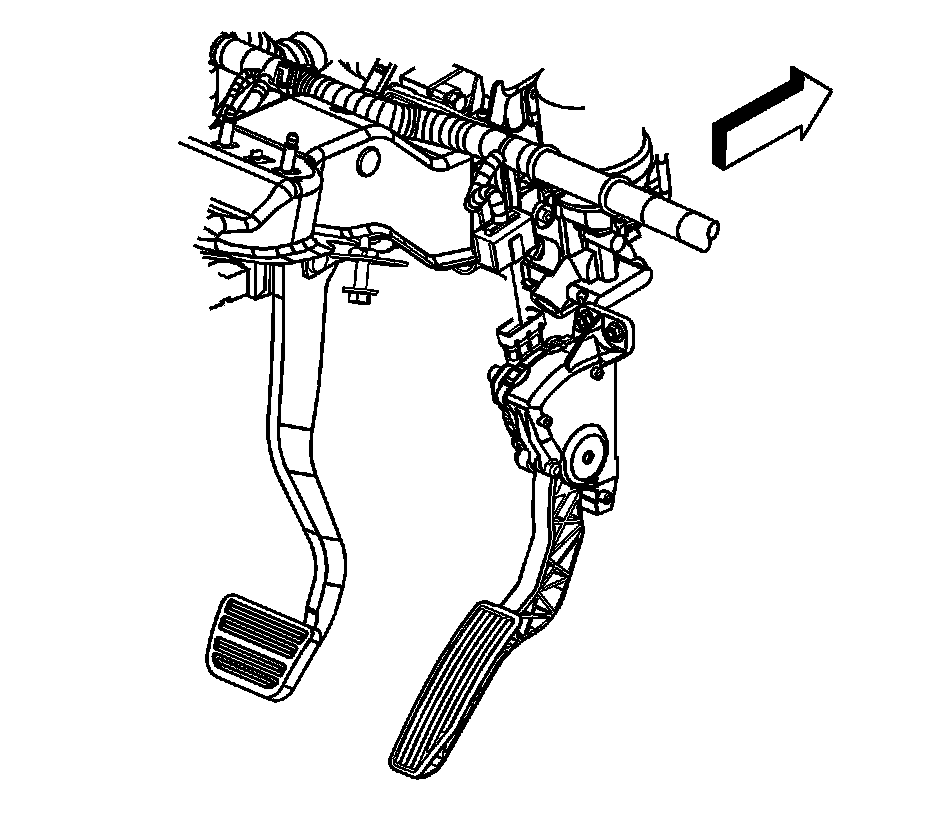

4. Inspect below the pedal for binding, to ensure full range of motion.
