Knock Sensor: Diagrams




Component Connector End Views

Knock Sensor (KS) (LLR)

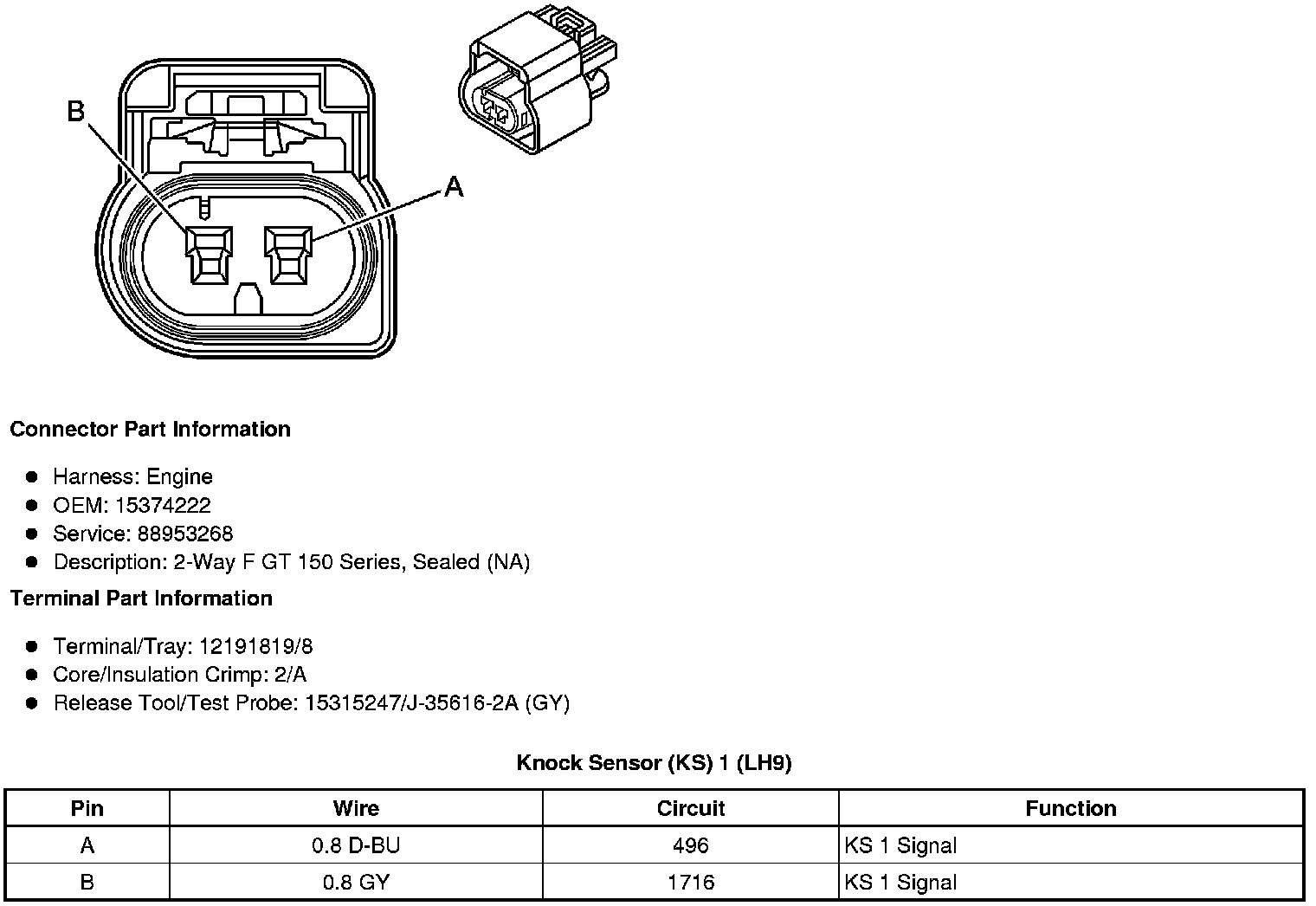

Knock Sensor (KS) 1 (LH9)

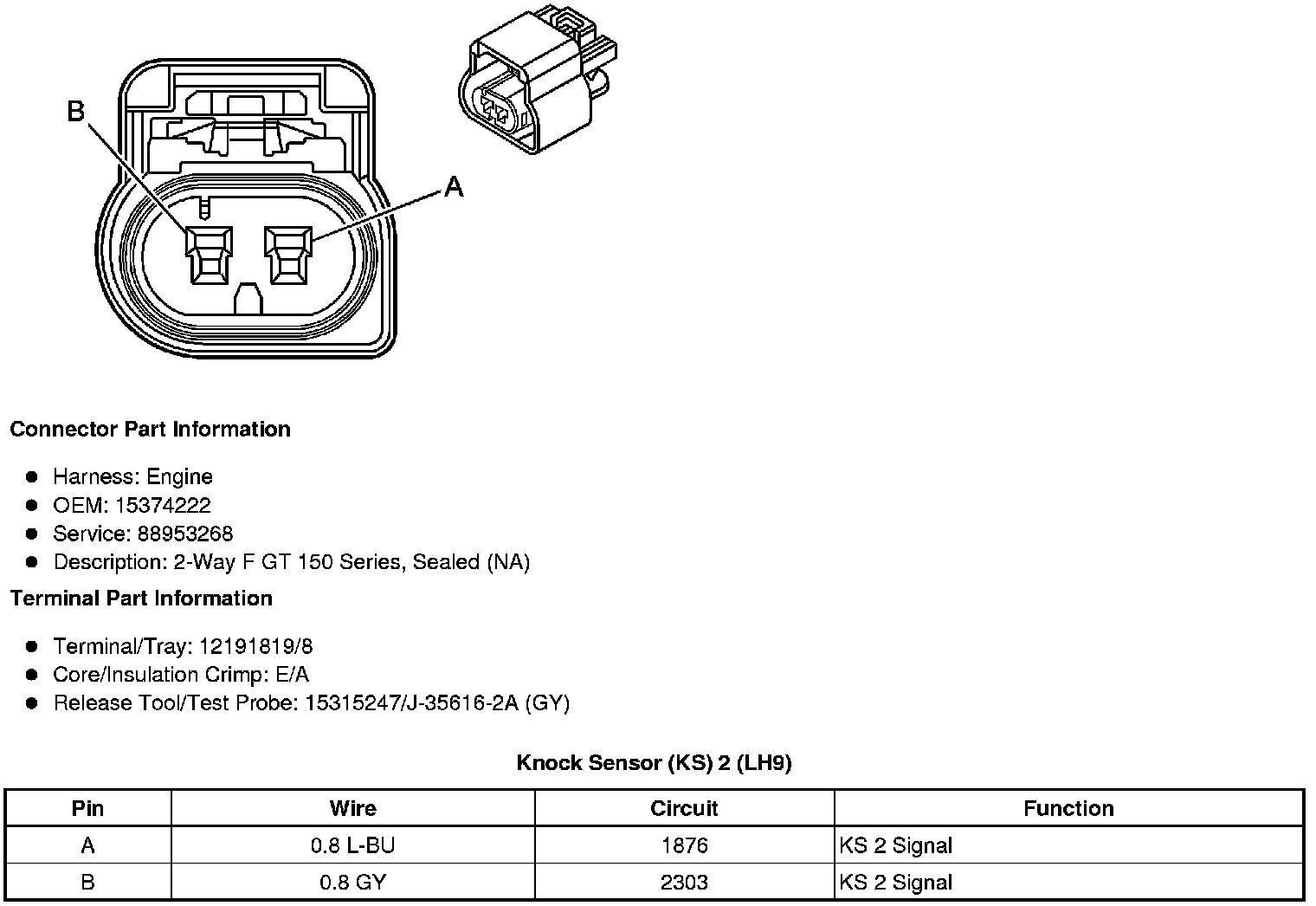

Knock Sensor (KS) 2 (LH9)
