Main Relay (Computer/Fuel System): Locations

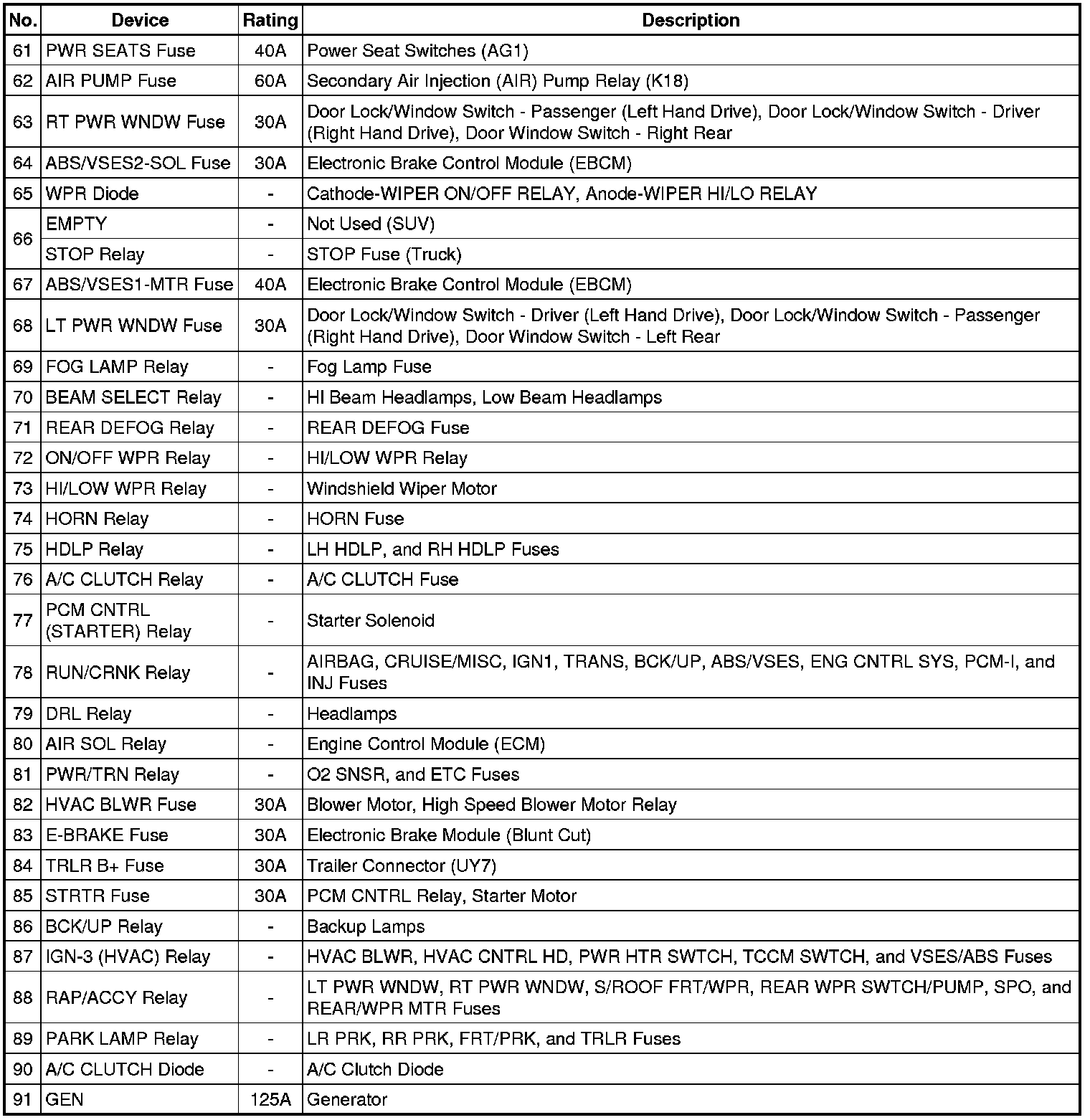

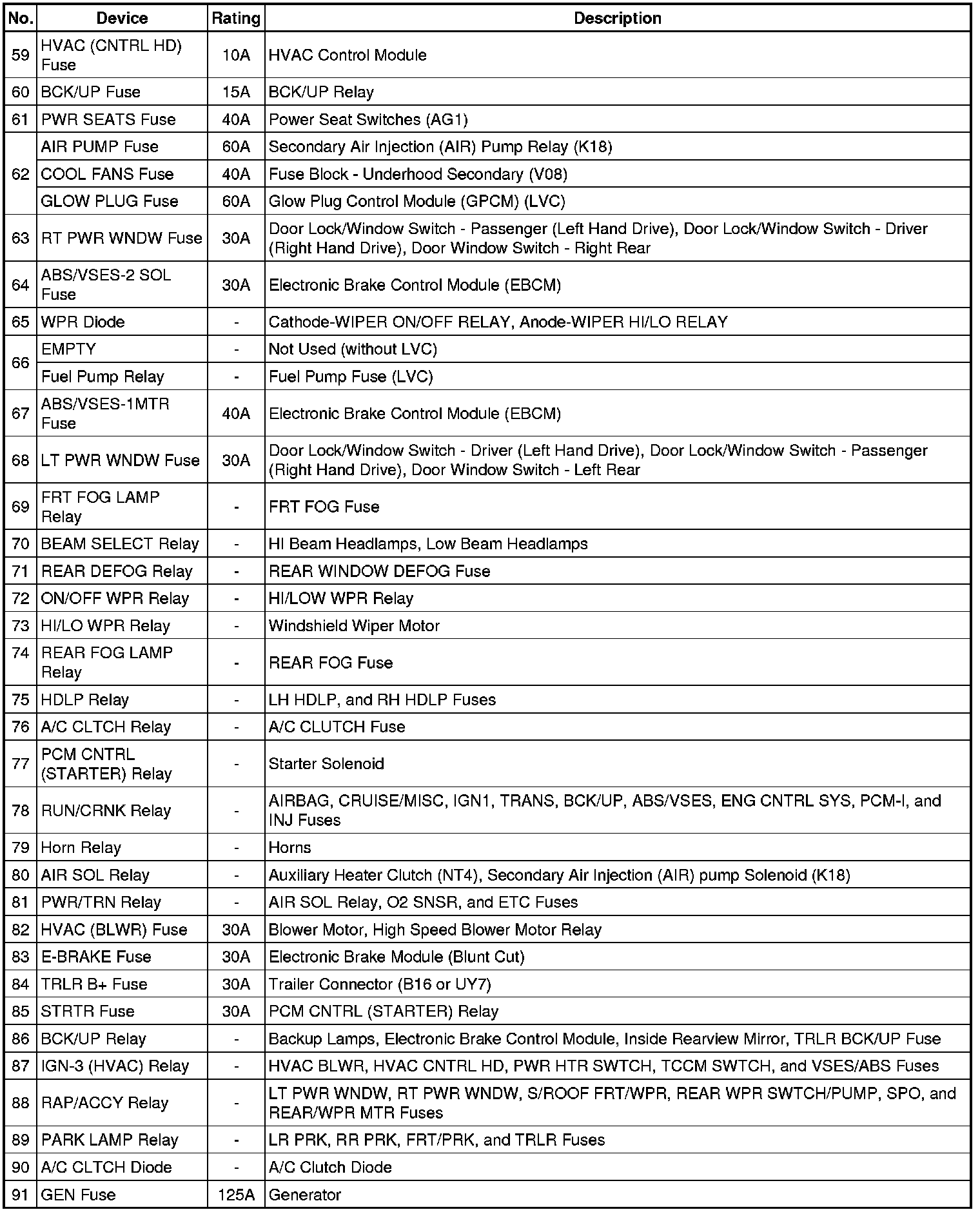

Electrical Center Identification Views

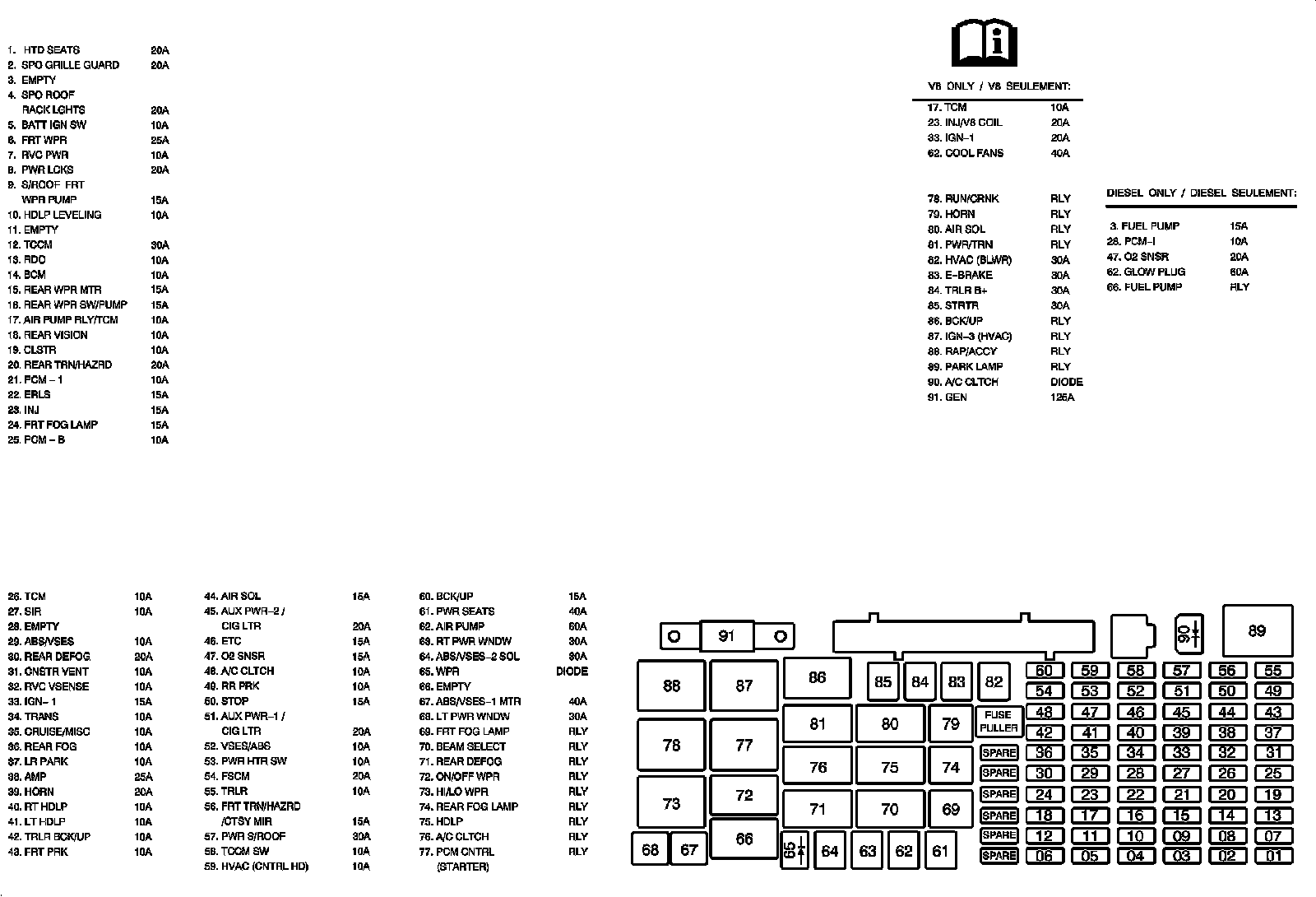

Fuse Block - Underhood, Label (without BRM)

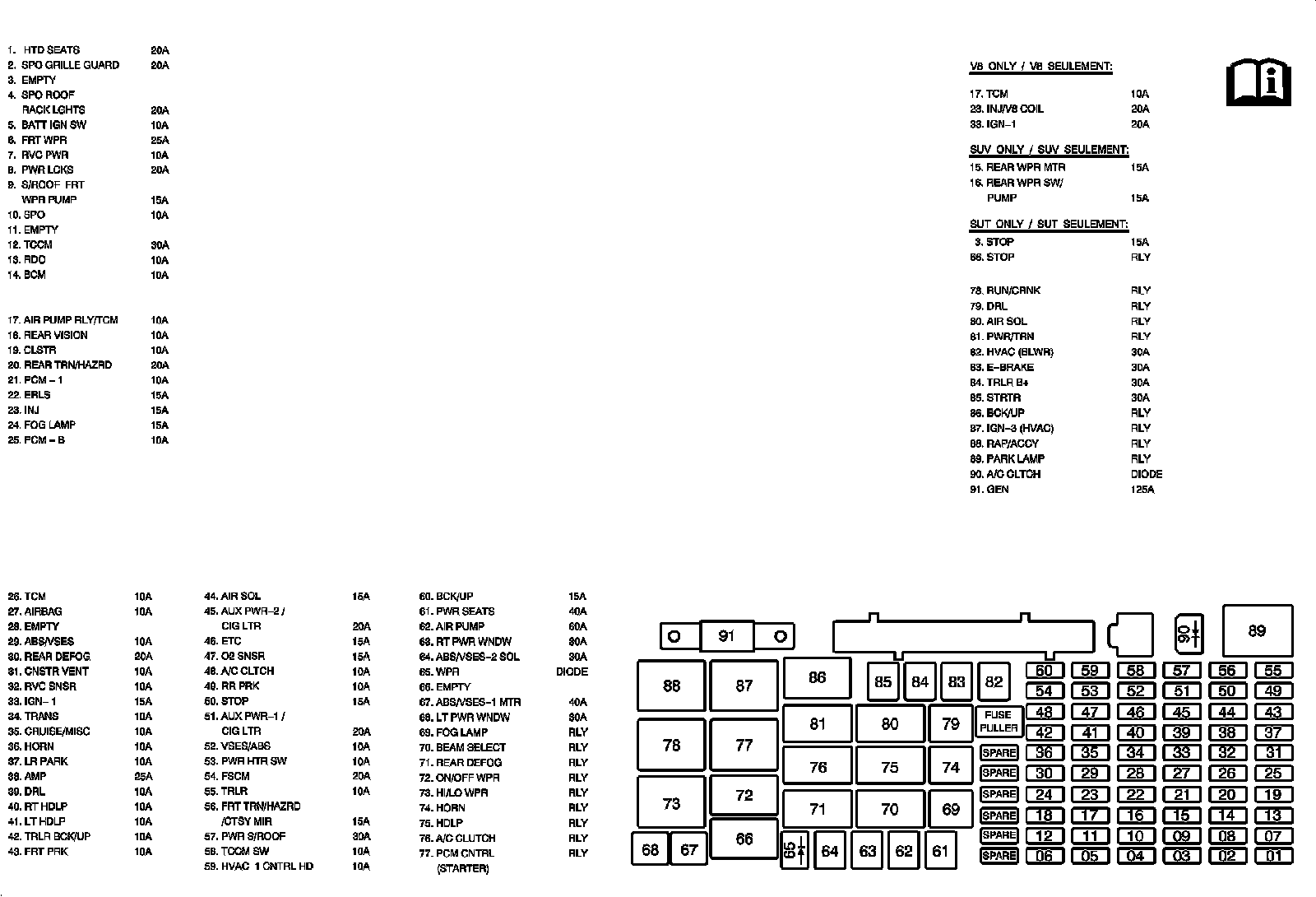

Fuse Block - Underhood, Label (BRM)
