Body Control Module
Component Connector End Views

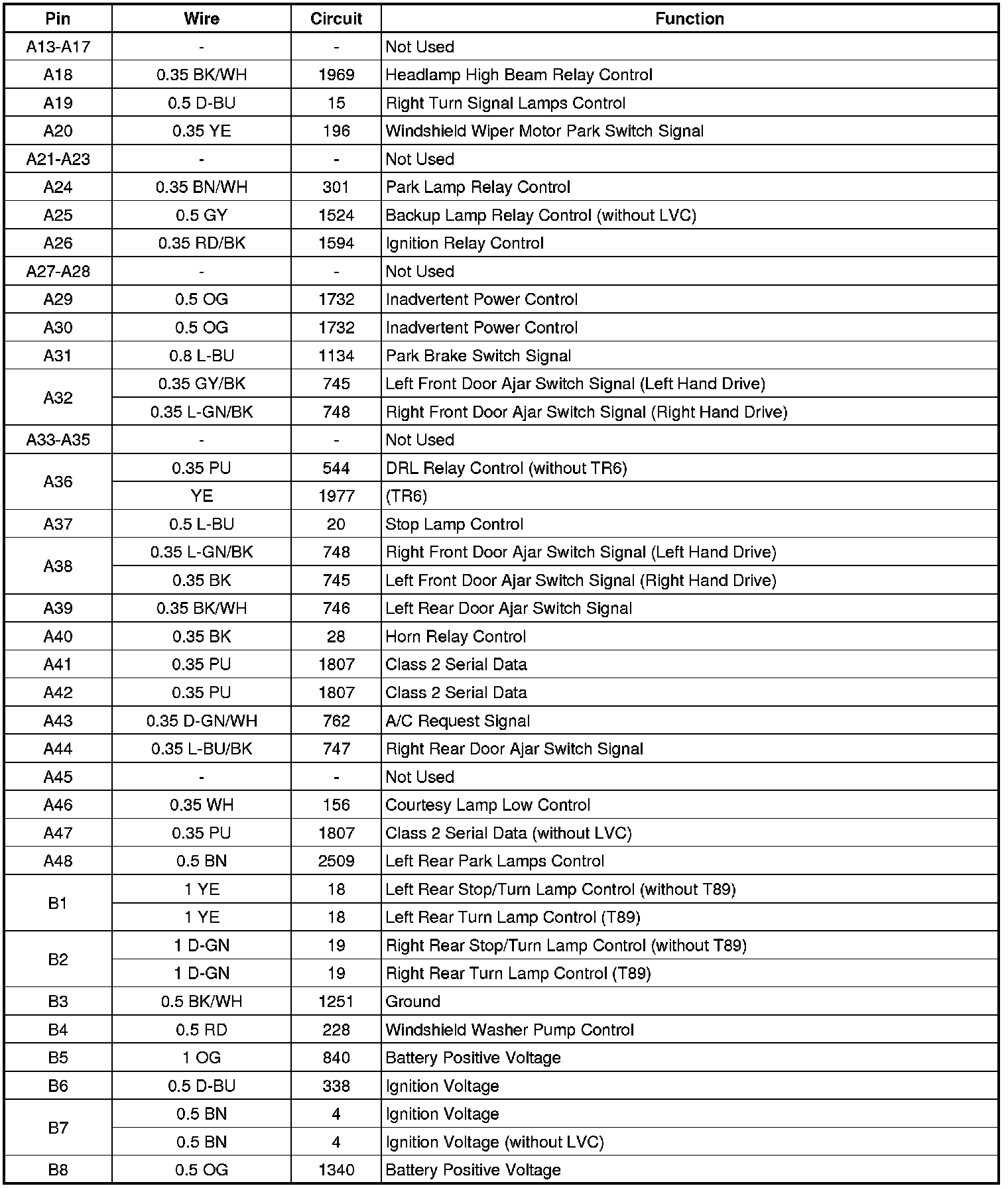

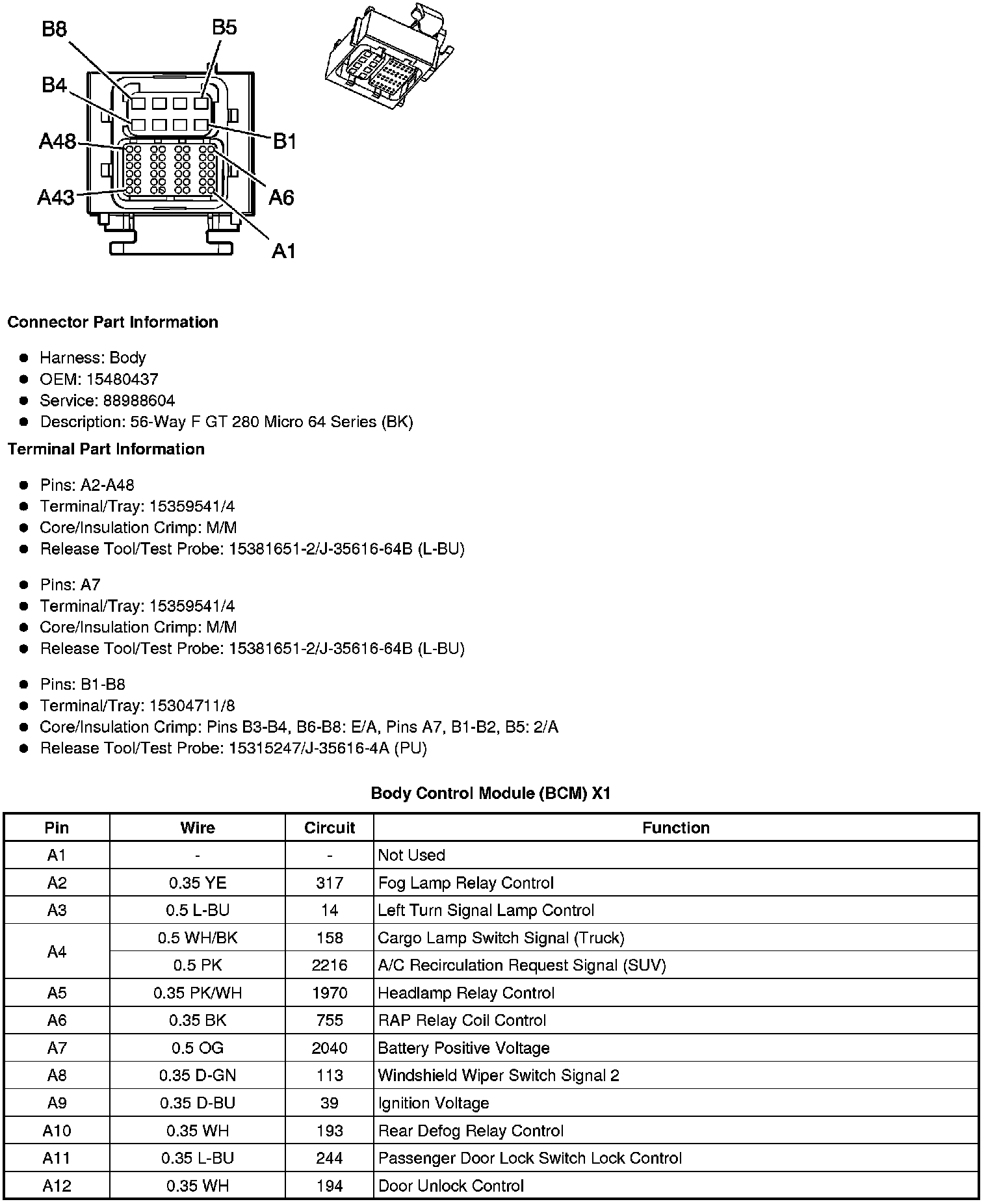

Body Control Module (BCM) X1

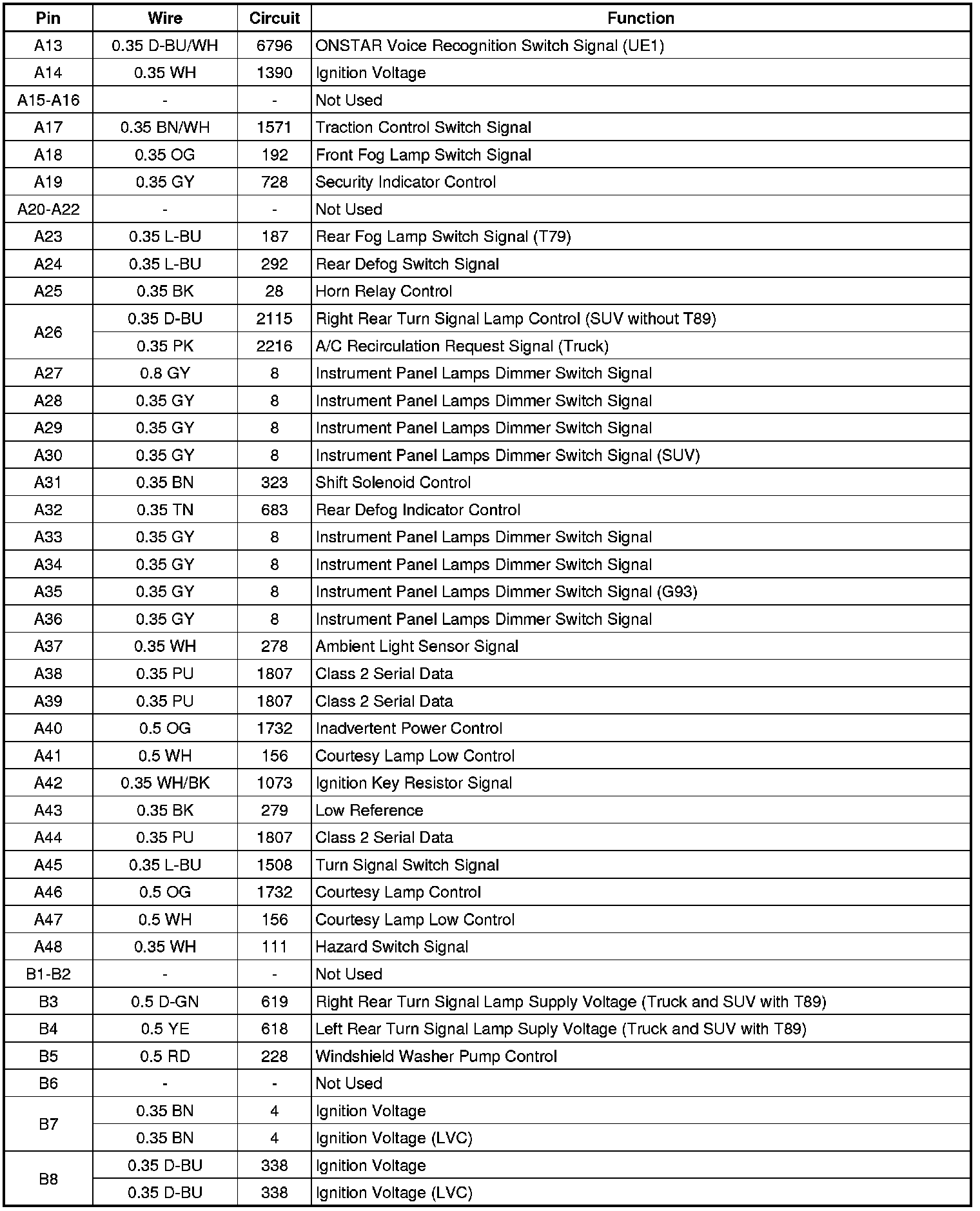

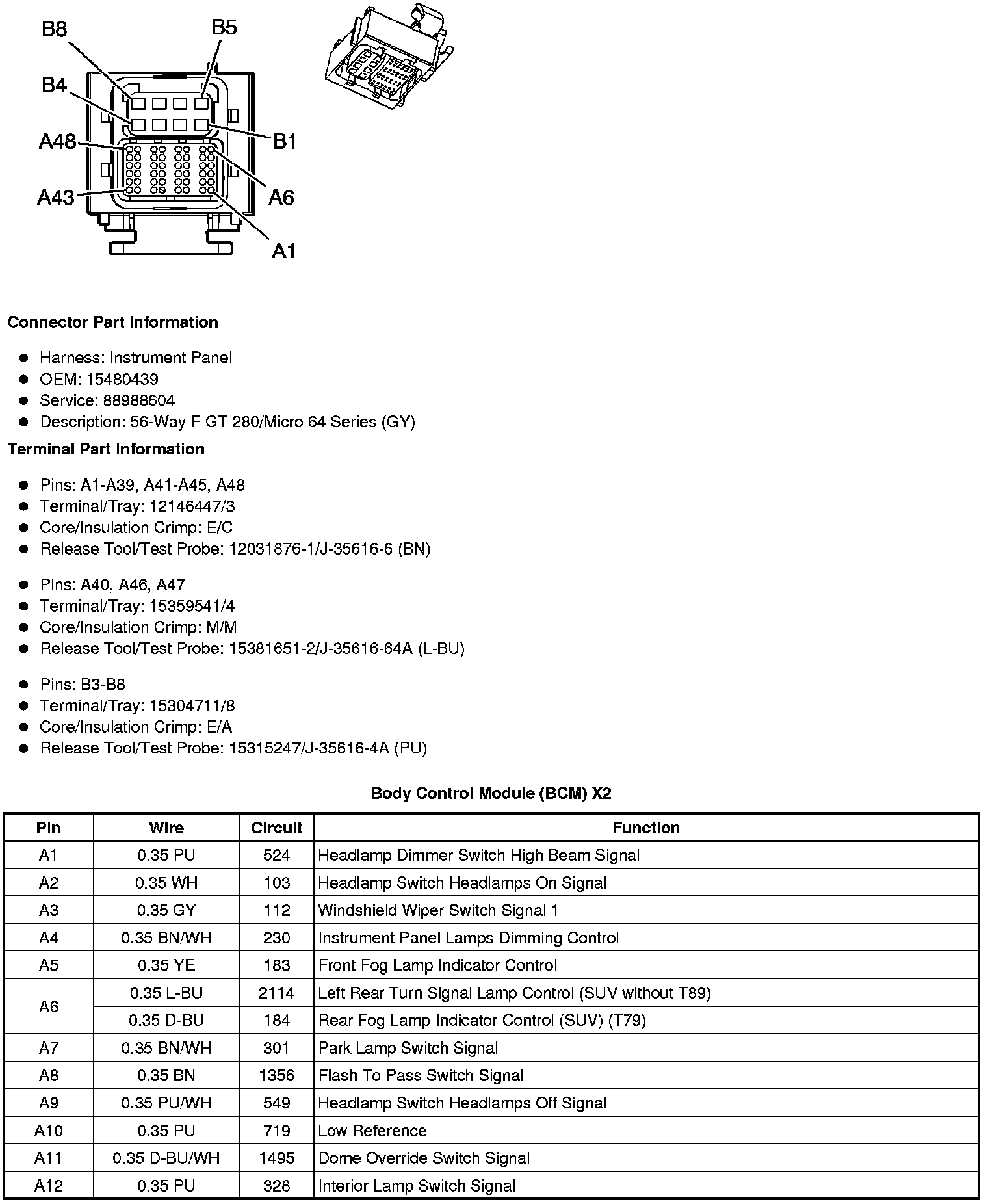

Body Control Module (BCM) X2
