Control Module, Transfer Case
Component Connector End Views

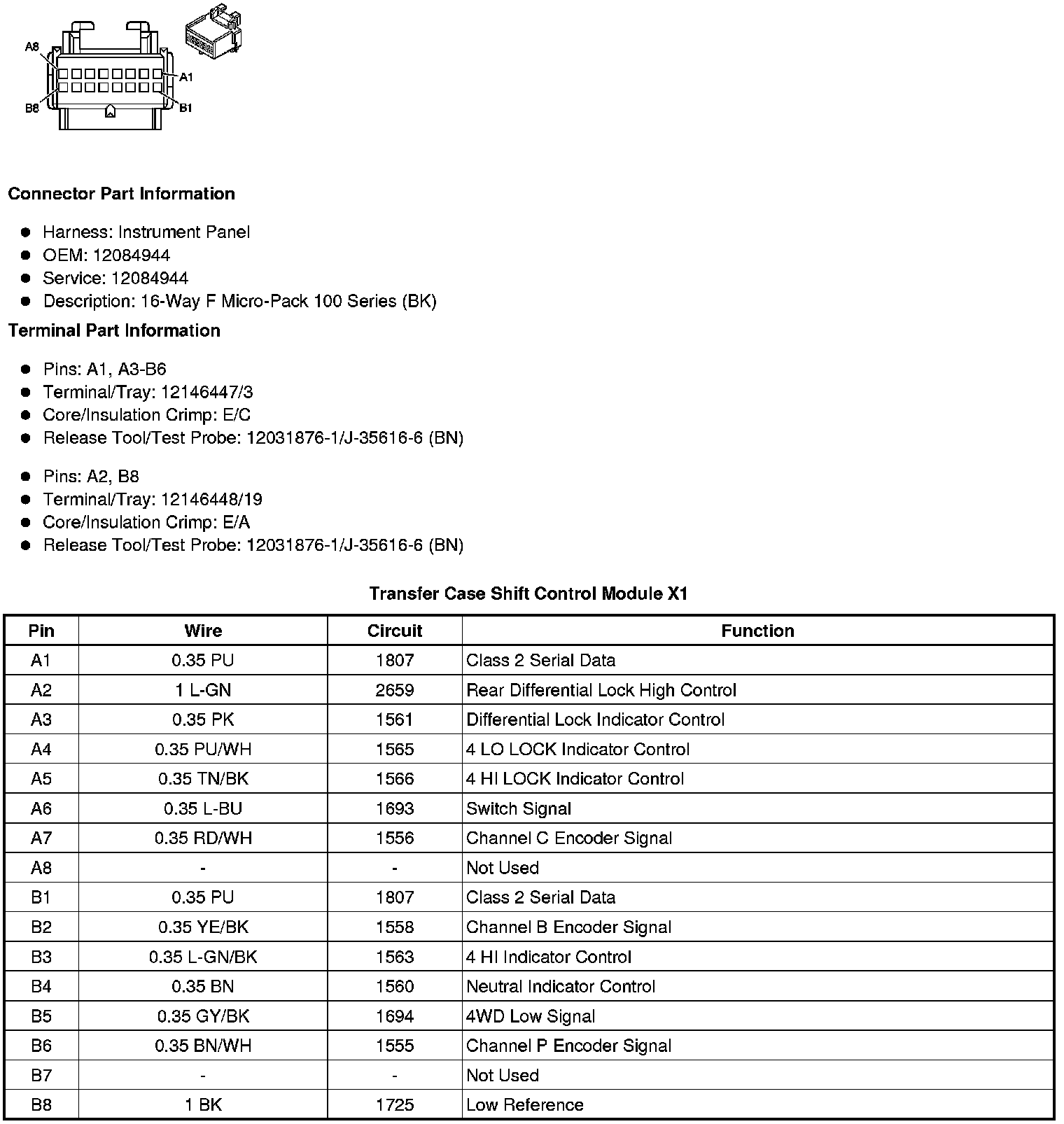

Transfer Case Shift Control Module X1

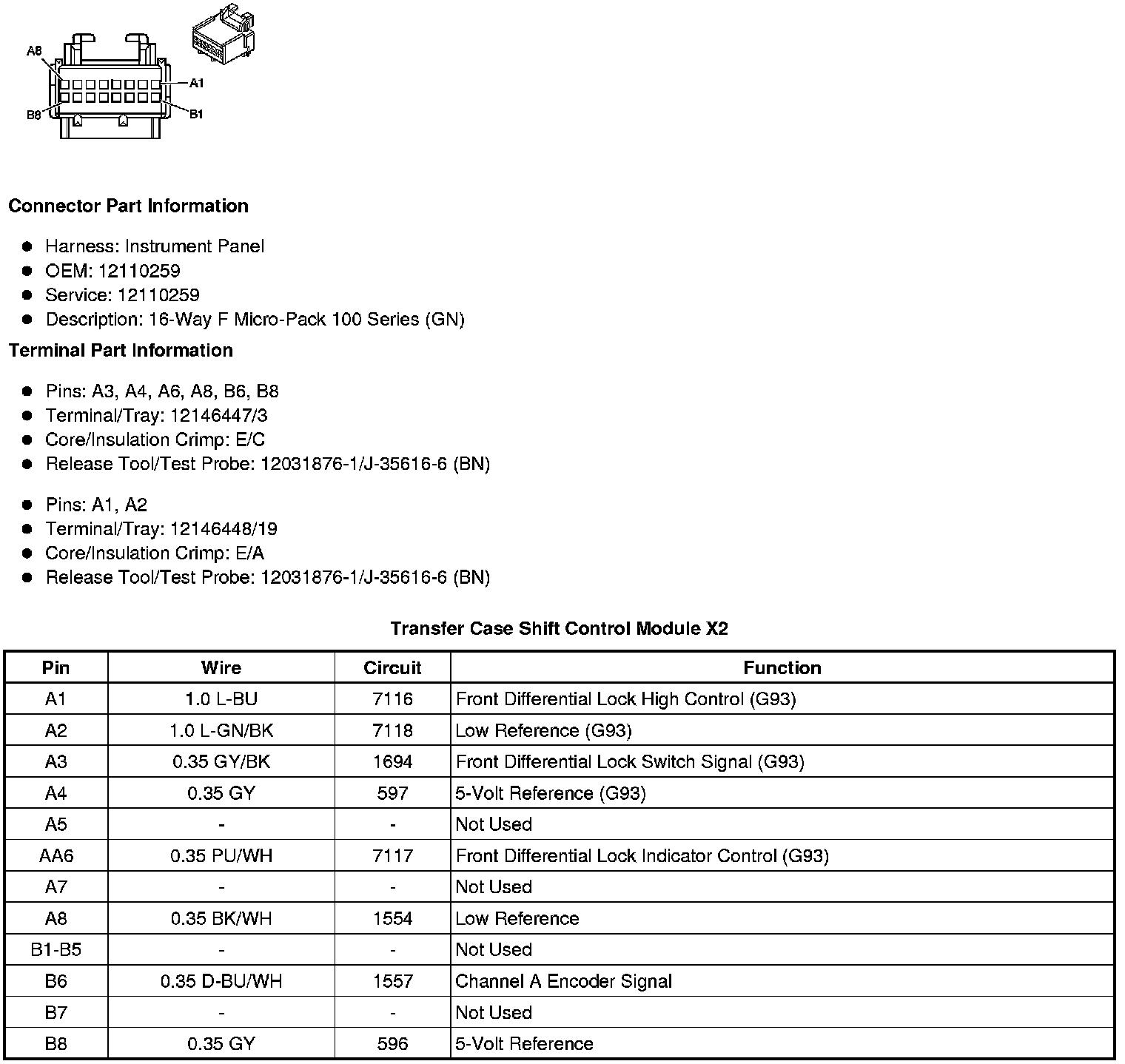

Transfer Case Shift Control Module X2

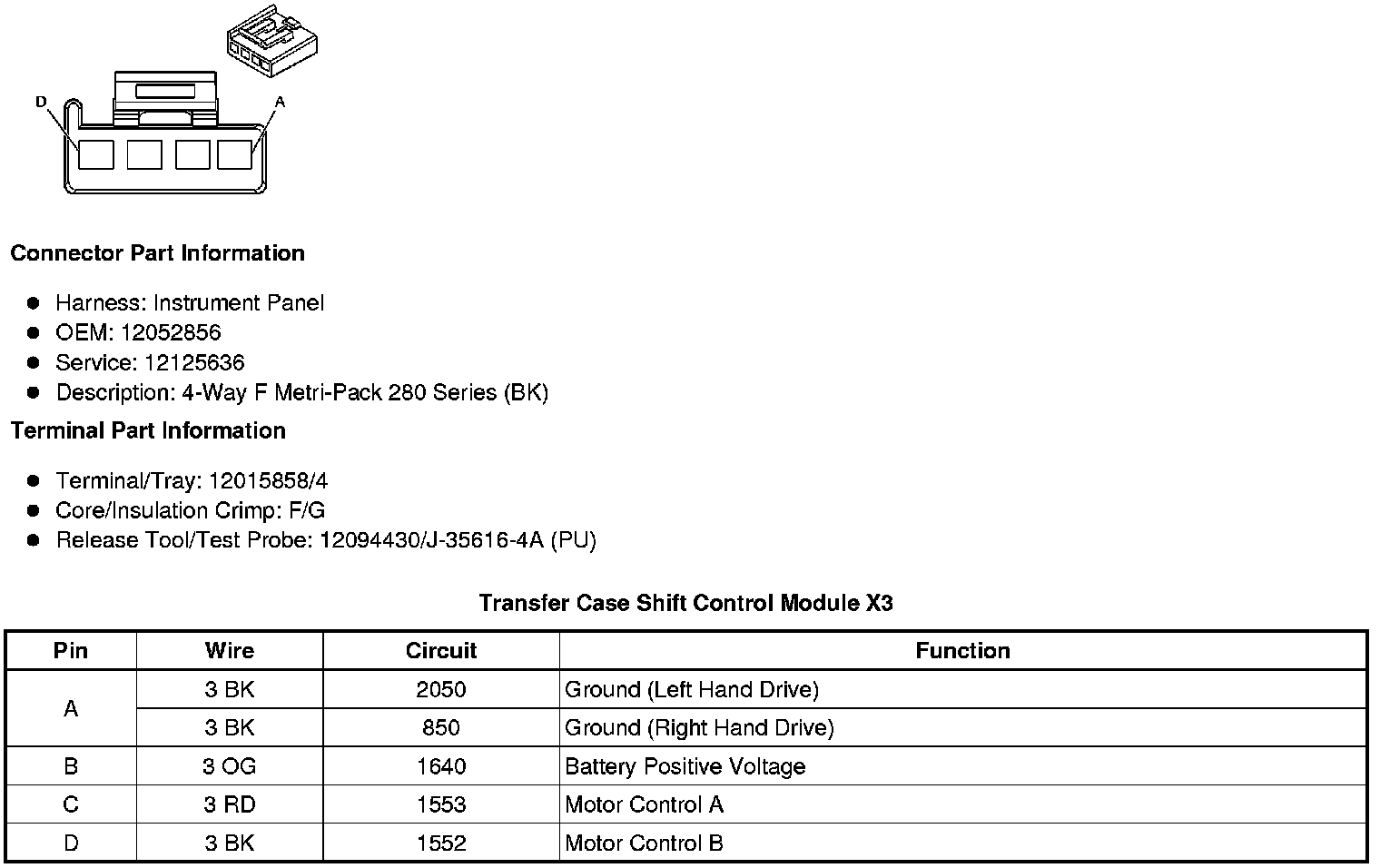

Transfer Case Shift Control Module X3

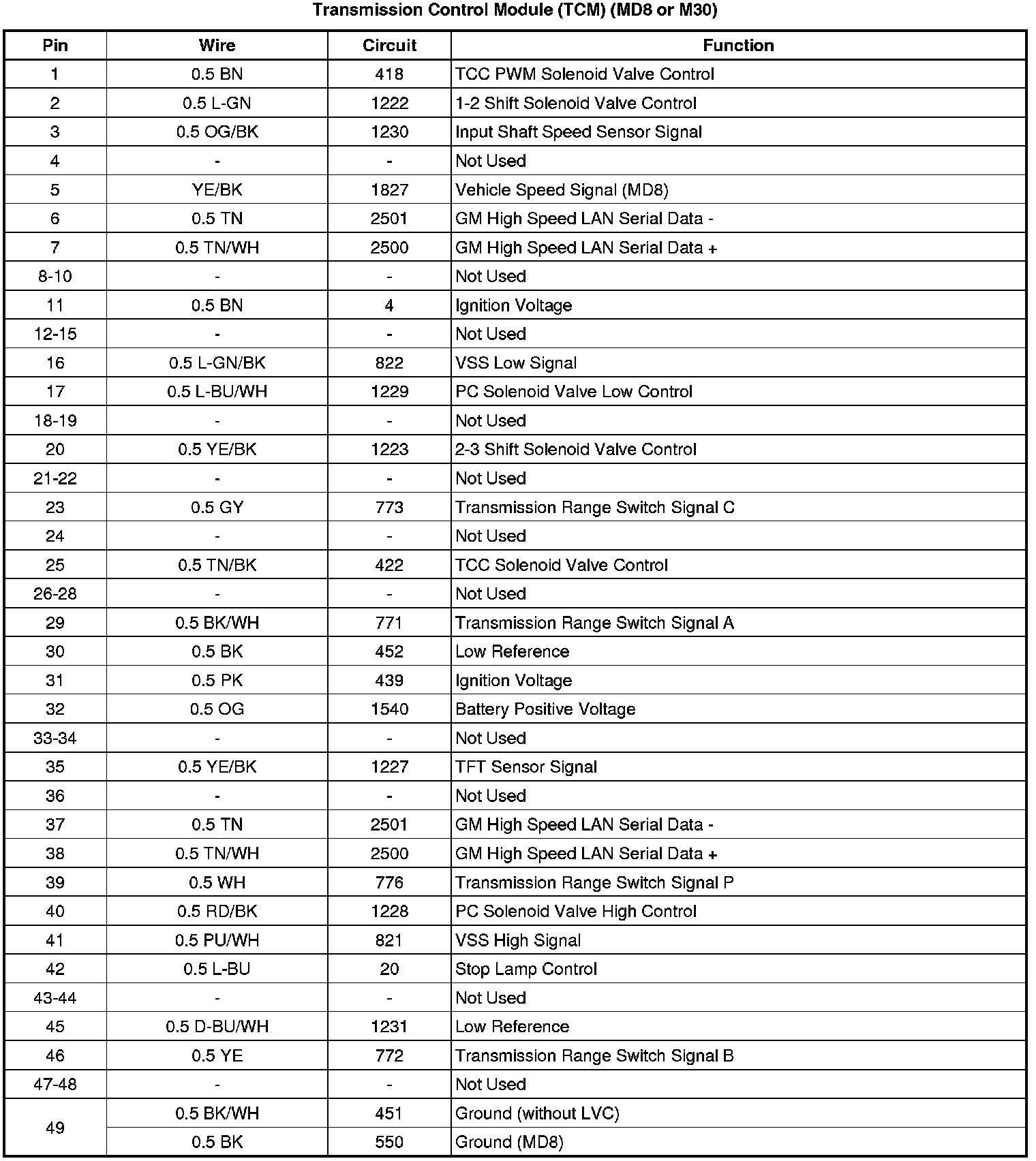

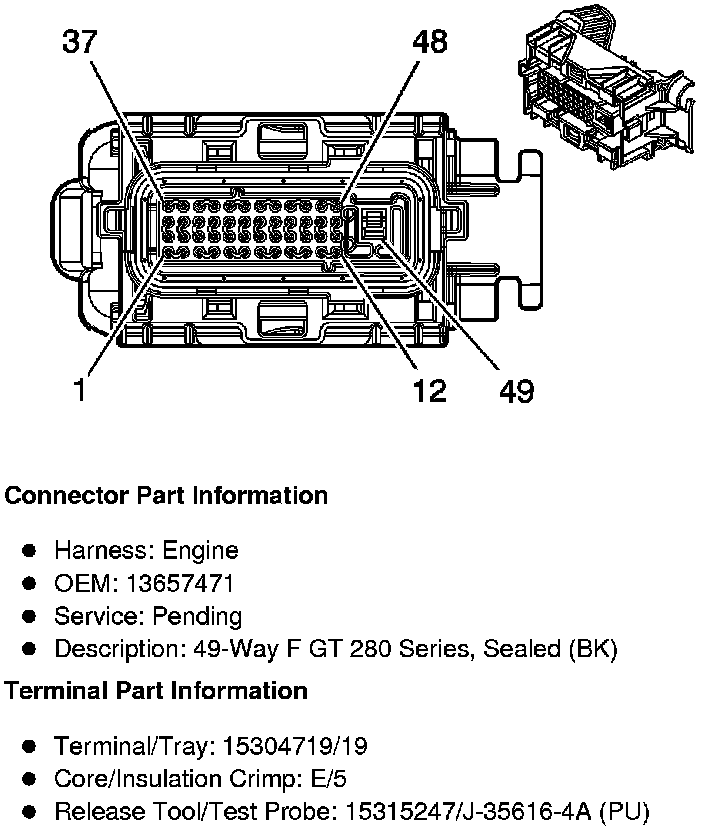

Transmission Control Module (TCM) (MD8 or M30)
Component Connector End Views
Transfer Case Shift Control Module X1
Transfer Case Shift Control Module X2
Transfer Case Shift Control Module X3
Transmission Control Module (TCM) (MD8 or M30)
