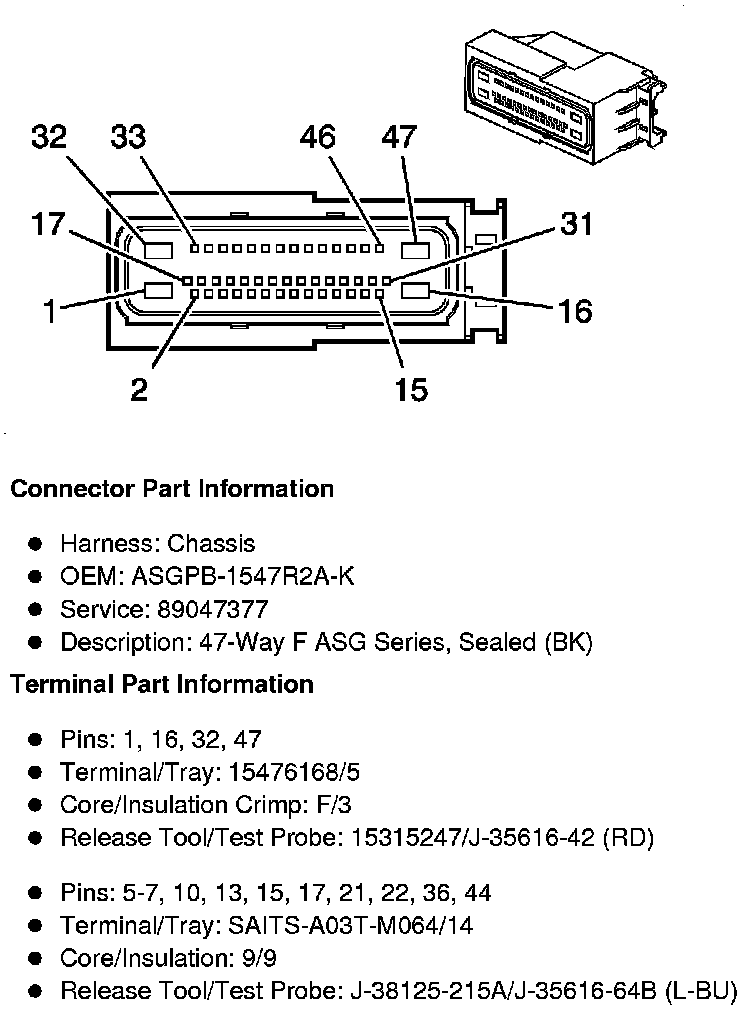

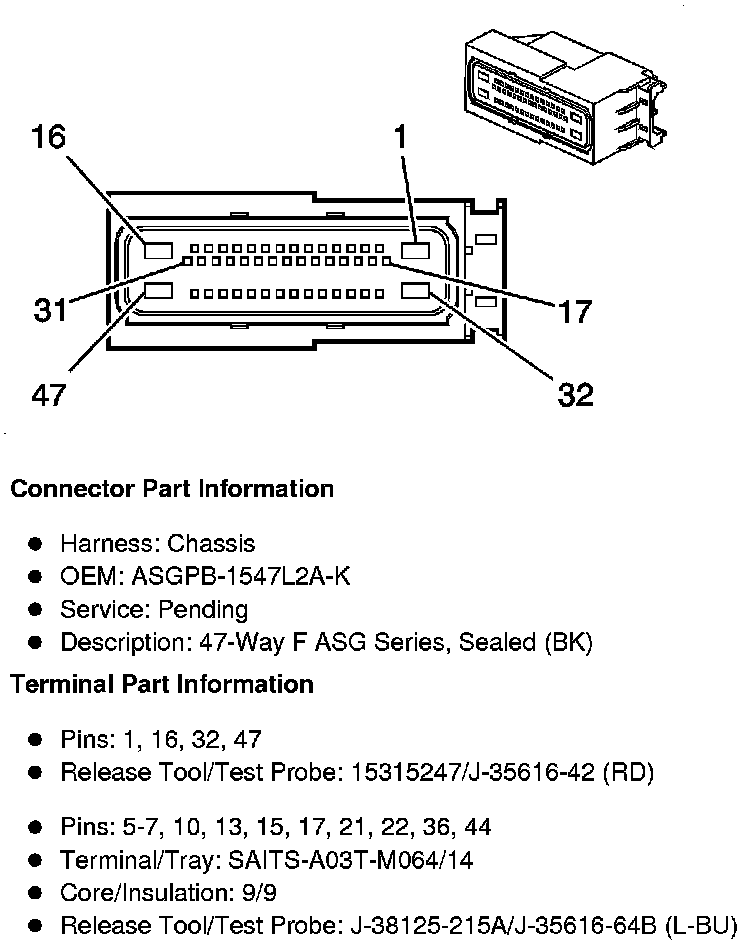

Fuel Pressure Control Module

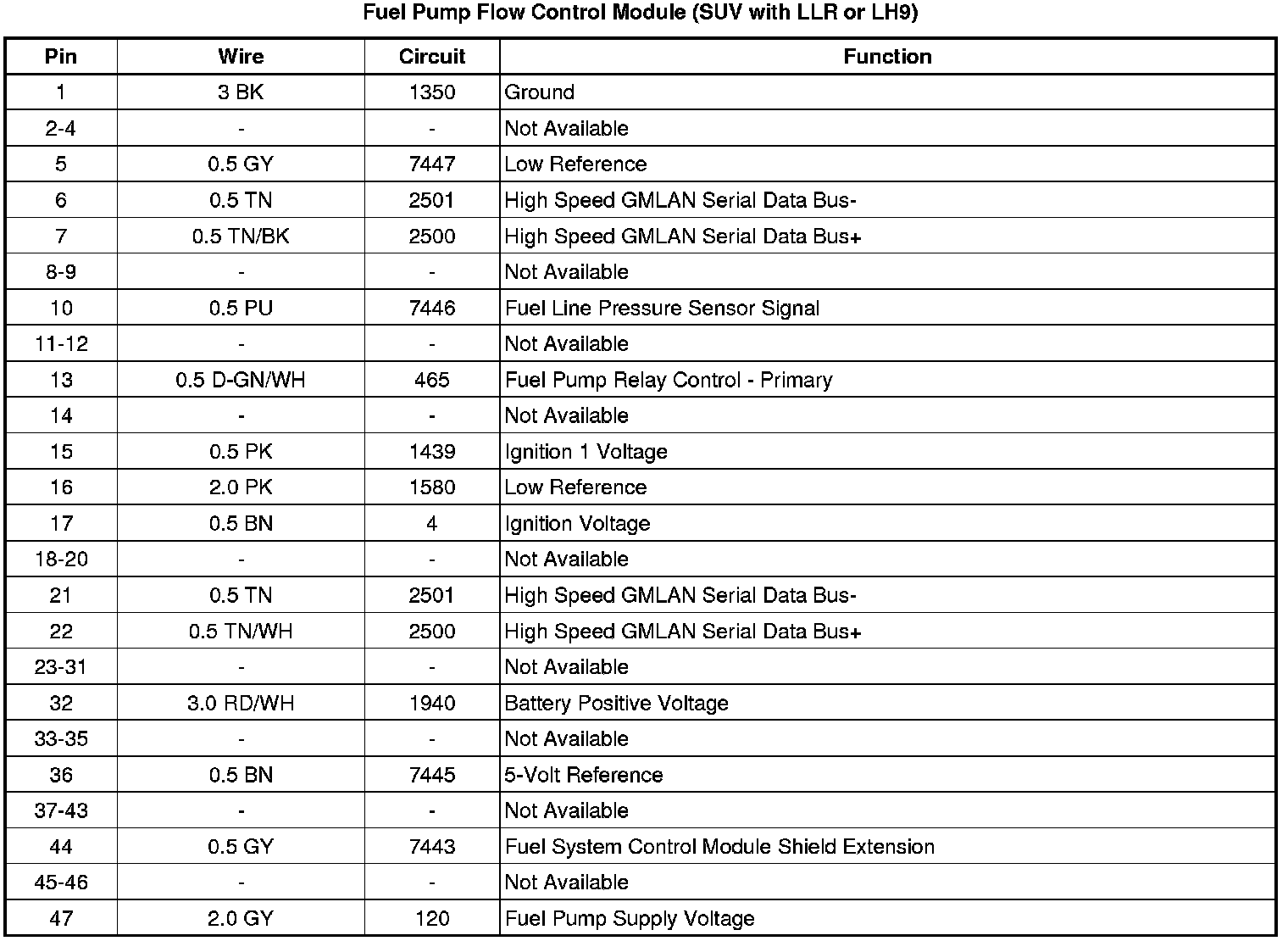

Fuel Pump Flow Control Module (SUV with LLR or LH9)

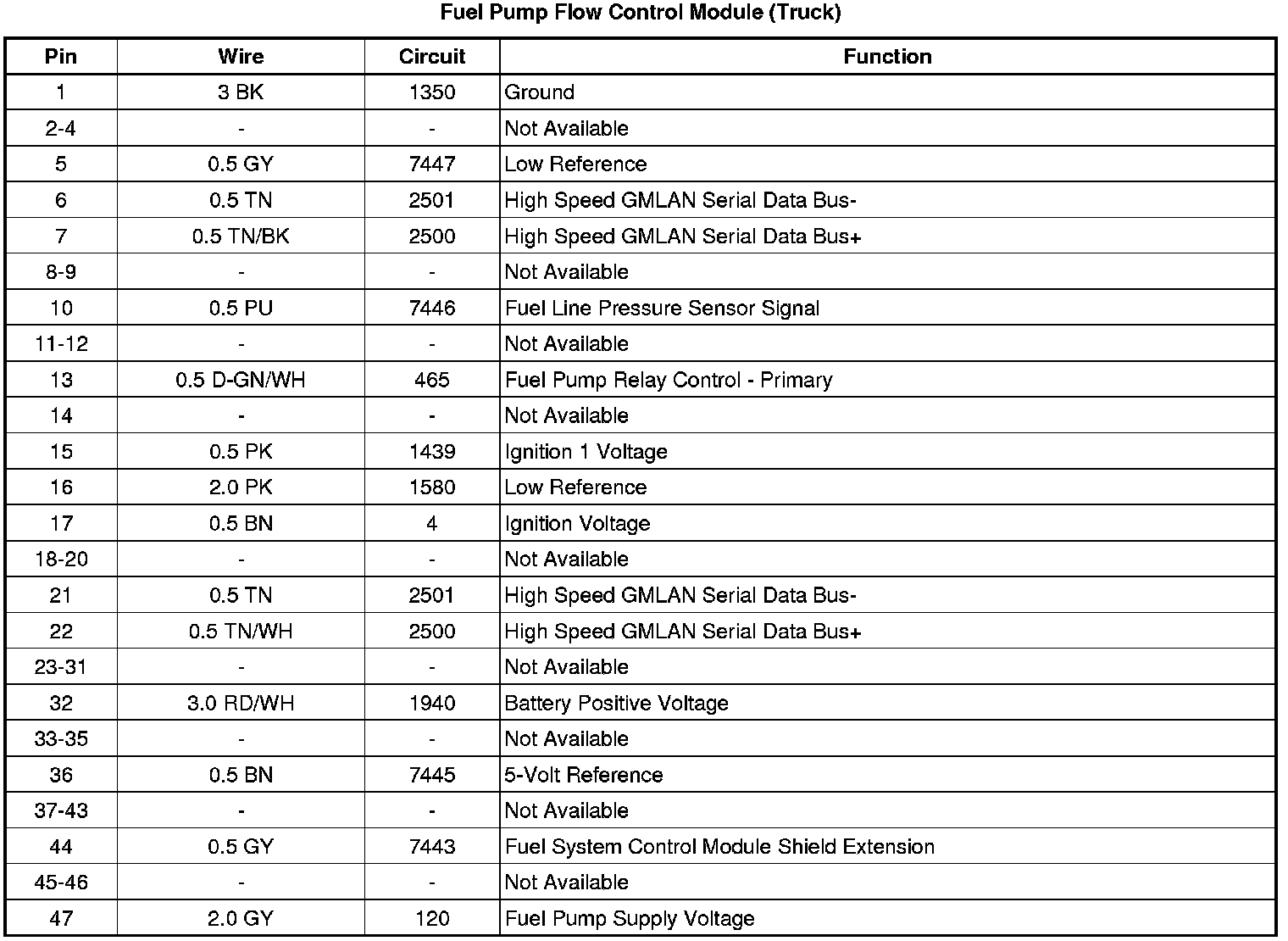

Fuel Pump Flow Control Module (Truck)
