Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1 (LH9)





Ignition Coil 1 (LLR)





Ignition Coil 2 (LH9)





Ignition Coil 2 (LLR)

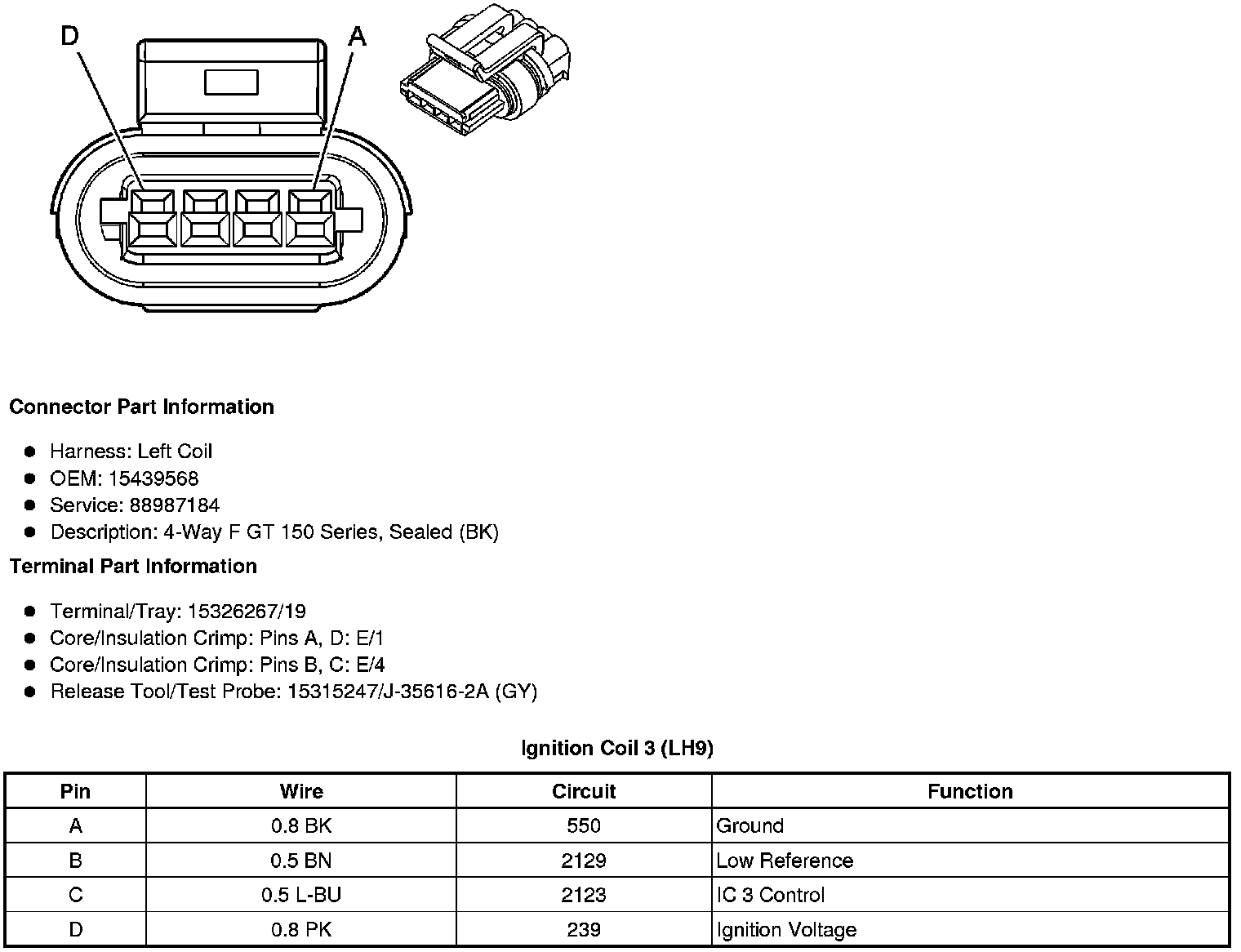

Ignition Coil 3 (LH9)





Ignition Coil 3 (LLR)





Ignition Coil 4 (LH9)





Ignition Coil 4 (LLR)

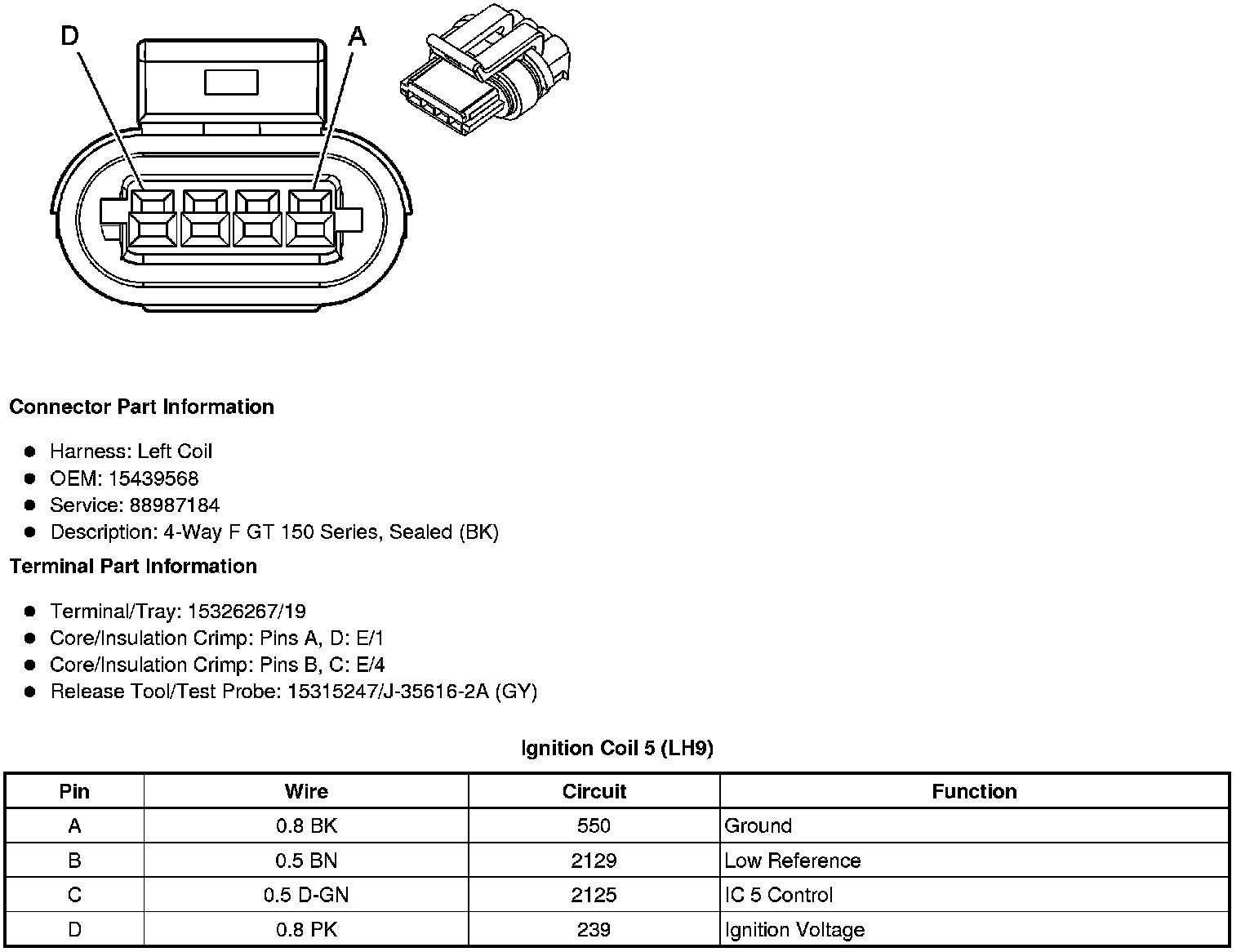

Ignition Coil 5 (LH9)





Ignition Coil 5 (LLR)

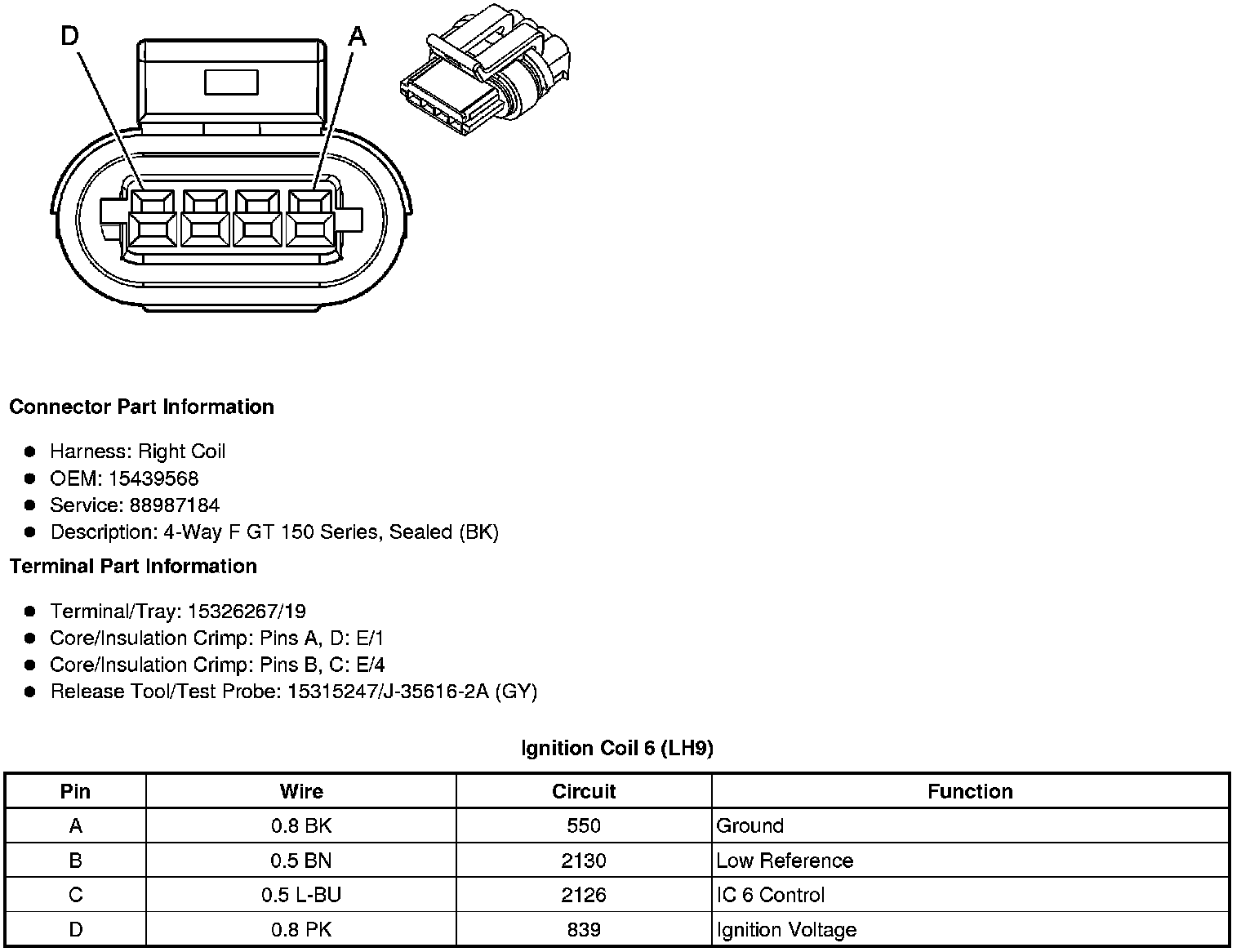

Ignition Coil 6 (LH9)





Ignition Coil 7 (LH9)





Ignition Coil 8 (LH9)
