Thread Repair Specifications




Thread Repair Specifications

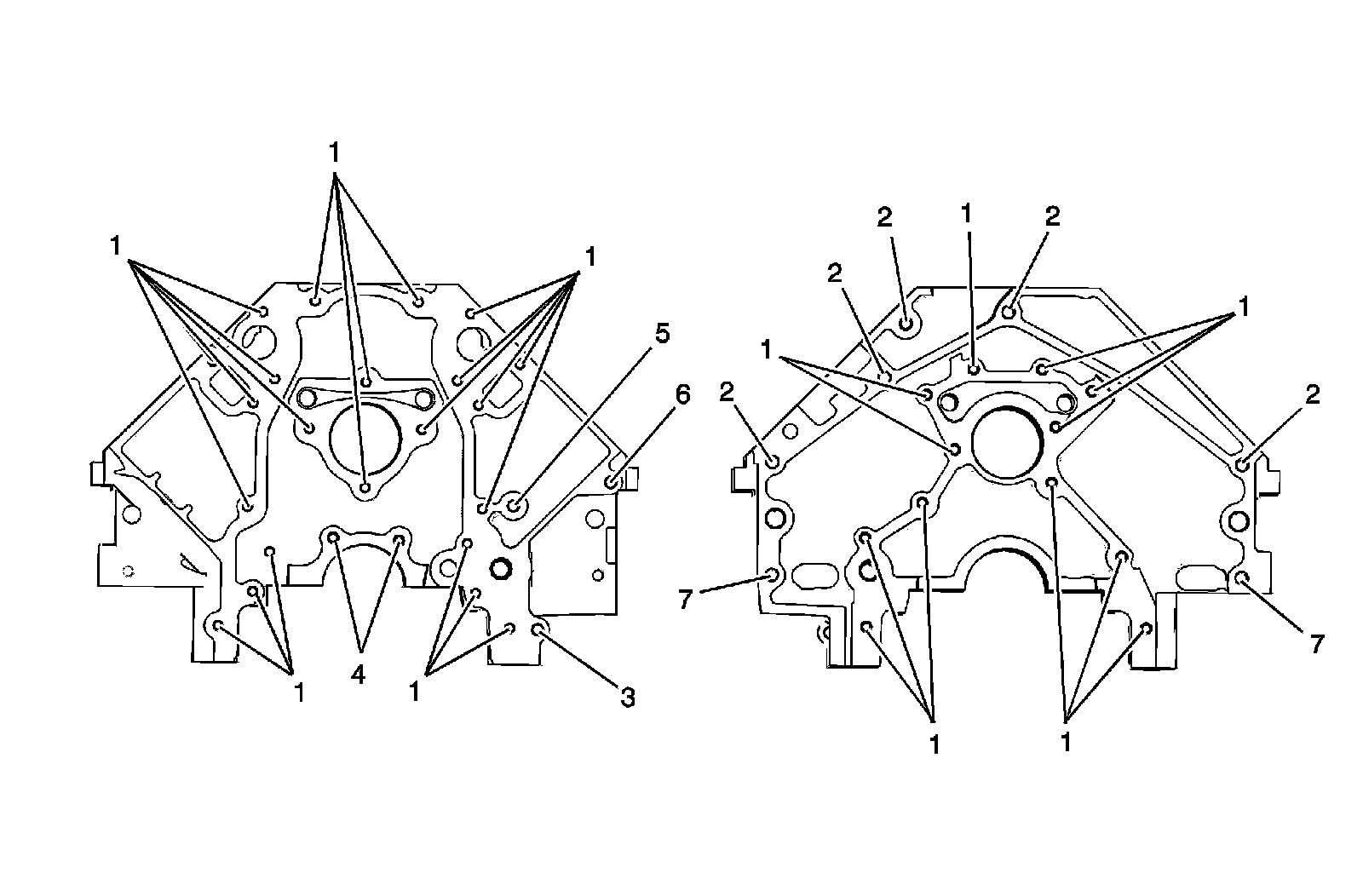

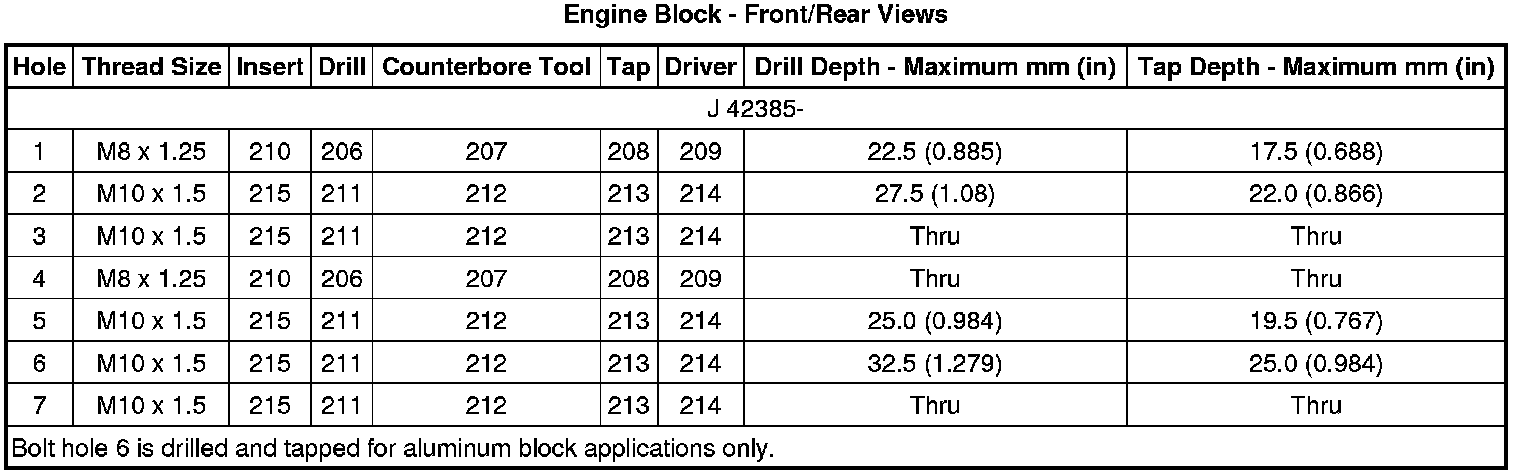

Engine Block - Front/Rear Views

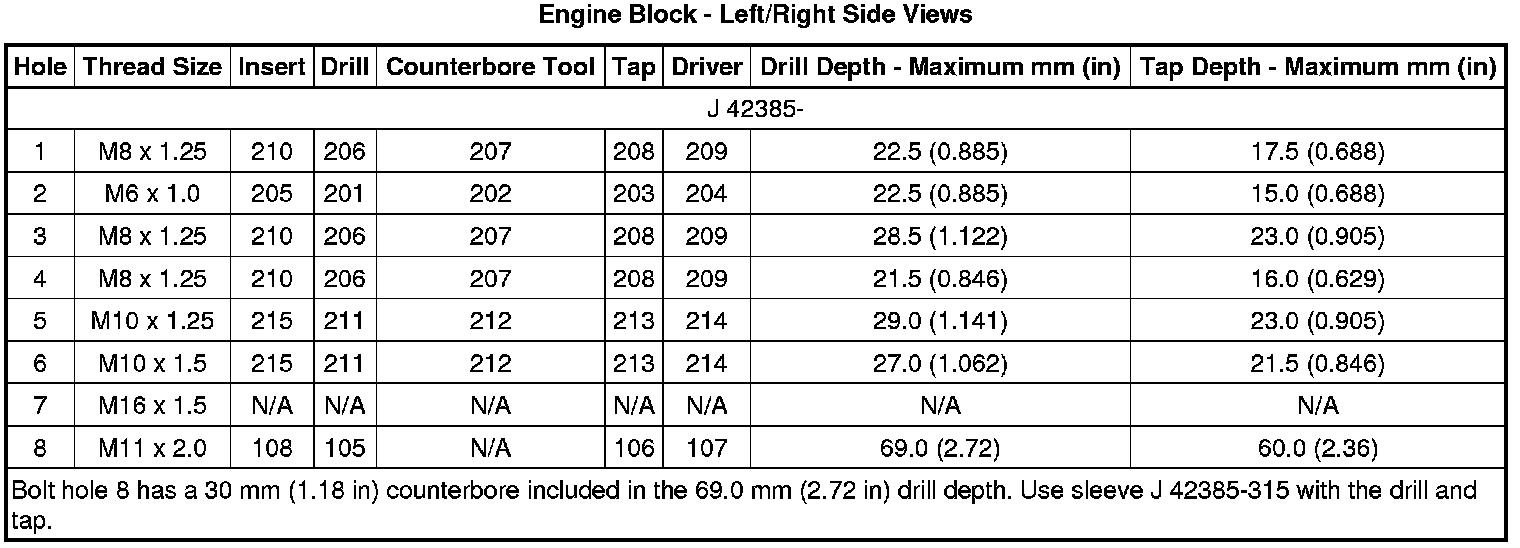

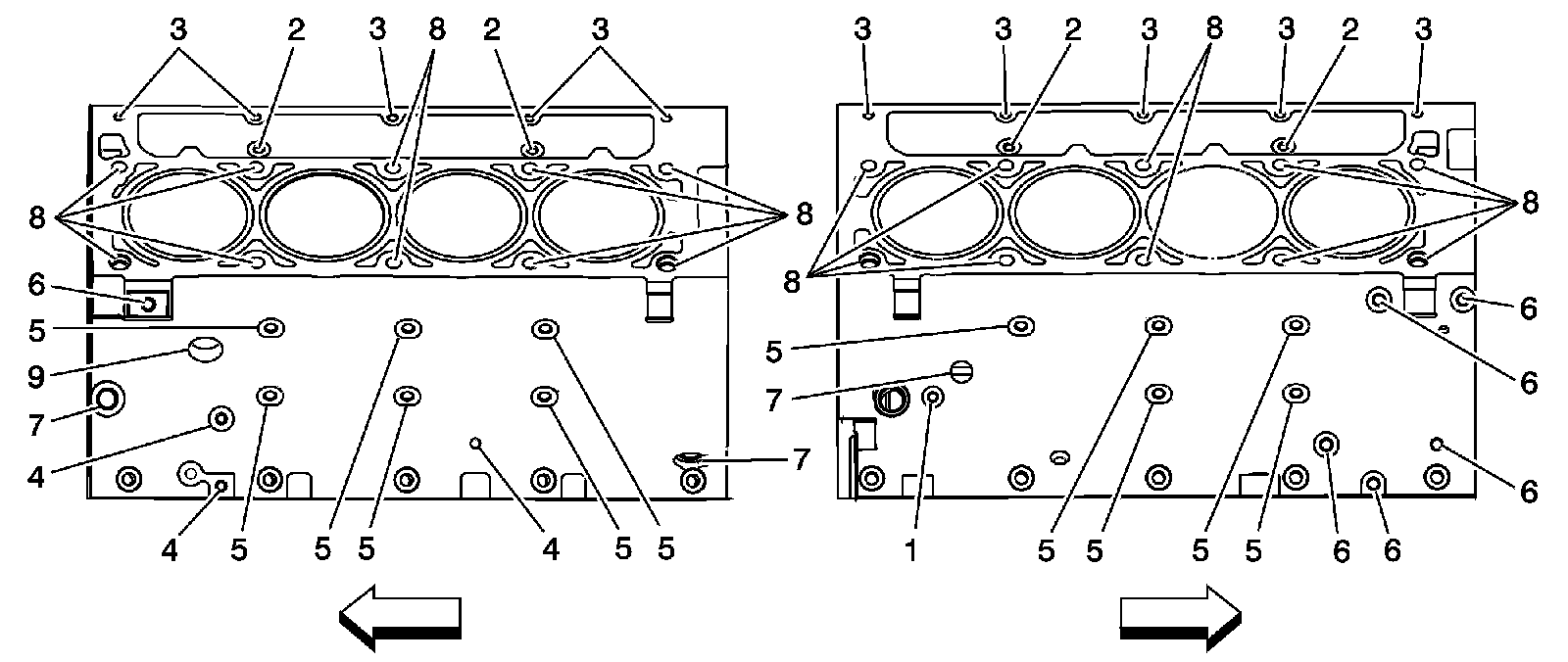

Engine Block - Left/Right Side Views

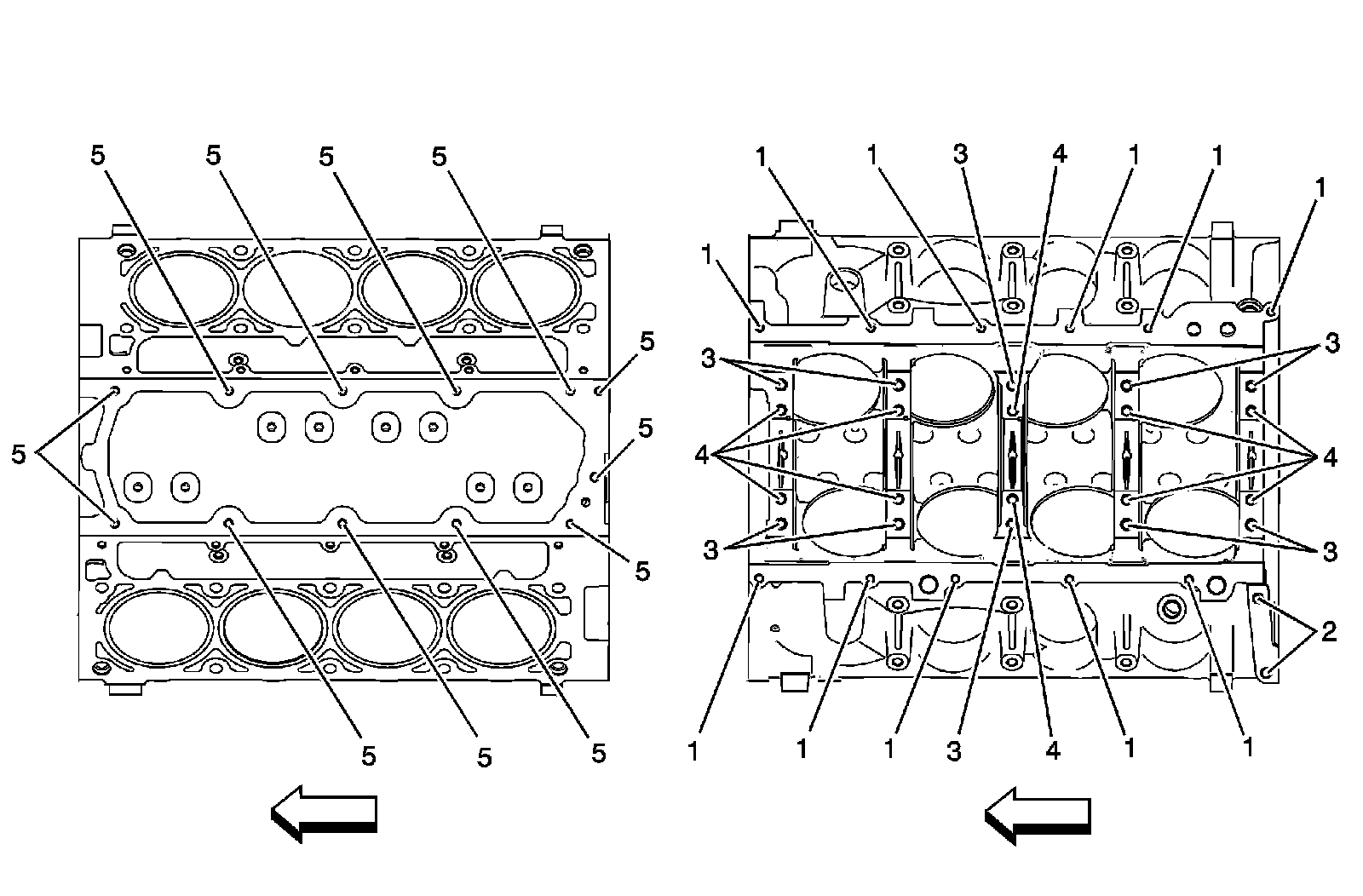

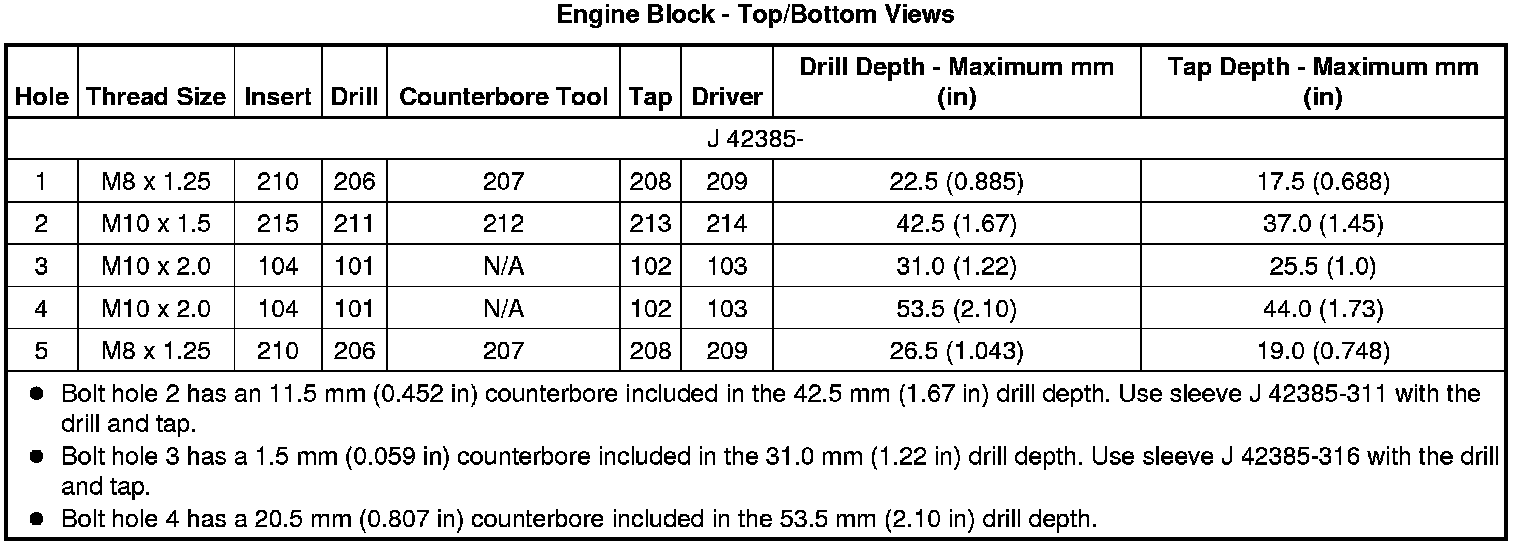

Engine Block - Top/Bottom Views

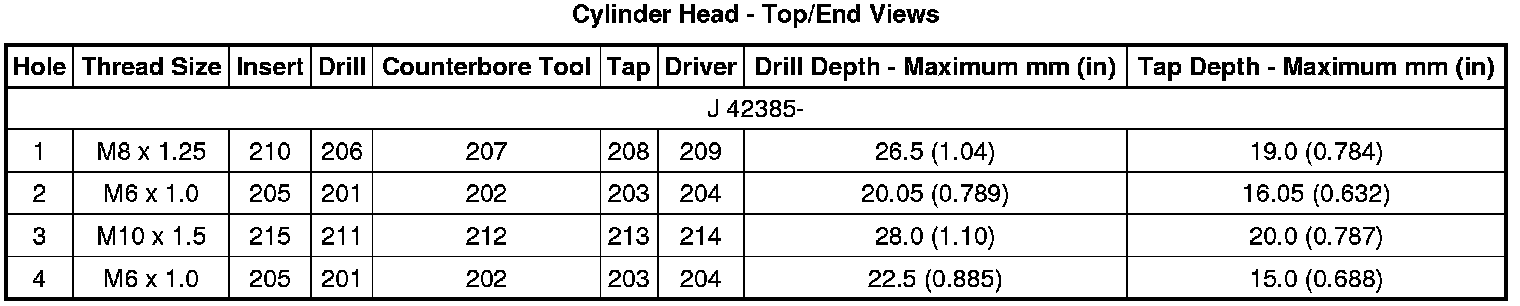

Cylinder Head - Top/End Views

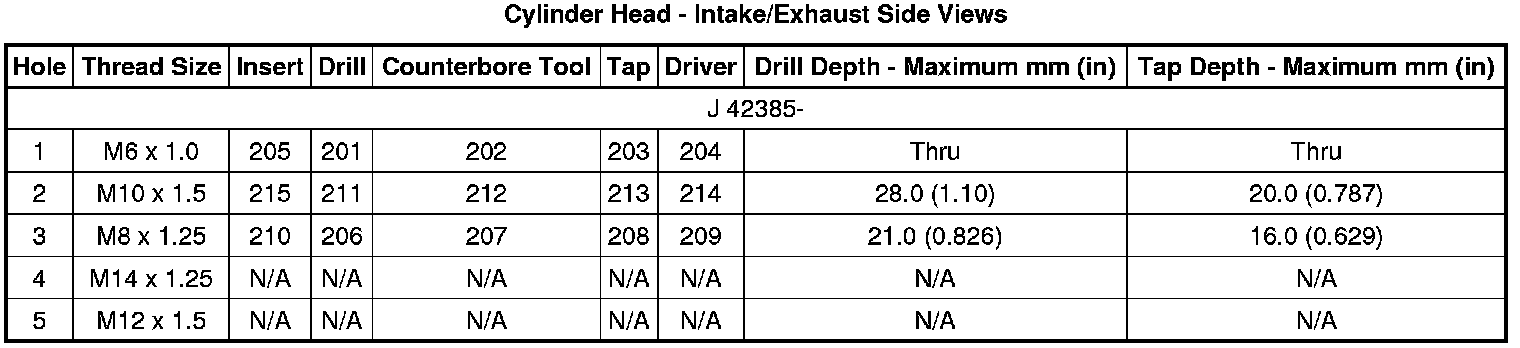

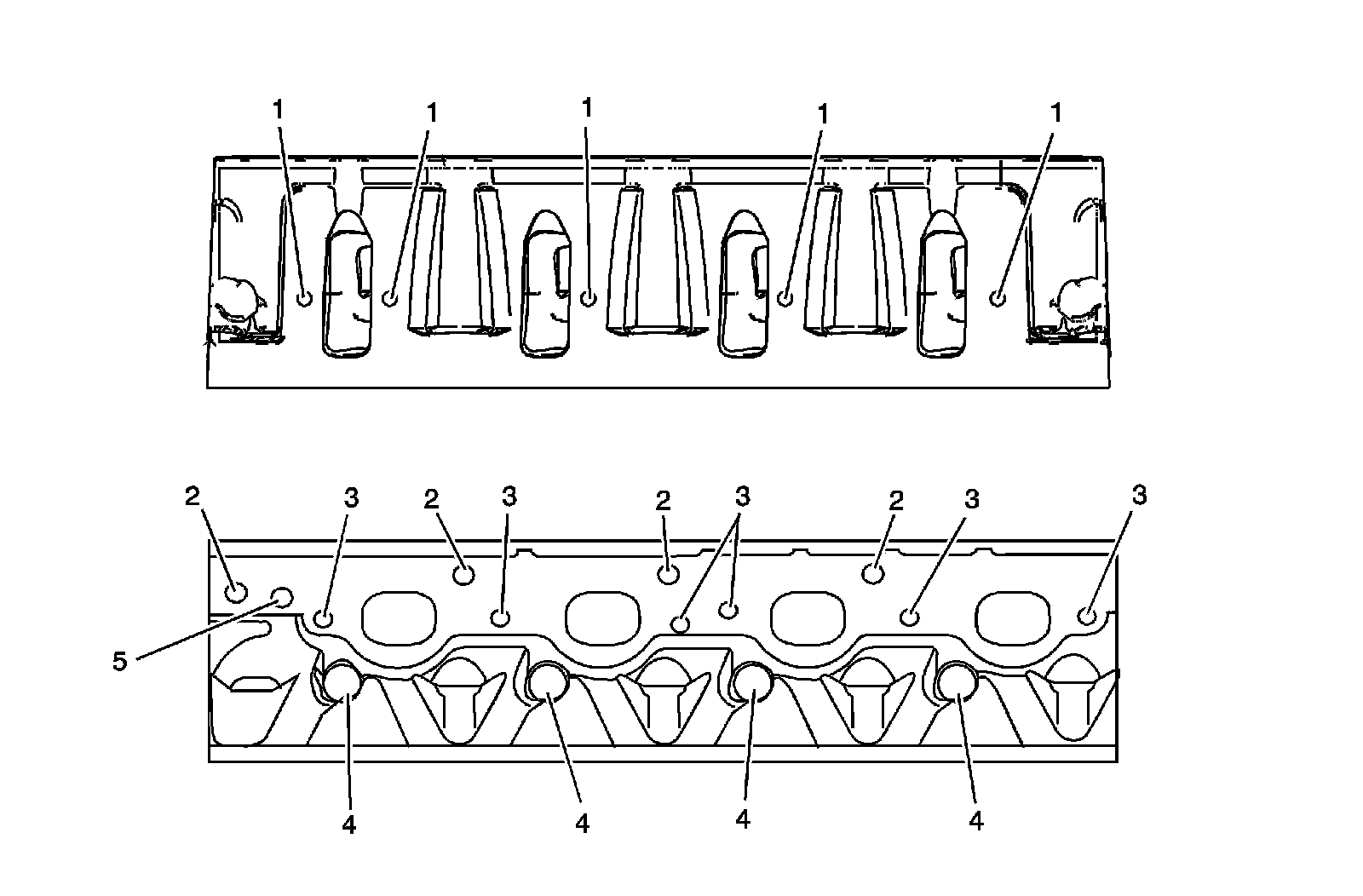

Cylinder Head - Intake/Exhaust Side Views
