Code Charts (Excel)

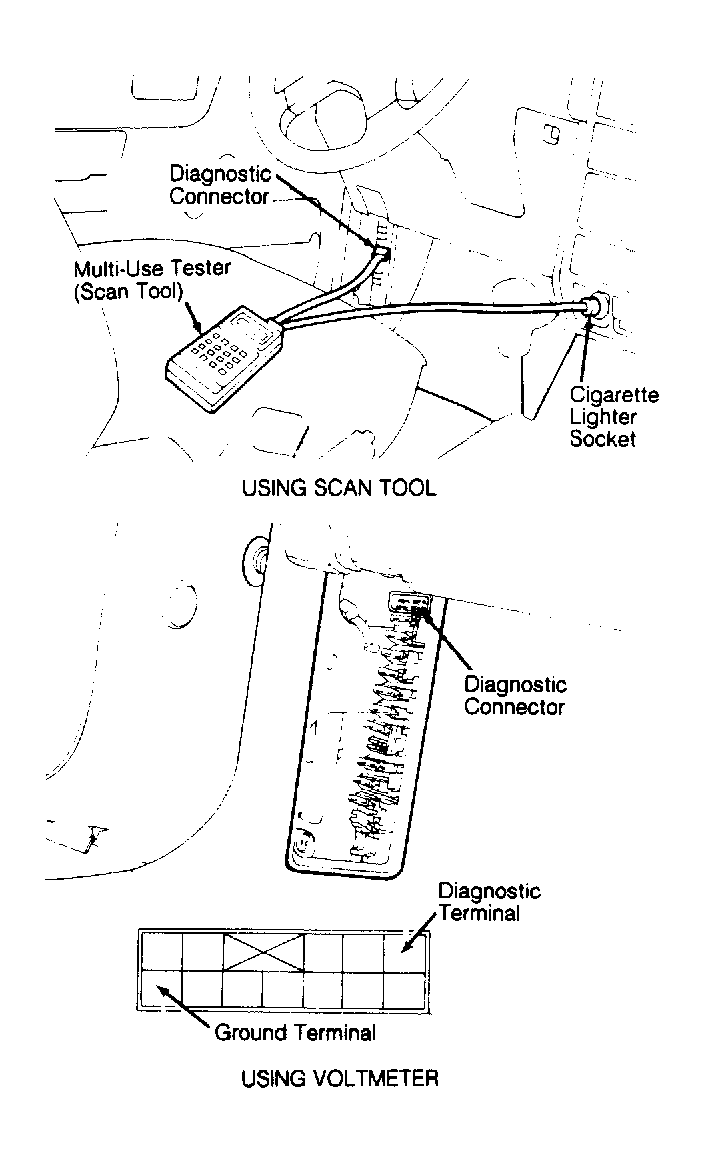

NOTE: A scan tool connected to diagnostic connector is required for the following charts. See Figure . Item No. indicates Scan Tool Code No.

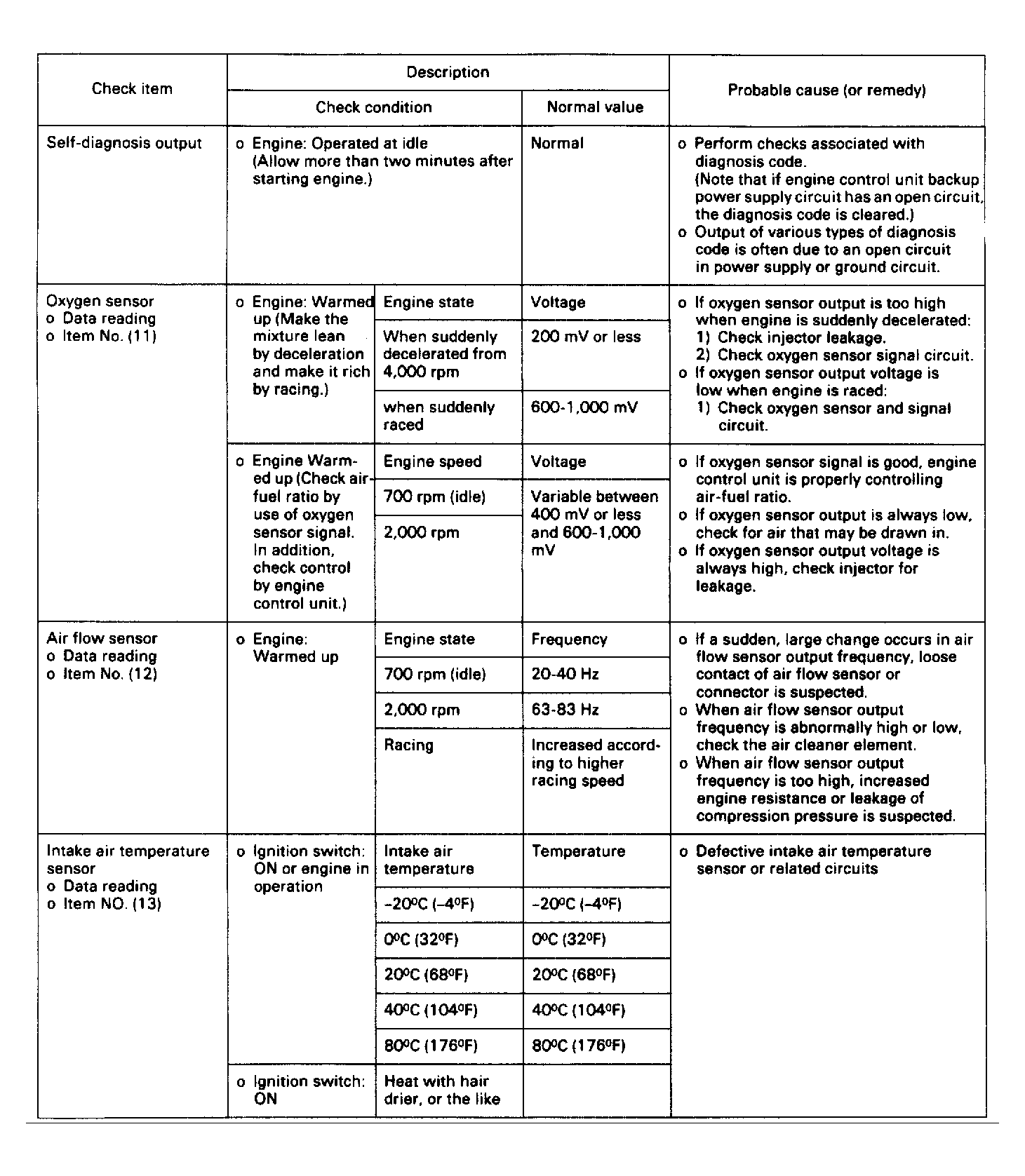

Fig 1: Excel Code Chart 1 of 5

Courtesy of HYUNDAI MOTOR CO.

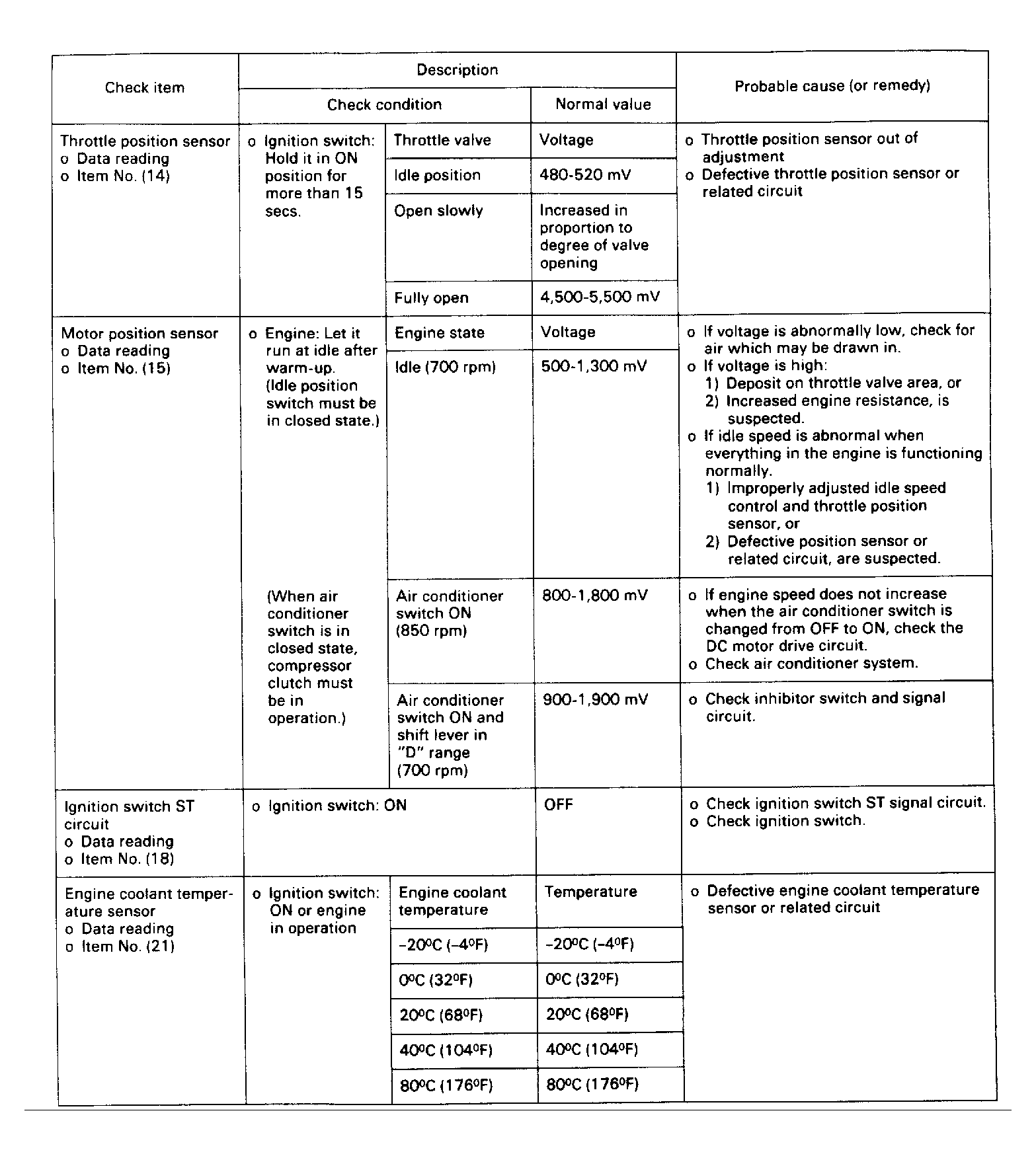

Fig 2: Excel Code Chart 2 of 5

Courtesy of HYUNDAI MOTOR CO.

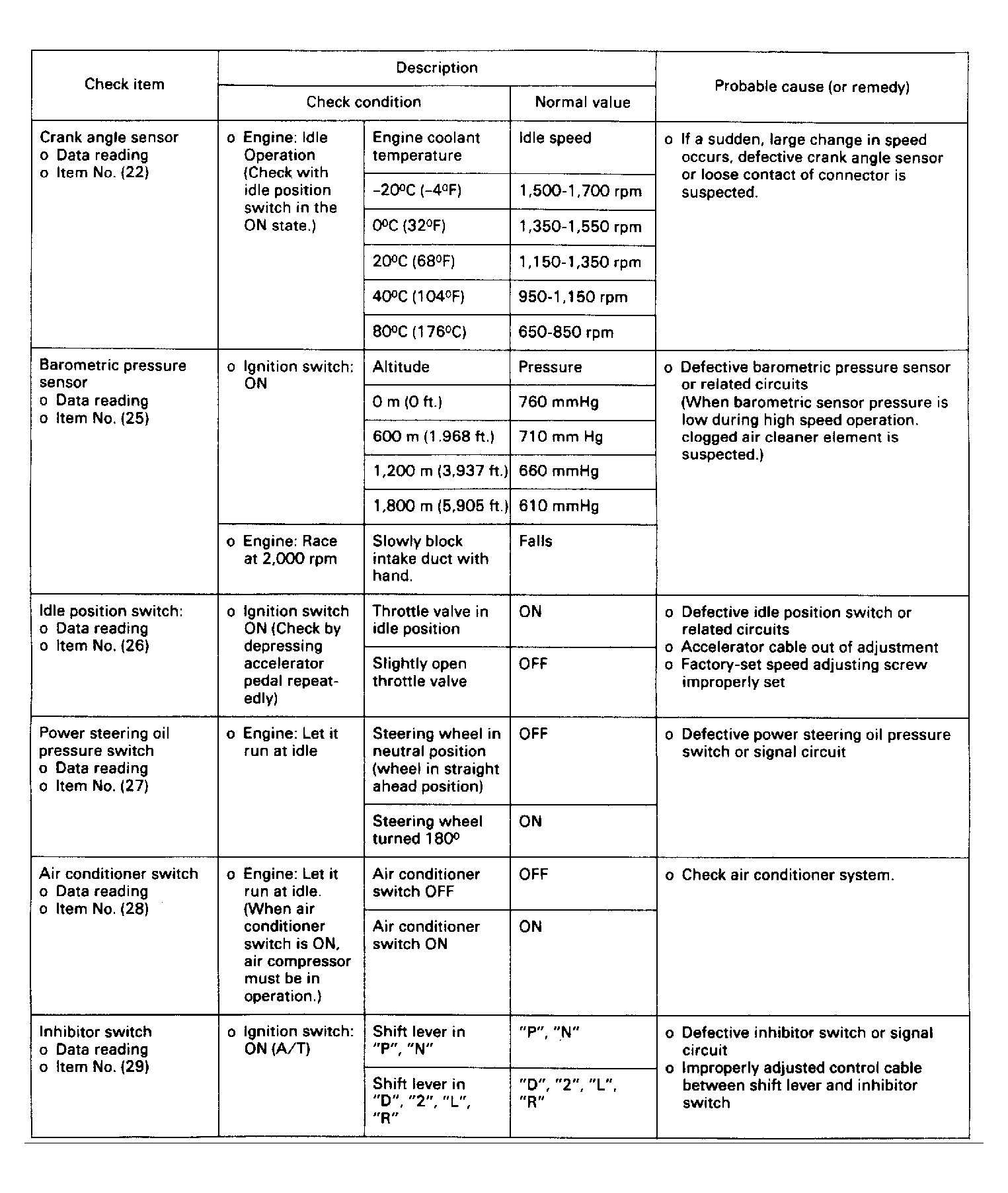

Fig 3: Excel Code Chart 3 of 5

Courtesy of HYUNDAI MOTOR CO.

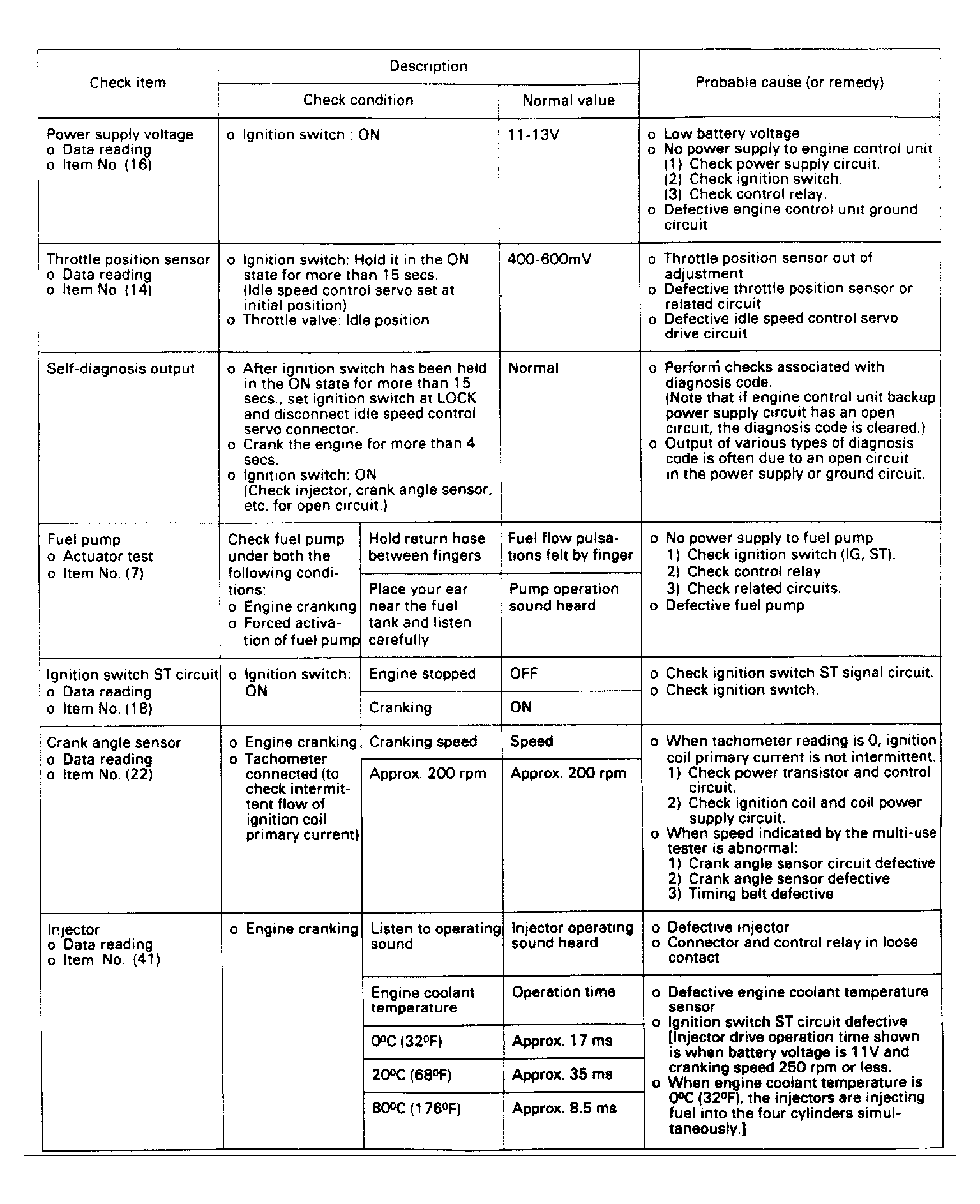

Fig 4: Excel Code Chart 4 of 5

Courtesy of HYUNDAI MOTOR CO.

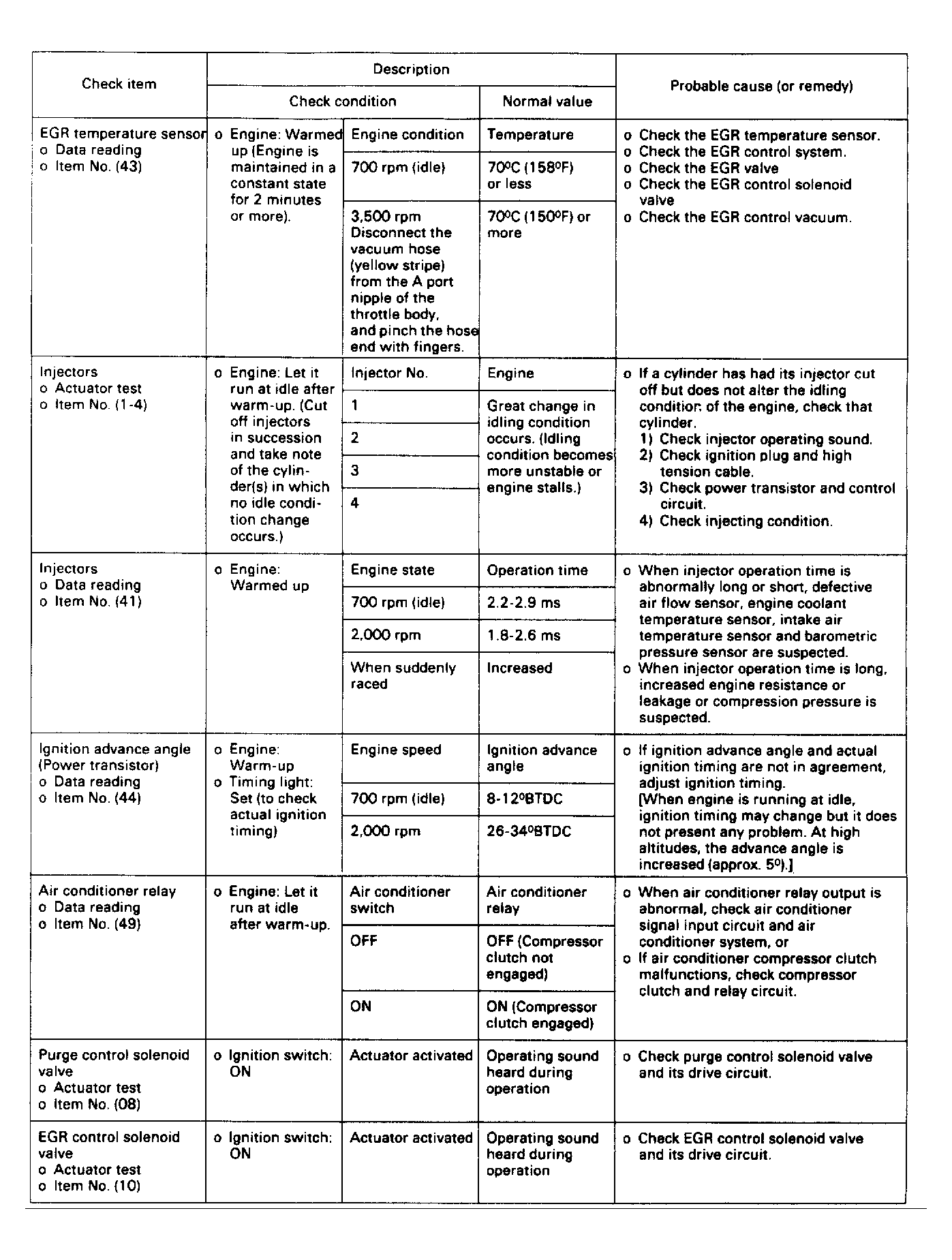

Fig 5: Excel Code Chart 5 of 5

Courtesy of HYUNDAI MOTOR CO.
