Firing Order & Timing Marks: Notes

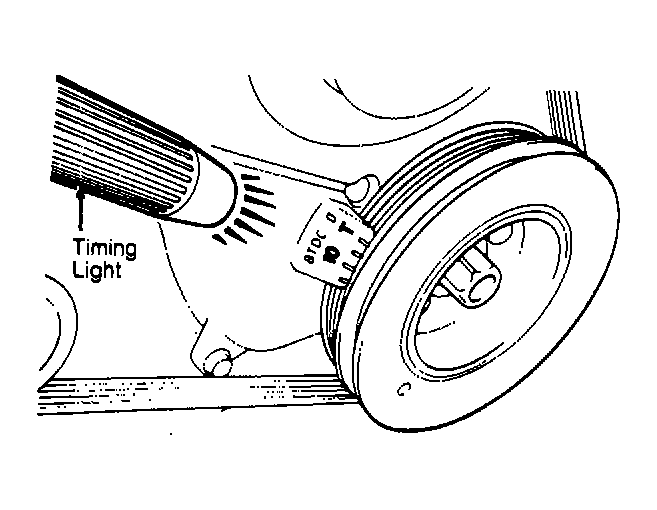

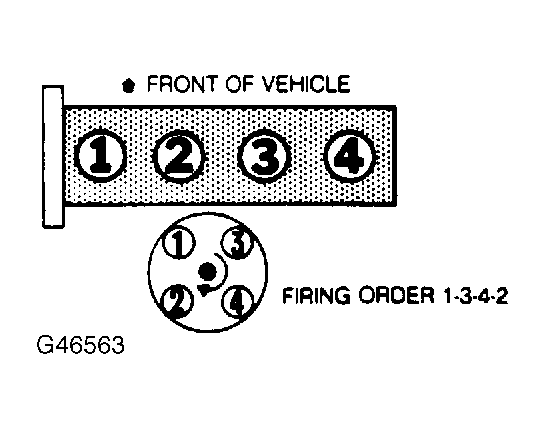

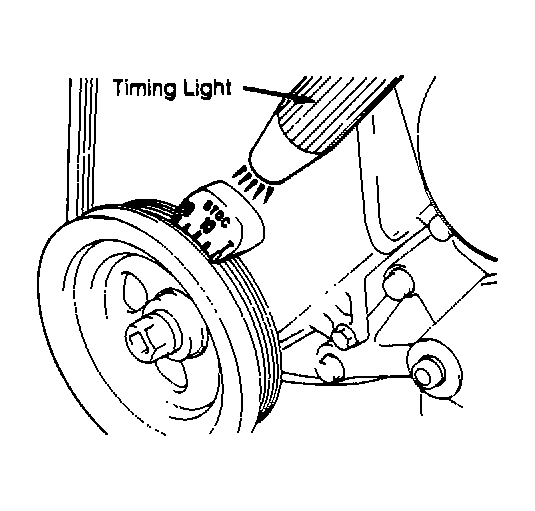

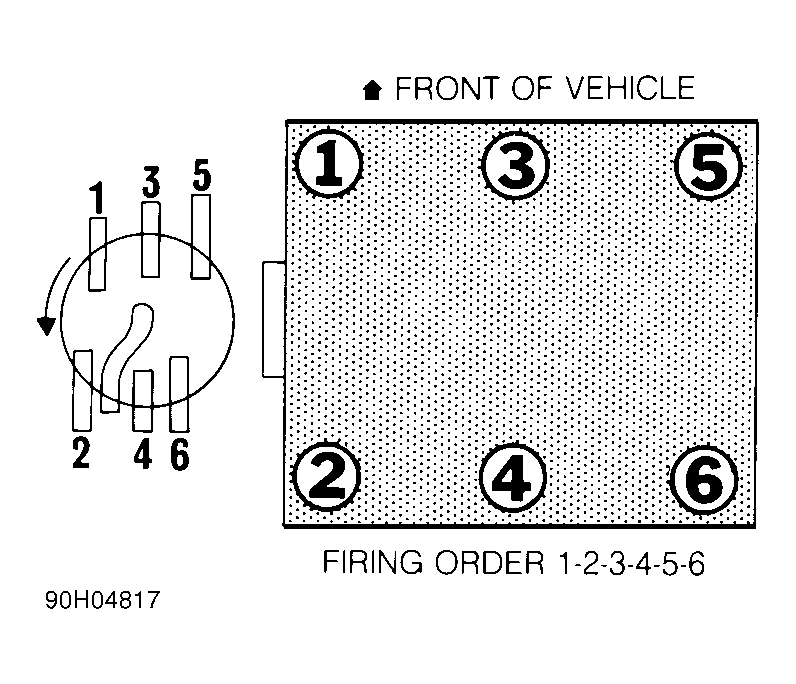

NOTE: For firing order, see Figure-Figure . To locate timing marks, see Figure or Figure .
