Code Charts (ELANTRA)

NOTE: A scan tool connected to diagnostic connector is required for following charts. See Figure . ITEM NO. in charts refers to trouble code. Also see DIAGNOSTIC CODE table for probable cause of malfunction.

Fig 1: Code Charts (Elantra-Item No. 7, 8, 10, 11 & 12)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Code Charts (Elantra-Item No. 13, 14, 16, 18 & 21)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Code Charts (Elantra-Item No. 22, 25, 26, 27 & 28)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Code Charts (Elantra-Item No. 29, 41, 01-04, 43 & 44)

Courtesy of HYUNDAI MOTOR CO.

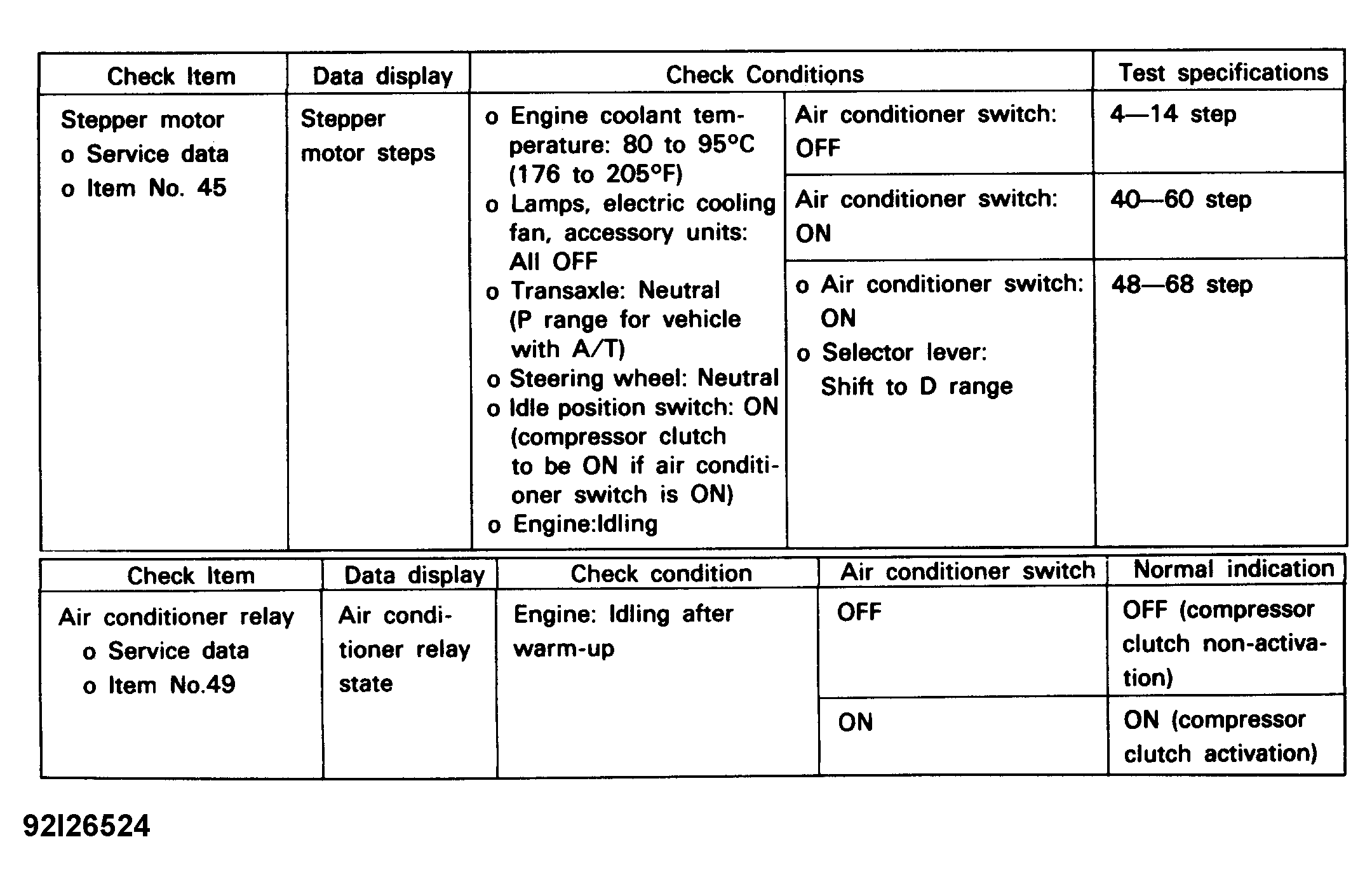

Fig 5: Code Charts (Elantra-Item No. 45 & 49)

Courtesy of HYUNDAI MOTOR CO.
