Throttle Position Sensor (TPS)

NOTE: Unless stated otherwise in test procedure, perform all tests using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance and/or a Multi-Use Tester (09391-33002 ).

THROTTLE POSITION SENSOR (TPS) RESISTANCE TEST

Throttle Position

Specification

Closed ⁽¹⁾

3500-6500 Ohms

Slowly Open To WOT ⁽²⁾

450-550 To 4500-5500 mV

⁽¹⁾	On 1.5L, 1.6L and 2.0L, measure between terminals No. 1 (ground) and No. 4 (power). On 3.0L, measure between terminals No. 2 (ground) and No. 3 (power). See Fig 1 and Fig 2 .

⁽²⁾	On 1.5L, 1.6L and 2.0L, measure between terminals No. 1 and 3 (output). On 3.0L, measure between terminals No. 2 and 4 (output).

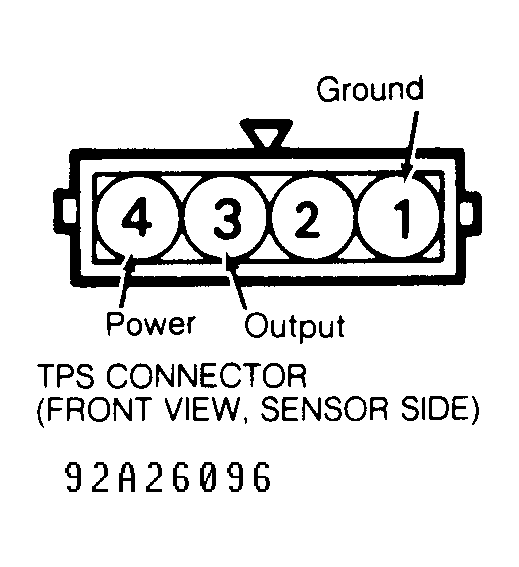

Fig 1: TPS Connector Terminal ID (1.5L, 1.6L & 2.0L)

Courtesy of HYUNDAI MOTOR CO.

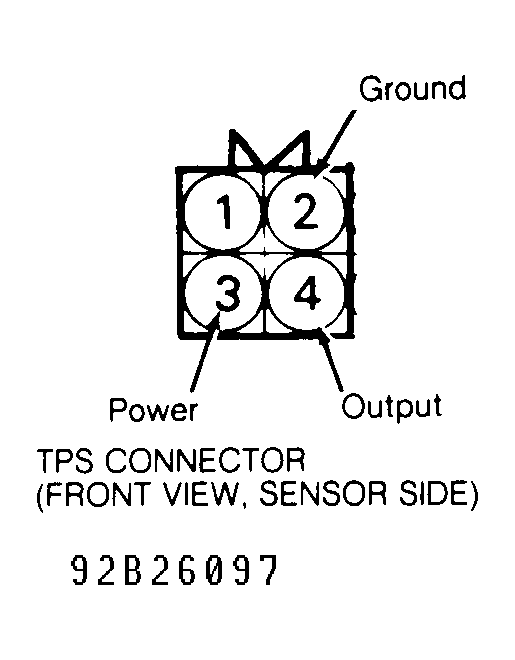

Fig 2: TPS Connector Terminal ID (3.0L)

Courtesy of HYUNDAI MOTOR CO.

NOTE: For additional connector terminal identification, see I - SYS/COMP TESTS article in the ENGINE PERFORMANCE Section.
