Code Charts (Sonata 3.0L)

NOTE: A scan tool connected to diagnostic connector is required for following charts. See Figure . ITEM NO. in charts refers to trouble code. Also see DIAGNOSTIC CODE table for probable cause of malfunction.
Fig 1: Code Charts (Sonata 3.0L-Item No. 8, 11, 12 & 13)
G92B26535Courtesy of HYUNDAI MOTOR CO.
Fig 2: Code Charts (Sonata 3.0L-Item No. 14, 16, 21, 22 & 25)
G92C26536Courtesy of HYUNDAI MOTOR CO.
Fig 3: Code Charts (Sonata 3.0L-Item No. 26, 41, 01-06 & 43)
G92D26537Courtesy of HYUNDAI MOTOR CO.

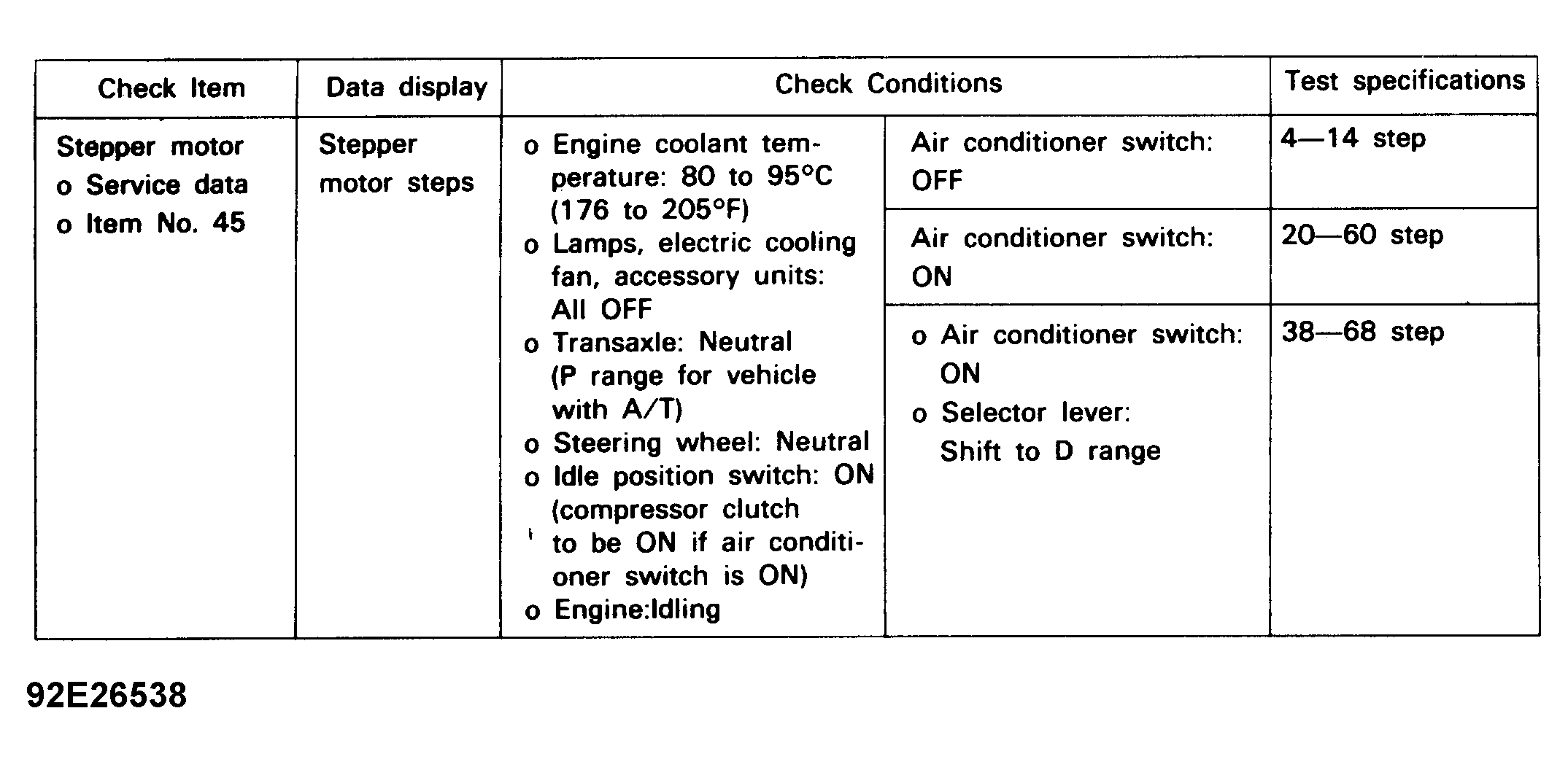

Fig 4: Code Charts (Sonata 3.0L-Item No. 45)
G92E26538Courtesy of HYUNDAI MOTOR CO.
