Power Circuits

Turn ignition on. Check for battery voltage at ECM power terminals. See POWER TERMINAL IDENTIFICATION table. If battery voltage is not present, check operation of MPI control relay. See RELAYS.

GROUND TERMINAL IDENTIFICATION

Application

⁽¹⁾ ECM Terminal No.

Elantra, Excel (Fed.) & Sonata

⁽²⁾ 5 & 10

Excel (CA)

⁽³⁾ 11 & 14

Scoupe

⁽¹⁾	See Figure -Fig 3 .

⁽²⁾	10-pin connector.

⁽³⁾	26-pin connector.

POWER TERMINAL IDENTIFICATION

Application

⁽¹⁾ ECM Terminal No.

Elantra

⁽²⁾ 12 & 15

Excel

⁽³⁾ 4 & 9

Scoupe

18 & ⁽⁴⁾ 42

Sonata

⁽⁵⁾ 16 & 17

⁽¹⁾	See Figure -Fig 4 .

⁽²⁾	18-pin connector.

⁽³⁾	26-pin connector on California models, 10-pin connector on Federal models.

⁽⁴⁾	Manual transmission only.

⁽⁵⁾	10-pin connector.

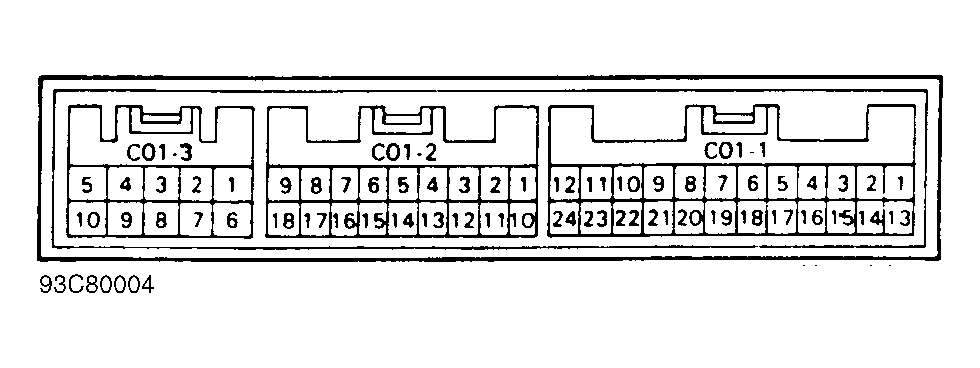

Fig 1: ECM Harness Connector ID (Elantra & Sonata 4-Cylinder)

Courtesy of HYUNDAI MOTOR CO.

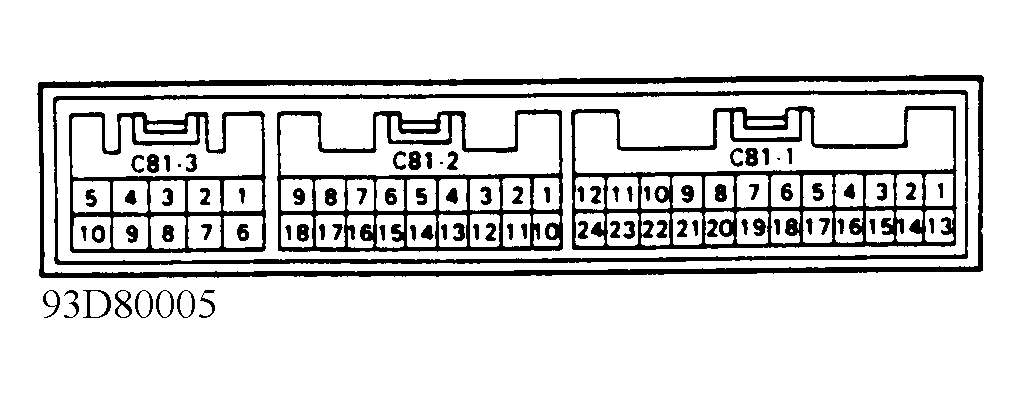

Fig 2: ECM Harness Connector ID (California Excel)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: ECM Harness Connector ID (Federal Excel)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying ECM Harness Connector (Sonata V6)

Courtesy of HYUNDAI MOTOR CO.
