Intake Air Temperature Sensor Inspection

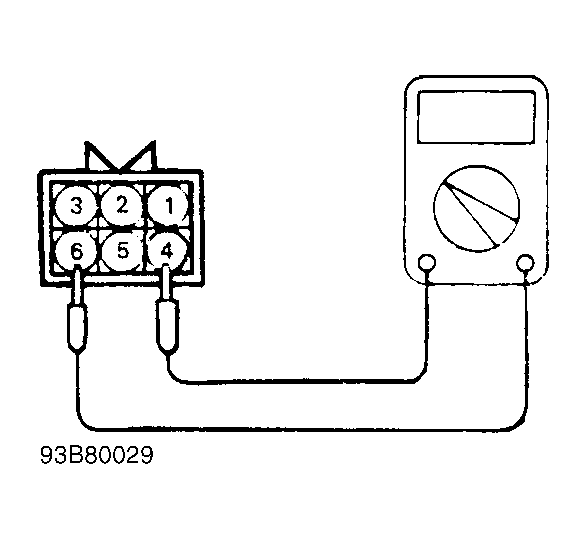

Check resistance between component connector terminals No. 4 and 6. See Fig 1 . See INTAKE AIR TEMPERATURE SENSOR RESISTANCE table. Replace airflow sensor if temperature sensor is not within specifications.
INTAKE AIR TEMPERATURE SENSOR RESISTANCE
| Air Temperature °F (°C) | Ohms |
|---|---|
| 32 (0) | 600 |
| 68 (20) | 270 |
| 176 (80) | 40 |
